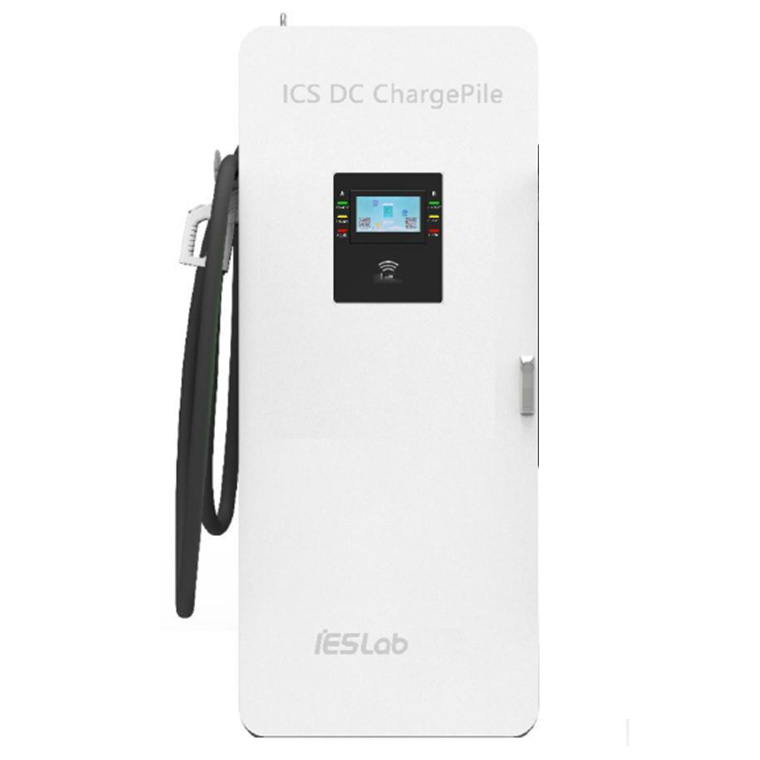

IES Lab ICS series iES-ICS6260E-1 EV Charger,DC Fast,60KW, with 1 x CCS Type 2/GBT standard EV charging. IP55,
Out of stock
IES Lab ICS series iES-ICS6260E-1 EV Charger,DC Fast,60KW, with 1 x CCS Type 2/GBT standard EV charging. IP55,
- Brand: IES Lab
- MPN: iES-ICS6260E-1
- Part #: IPCIESICS003
- UPC:
- Brand: IES Lab
- MPN: iES-ICS6260E-1
- Part #: IPCIESICS003
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Other Accessories
IES Lab ICS series iES-ICS6260E-1 EV Charger,DC Fast,60KW, with 1 x CCS Type 2/GBT standard EV charging. IP55,
- Brand: IES Lab
- MPN: iES-ICS6260E-1
- Part #: IPCIESICS003
Product URL: https://www.pbtech.co.nz/product/IPCIESICS003/IES-Lab-ICS-series-iES-ICS6260E-1-EV-ChargerDC-Fas
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
Introduction
iES-ICS6260E Fast DC charger is specially designed for high protection and high
reliability applications with CCS standard EV charging. Integrated design with IP55 standard
for harsh environment applications. User friendly interface. Easily configure the power from
60 to 180kW, and compatible with the voltage from 200V to 1000V.
Main Features
- CCS1 or CCS2 support
- IP54 design with high protection and high reliability for harsh environment
- OCPP 1.6 J support

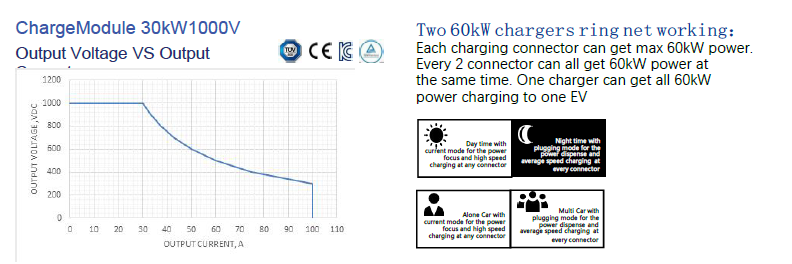

- Optional CoolRingTM function realize the power transfer between the two chargers which can get max 60kW in each charger
- Power can also transfer between the two DC connectors, and also can output at the same time for the two DC connectors
- Easily configure the output power from 30kW to 60kW, and compatible with the voltage from 200V to 1000V
- Full safety function with output contactor and fuse,EPO,SPD,RCD, leakage switch,insulation detector protection
- User friendly interface with 7" TFT touch screen LCD
- Multiple charging modes: Auto basis,Time basis,Amount basis,Energy basis,SOC basis
- Multiple power distribution modes: Stand alone,Current switch,Plug switch,Full hold,Master slave
- Internal high precision AC energy meter and DC energy meter
- LAN and optional LTE wireless support, RFID authorization and Mobile App payment support

Specifications
Input parameters
AC Frequency
45-65Hz
AC Voltage
3-phases+N+PE, 260Vac-530Vac
Power Factor
>0.99
Total harmonic current
<5% (Rated input )
Output parameters
DC Voltage accuracy
<±0.5%
Output DC voltage range
DC 200V-1000V
120A@500V/ 60A@1000V
Max DC output current
Each charging cable's max output current is 200A/CCS
Max DC output power
60kW
Max system efficiency
>96.0%(Rated input and output)
Working environment
Ambient temperature
-20 ~ +70°C , full power output below 45?,Power derating 5%/ ? above 45?
Storage temperature
-40 ~ +75°C
Working humidity
0 ~ 95%
Working altitude
2000 m
Standard
CCS PLC
DIN70121
communication
ISO15118
EMC/Safety
UL2202, CE, EN61000-6-3/EN61000-6-1 Class B ; EN 61851-1-2001/EN 61851-21-2001/EN
Protection Class
61851-22-2001 IP54/K10
Function and Interface
HMI
7" TFT Touch Screen LCD,RFID,Power(G) /Alarm(R) /2*Charging(Y) panel LED
Metering
2 DC energy meter , GB/T 50063-2008 and DL/T 5137-2008 standard
Monitor interface
OCPP 1.6J , LAN 10M/100M and optional inner LTE wireless modem support
Charging Mode
Auto basis,Time basis,Amount basis,Energy basis,SOC basis
Power Distribution Mode
Stand alone,Current switch,Plug switch,Full hold,Master slave
Mechanical
DimentionW * H * D mm)
750*800*1900mm
Weight(Kg)
100 +21 * N (N is the charger module configuration number)
Charging Protection
Charging Protection
Overcurrent protection, Short circuit protection, Overvoltage protection, Undervoltage protection
Insulation monitoring, Protect Earth connect monitoring
Reverse polarity protection, Overtemperature protection
RCD-A mian protection and RCD-B for AC connector protection
Configuration
Charger module configuration
2 power module slots,1000V30kW Charger power modules selection
Charging connector configuration
1 CCS, 200A/1000V for CCS
