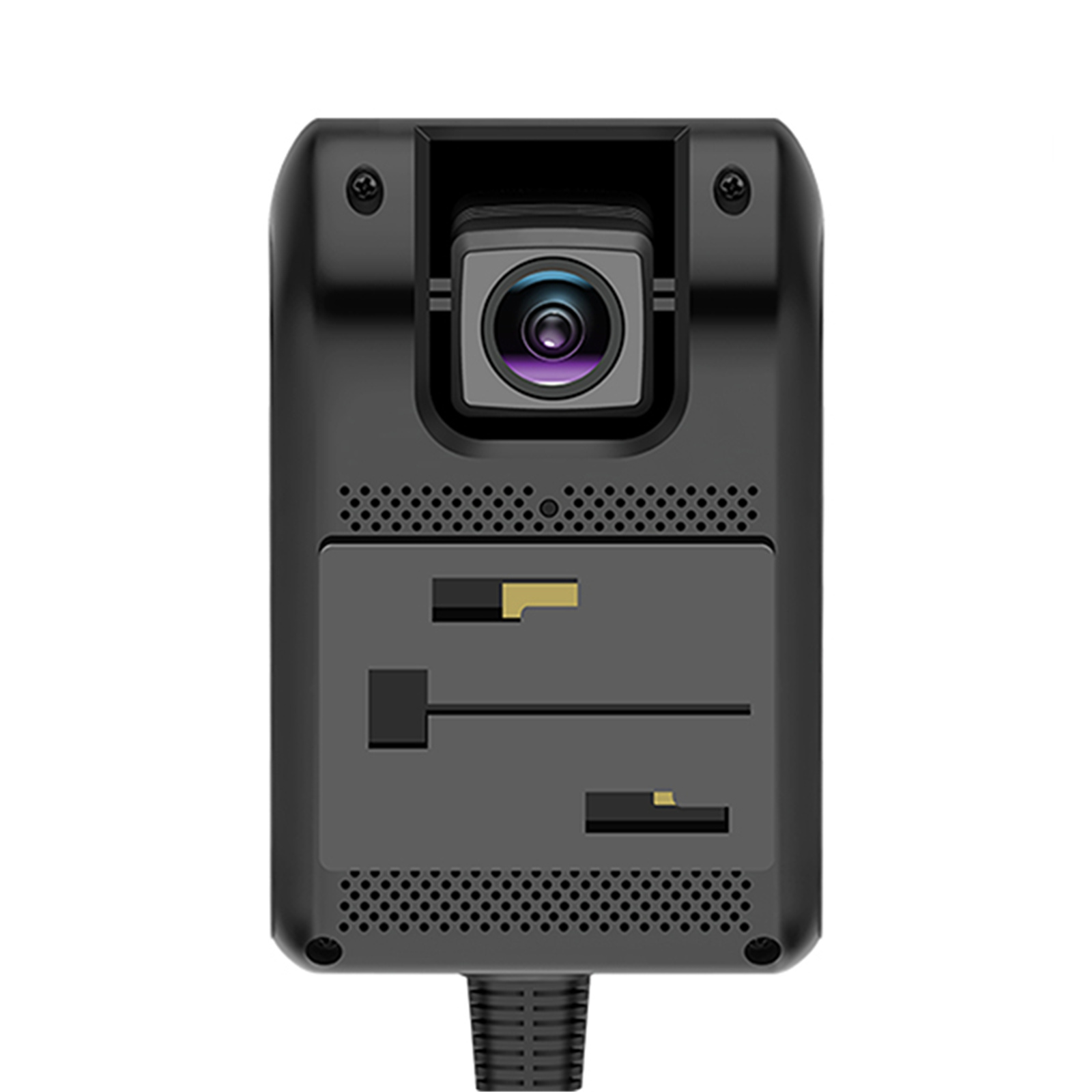

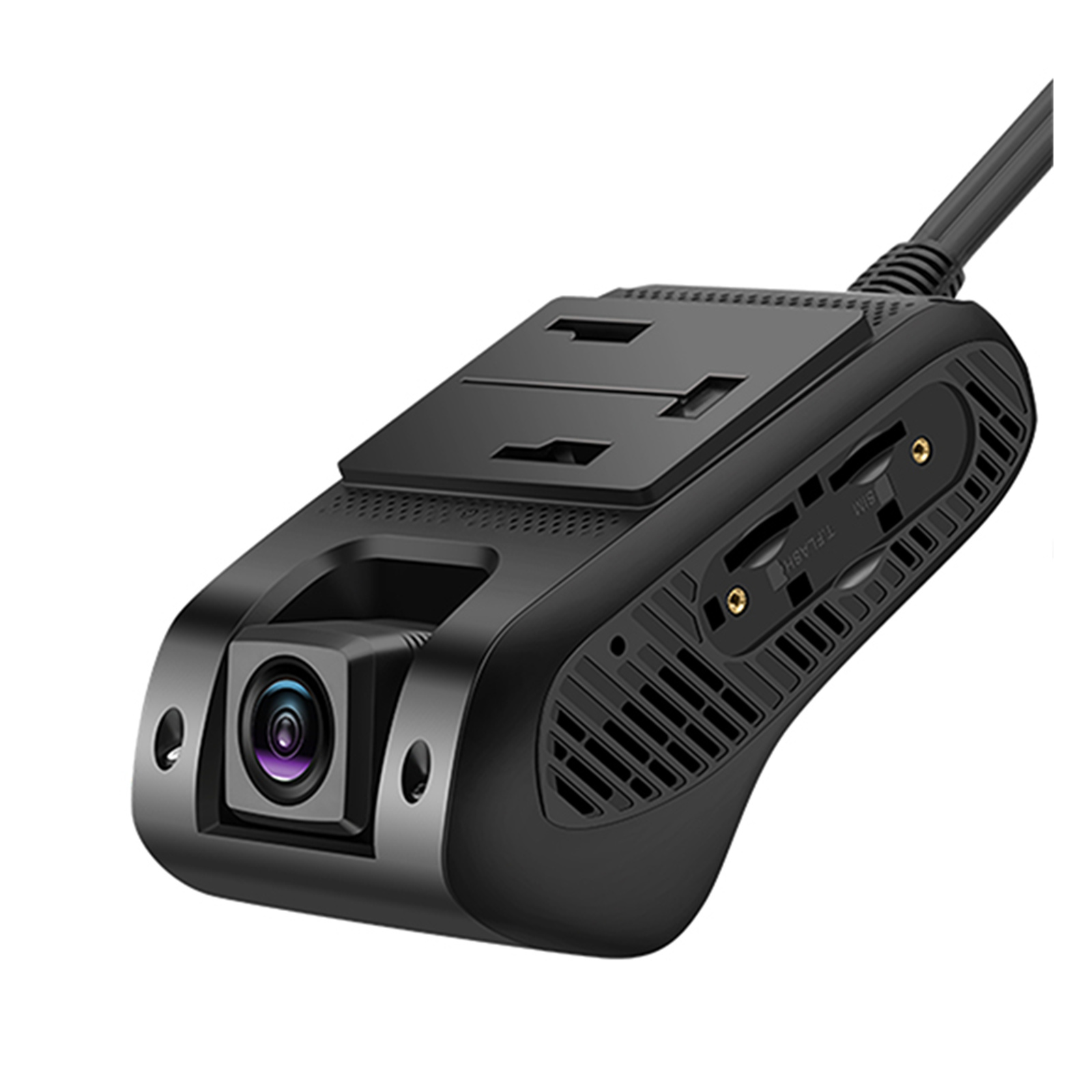

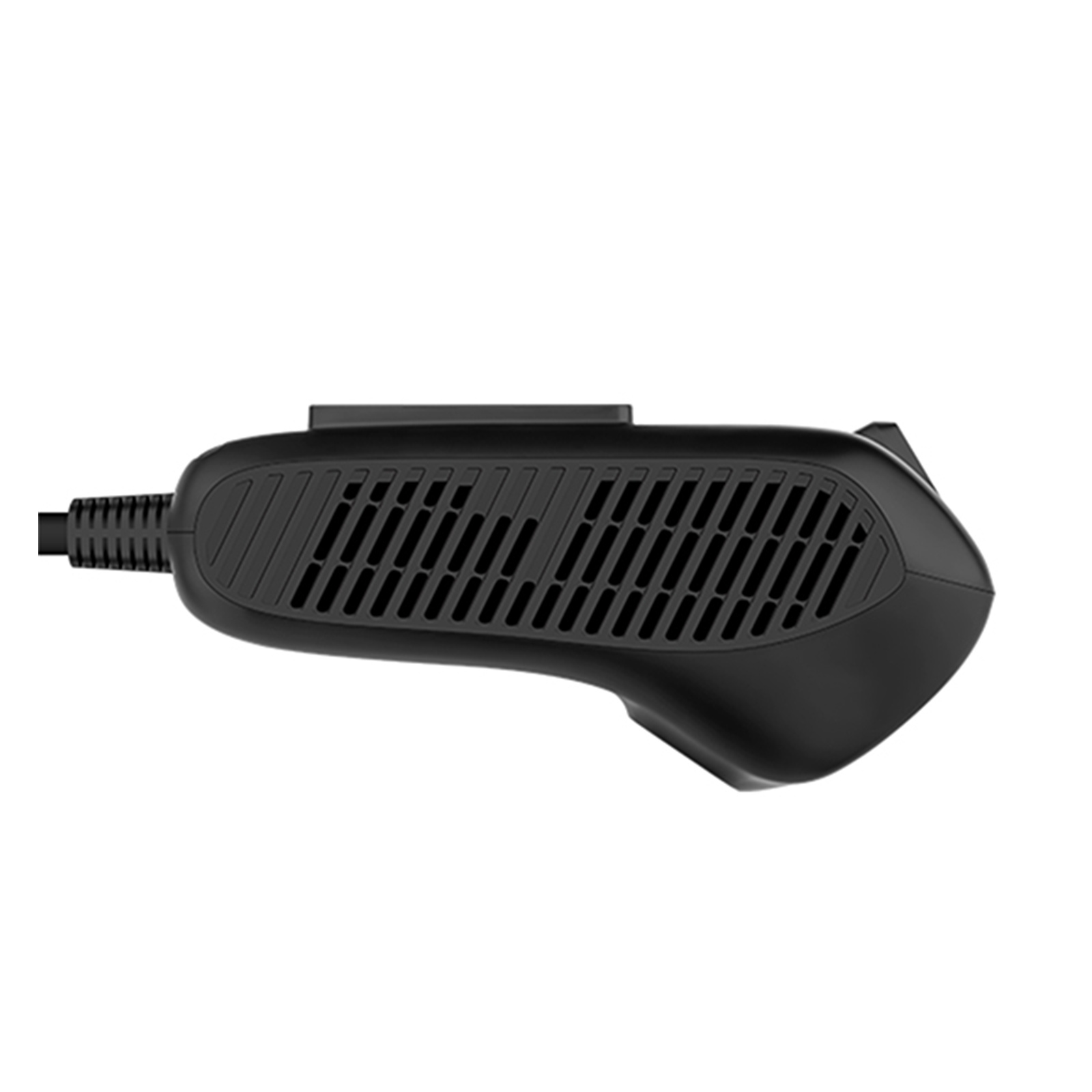

JimiLab JC400D EdgeCam 2 4G Telematics DashCam, various communication standards, driving beheavior analysis, Real-time tracking, Event video to cloud, DMS, Panic Button
JimiLab JC400D EdgeCam 2 4G Telematics DashCam, various communication standards, driving beheavior analysis, Real-time tracking, Event video to cloud, DMS, Panic Button
- Brand: JimiLab
- MPN: JC400D
- Part #: IPCJIM0015
- UPC:
- Brand: JimiLab
- MPN: JC400D
- Part #: IPCJIM0015
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT
JimiLab JC400D EdgeCam 2 4G Telematics DashCam, various communication standards, driving beheavior analysis, Real-time tracking, Event video to cloud, DMS, Panic Button
- Brand: JimiLab
- MPN: JC400D
- Part #: IPCJIM0015
Product URL: https://www.pbtech.co.nz/product/IPCJIM0015/JimiLab-JC400D-EdgeCam-2-4G-Telematics-DashCam-var
Branch | New Stock | On Display |
---|---|---|
Albany | - | |
Glenfield | - | |
Queen Street | - | |
Auckland Uni | - | |
Newmarket | - | |
Westgate | - | |
Penrose | - | |
Henderson (Express) | - | |
St Lukes | - | |
Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Head Office | - | |
Hornby | - | |
Christchurch Central | - |
Features
Driving Behavior Monitoring
Leveraging data on the driving behavior of your drivers, including harsh acceleration, harsh braking, and sharp turn will help reduce accident rate and improve fuel economy of your fleet.
Event Video to Cloud
In the event of a serious accident, collision or improper driving behavior, the JC400D will, as required, capture event videos and send them to the cloud for storage. With a 4G connection, you can have faster data speeds and wider network coverage, enabling you to respond or take action immediately.
Panic Button
In the event of an accident or other emergency, one-press of the panic SOS will trigger the device to help the driver or passenger initiate an emergency call to pre-set SOS numbers and the back office until the call is answered and to flag important video footage for review. The external SOS button can be installed within easy reach of the driver or passenger for quick activation, giving peace of mind to all.
Engine Cut-Off
Long-distance truck, van, and taxi drivers are prone to fatigue because of long hours behind the wheel. It is of paramount importance for you to be able to immobilize a vehicle in your fleet if you find the driver has exceeded their HOS. Besides, you never know if your vehicle is safe from theft or un-authorized use, so the remote engine off capability of the JC400D can be proved to be useful in a way or another.
Specifications
Network Connection | |
WiFi | 2.4GHz, 802.11 b/g/n |
BT | BLE 4.0 |
Eurasian Version | FDD LTE: B1/B3/B5/B7/B8/B19/B20
TDD LTE: B38/B39/B40/B41 (100M) WCDMA: B1/B2/B5/B8 GSM: 850/900/1800/1900MHz |
American Version | FDD LTE: B2/B3/B4/B5/B7/B12/B17
TDD LTE: B38/B41 (100M) WCDMA: B2/B4/B5 GSM: 850/1800/1900MHz |
Configuration | |
CPU | Quad-core 1.4GHz A53 |
Operating System | Android 8.1 GO |
GNSS | GPS+BDS |
Sensor | 6-axis |
Mic | ? |
Speaker | ? |
Data Interface | Micro USB 2.0 |
Memory | TF card (Max. 256GB) |
SIM Card | Nano |
LED | Red (Power), Blue (Cellular), Green (GNSS) |
Camera | |
Main Unit | Front camera: 1920×1080/25FPS/F2.2/full color |

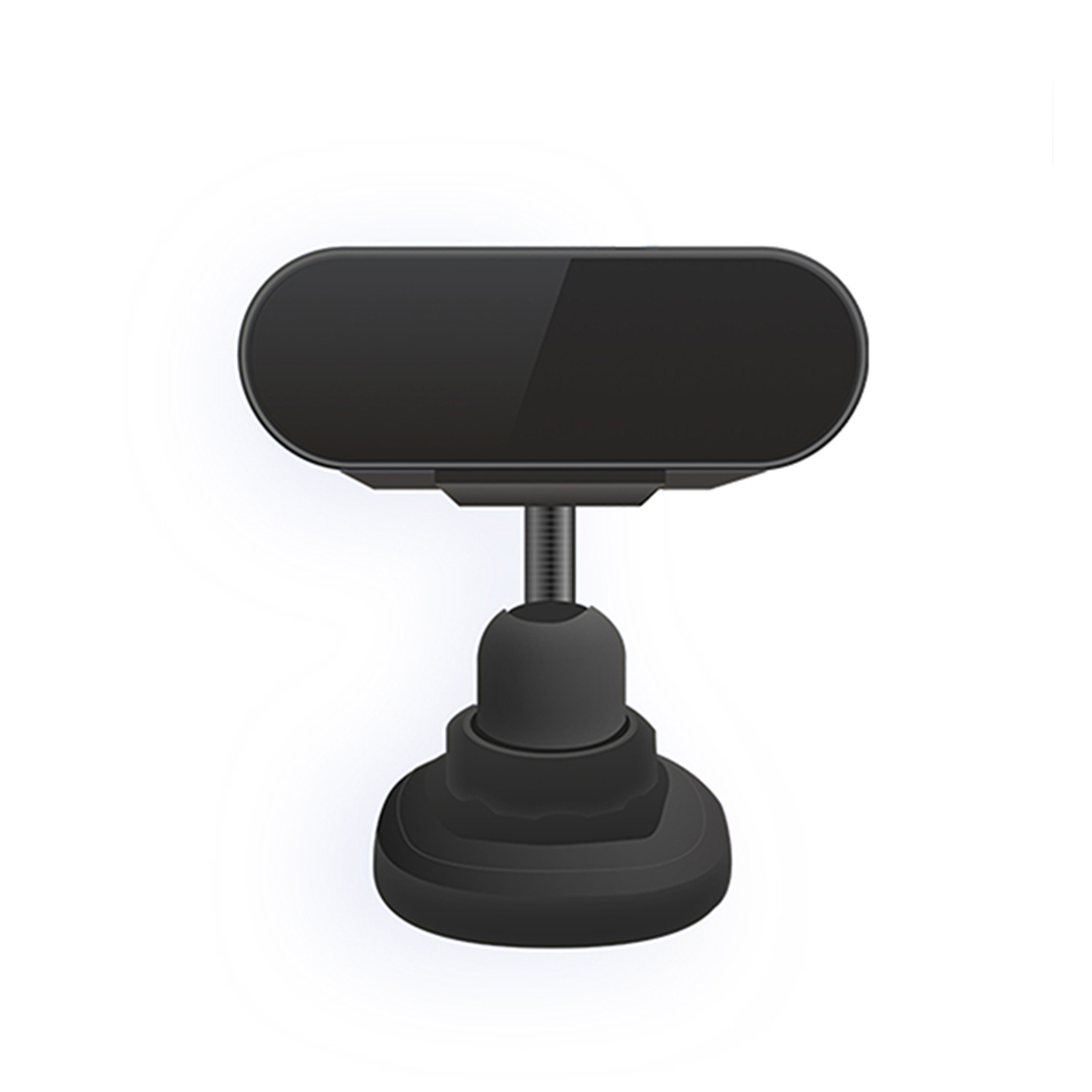

Subcamera | DMS camera: 1280×720/10FPS/F2.0/monochrome all day |
Video Coding | H.264 |
Others | |
Battery | External: 450mAh |
Power Supply | Power cable: B+/ACC/GND |
Operating Temperature | -20? to +65? |
Operating Voltage | 9-30V DC |
Device Weight | 233g |
Device Dimension | 109x69x52mm |
Certifications | FCC/CE/ROHS |
* We reserve the right of final interpretation for this product. All information is for reference only and is subject to change without further notice.
