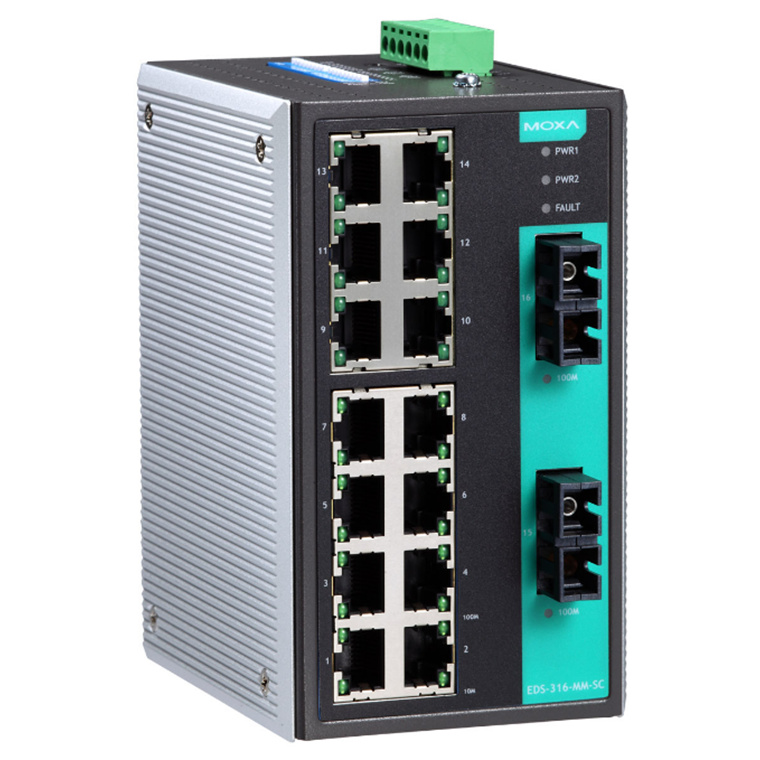

MOXA Industrial switch EDS-316-MM-SC 16 port Unmanaged switches,14 X 10/100BaseT(X) ports, 2 X100BaseFX multi-mode ports with SC connectors, relay output warning, 0 to 60°C operating temperature
MOXA Industrial switch EDS-316-MM-SC 16 port Unmanaged switches,14 X 10/100BaseT(X) ports, 2 X100BaseFX multi-mode ports with SC connectors, relay output warning, 0 to 60°C operating temperature
- Brand: MOXA
- MPN: EDS-316-MM-SC
- Part #: IPCMXAEDS316002
- UPC:
- Brand: MOXA
- MPN: EDS-316-MM-SC
- Part #: IPCMXAEDS316002
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Network Appliances





MOXA Industrial switch EDS-316-MM-SC 16 port Unmanaged switches,14 X 10/100BaseT(X) ports, 2 X100BaseFX multi-mode ports with SC connectors, relay output warning, 0 to 60°C operating temperature
- Brand: MOXA
- MPN: EDS-316-MM-SC
- Part #: IPCMXAEDS316002

Product URL: https://www.pbtech.co.nz/product/IPCMXAEDS316002/MOXA-Industrial-switch-EDS-316-MM-SC-16-port-Unman
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | - | |
Auckland - Glenfield | - | |
Auckland - Queen Street | - | |
Auckland - Auckland Uni | - | |
Auckland - Newmarket | - | |
Auckland - Westgate | - | |
Auckland - Penrose | - | |
Auckland - Henderson (Express) | - | |
Auckland - St Lukes | - | |
Auckland - Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Auckland - Head Office | - | |
Auckland - East Tamaki Warehouse | - | |
Christchurch - Hornby | - | |
Christchurch - Christchurch Central | - | |
Dunedin | - |
Features
The EDS-316 Ethernet switches provide an economical solution for your industrial Ethernet connections. These 16-port switches come with a built-in relay warning function that alerts network engineers when power failures or port breaks occur. In addition, the switches are designed for harsh industrial environments, such as the hazardous locations defined by the Class 1 Div. 2 and ATEX Zone 2 standards.
The switches comply with FCC, UL, and CE standards and support either a standard operating temperature range of -10 to 60°C or a wide operating temperature range of -40 to 75°C. All switches in the series undergo a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. The EDS-316 switches can be installed easily on a DIN rail or in a distribution box.
- Relay output warning for power failure and port break alarm
- Broadcast storm protection
- -40 to 75°C operating temperature range (-T models)
Specifications
Input/Output Interface
Alarm Contact Channels
1 relay output with current carrying capacity of 1 A @ 24 VDC
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector)
EDS-316 Series: 16
EDS-316-MM-SC/MM-ST/MS-SC/SS-SC Series, EDS-316-SS-SC-80: 14
EDS-316-M-SC/M-ST/S-SC Series: 15
All models support:
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
100BaseFX Ports (multi-mode SC connector)
EDS-316-M-SC: 1
EDS-316-M-SC-T: 1
EDS-316-MM-SC: 2
EDS-316-MM-SC-T: 2
EDS-316-MS-SC: 1
100BaseFX Ports (multi-mode ST connector)
EDS-316-M-ST Series: 1
EDS-316-MM-ST Series: 2
100BaseFX Ports (single-mode SC connector)
EDS-316-MS-SC, EDS-316-S-SC Series: 1
EDS-316-SS-SC Series: 2
100BaseFX Ports (single-mode SC connector, 80 km)
EDS-316-SS-SC-80: 2
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
DIP Switch Configuration
Ethernet Interface
Port break alarm
Switch Properties
Packet Buffer Size
1.25 Mbits
MAC Table Size
4 K
Processing Type
Store and Forward
Power Parameters
Input Current
Non-fiber models: 0.34 A @ 24 VDC
Fiber models: 0.4 A @ 24 VDC
Connection
1 removable 6-contact terminal block(s)
Operating Voltage
9.6 to 60 VDC
Input Voltage
12/24/48 VDC, Redundant dual inputs
Reverse Polarity Protection
Supported
Overload Current Protection
Supported
Physical Characteristics
Housing
Metal
IP Rating
IP30
Dimensions
80.1 x 135 x 105 mm (3.15 x 5.31 x 4.13 in)
Weight
1140 g (2.52 lb)
Installation
DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits
Operating Temperature
Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
5 to 95% (non-condensing)
