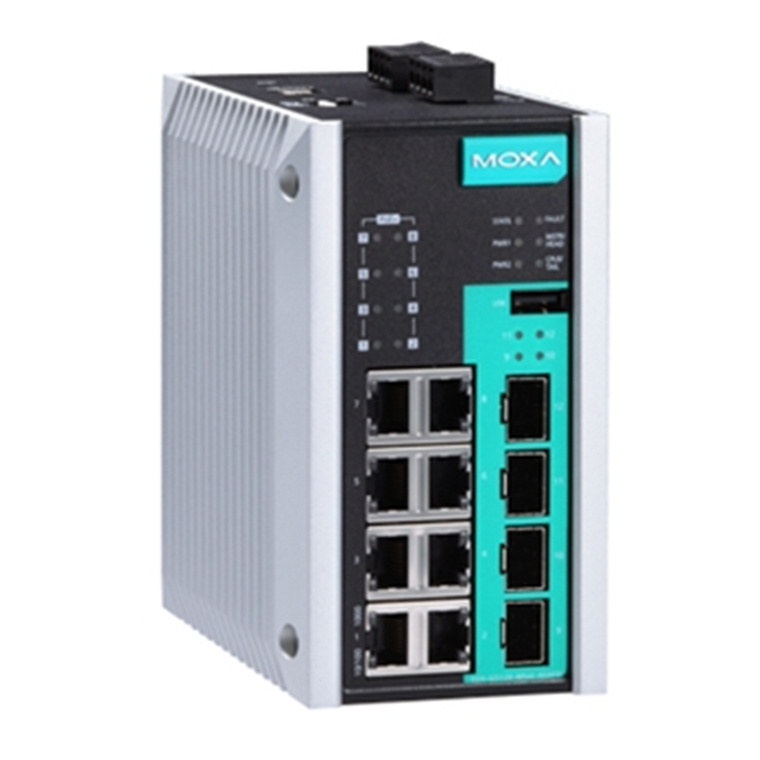

MOXA PoE switch EDS-G512E-8PoE-4GSFP 12-port full Gigabit 8PoE Managed Ethernet switch, support with 8 x 10/100/1000BaseT(X) PoE/PoE+ ports, 4 x 100/1000BaseSFP slots, -10 to 60°C operating temperature

PB Tech price

$ 5,130 .00

+GST

$ 5,899 .50

inc GST

MOXA PoE switch EDS-G512E-8PoE-4GSFP 12-port full Gigabit 8PoE Managed Ethernet switch, support with 8 x 10/100/1000BaseT(X) PoE/PoE+ ports, 4 x 100/1000BaseSFP slots, -10 to 60°C operating temperature

Brand: MOXA
MPN: EDS-G512E-8PoE-4GSFP
Part #: IPCMXAEDSG51201
UPC:

PB Tech price

$ 5,899 .50

inc GST

+GST inc GST

In stock at Supplier

No store stock available.

Click & Collect: Select your store to check availability

Delivery: Order now and it ships on 14 Oct When will I receive it?

Add To Compare

Stock Alerts

Finance from $51.62 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

24 months interest FREE available*

View All Finance Options

Click or hover over image to enlarge

Brand: MOXA
MPN: EDS-G512E-8PoE-4GSFP
Part #: IPCMXAEDSG51201
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

The EDS-G512E-8PoE Series are full gigabit managed PoE+ Ethernet switches that come standard with 8 10/100/1000BaseT(X), 802.3af (PoE), and 802.3at (PoE+)-compliant Ethernet ports, and up to 4 fiber optic ports. With the gigabit Ethernet PoE+ ports, it is perfect for high bandwidth PD device communications, such as IEEE 802.11n and IEEE 802.1ac wireless access points and high resolution GigE machine vision cameras for tolling systems. It can provide up to 30 watts of power per PoE+ port in standard mode and allow high power output of up to 36 watts for industrial heavy-duty PoE devices, such as weather-proof IP surveillance cameras with wipers/heaters, and rugged IP phones. The EDS-G512E-8PoE Ethernet switches are highly versatile, and the SFP fiber ports can transmit data up to 120 km from the device to the control center with high EMI immunity. The Ethernet switches support a variety of management functions, including STP/RSTP, Turbo Ring, Turbo Chain, PoE power management, PoE device auto-checking, PoE power scheduling, IGMP, VLAN, QoS, RMON, bandwidth management, and port mirroring.

- Advanced PoE management function (PoE port setting, PD failure check, and PoE scheduling)
- IGMP snooping and GMRP for filtering multicast traffic
- Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
- QoS (IEEE 802.1p/1Q) and TOS/DiffServ to increase determinism
- Port Trunking for optimum bandwidth utilization
- Command Line Interface (CLI) for quickly configuring major managed functions
- IPv6 Ready logo awarded (IPv6 Logo Committee certified)
- IEEE 1588 PTP V2 (Precision Time Protocol) for precise time synchronization of networks
- DHCP Option 82 for IP address assignment with different policies
- Support EtherNet/IP, PROFINET, and Modbus/TCP protocols for device management and monitoring
- Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), RSTP/STP, and MSTP for network redundancy
- TACACS+, IEEE 802.1X, SNMPv3, HTTPS, and SSH to enhance network security
- Lock port function for blocking unauthorized access based on MAC address
- SNMPv1/v2c/v3 for different levels of network management
- RMON for efficient network monitoring and proactive capability
- Bandwidth management to prevent unpredictable network status
- Port mirroring for online debugging
- Lock port function for blocking unauthorized access based on MAC address
- Automatic warning by exception through e-mail, relay output
- ABC-02-USB (Automatic Backup Configurator) for system

Specifications

Input/Output Interface

Alarm Contact Channels

1
Relay output with current carrying capacity of 1 A @ 24 VDC

Buttons

Reset button

Digital Input Channels

Digital Inputs

+13 to +30 V for state 1
-30 to +3 V for state 0
Max. input current: 8 mA

Ethernet Interface

PoE Ports (10/100/1000BaseT(X), RJ45 connector)

EDS-G512E-8PoE-4GSFP: 8

100/1000BaseSFP Slots

Standards

IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
IEEE 802.3x for flow control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1X for authentication
IEEE 802.3ad for Port Trunk with LACP

Ethernet Software

Filter

802.1Q VLAN
BPDU Filter
BPDU Guard
GMRP
GVRP
IGMP v1/v2/v3
Port-based VLAN

Industrial Protocols

EtherNet/IP
Modbus TCP
PROFINET IO Device

Switch Properties

IGMP Groups

2048

Jumbo Frame Size

9.6 KB

MAC Table Size

8 K

Max. No. of VLANs

256

Packet Buffer Size

4 Mbits

Priority Queues

VLAN ID Range

VID 1 to 4094

USB Interface

Storage Port

USB Type A

Serial Interface

Console Port

USB-serial console (Type B connector)

DIP Switch Configuration

DIP Switches

Turbo Ring, Master, Coupler, Reserve

Power Parameters

Connection

2 removable 4-contact terminal block(s)

Input Current

EDS-G512E-8PoE-4GSFP models: 5.30 A @ 48 VDC

Input Voltage

EDS-G512E-8PoE-4GSFP models: 48 VDC

Operating Voltage

EDS-G512E-8PoE-4GSFP models: 44 to 57 VDC (> 50 VDC for PoE+ output recommended)

Overload Current Protection

Supported

Reverse Polarity Protection

Supported

Power Consumption (Max.)

EDS-G512E-8PoE-4GSFP: Max. 14.36 W full loading without PDs' consumption

Physical Characteristics

Housing

Metal

IP Rating

IP30

Dimensions

79.2 x 135 x 137 mm (3.1 x 5.3 x 5.4 in)

Weight

EDS-G512E-8PoE-4GSFP: 1,540 g (3.40 lb)

Installation

DIN-rail mounting
Wall mounting (with optional kit)

Environmental Limits

Operating Temperature

Standard Models: -10 to 60°C (14 to 140°F)

Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications

Safety

EDS-G512E-8PoE-4GSFP models: EN 62368-1
EMC EN 61000-6-2/-6-4
EMI FCC Part 15B Class A

EMS

EDS-G512E-8PoE-4GSFP: IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m

Manufacturer Part No:

EDS-G512E-8PoE-4GSFP

Brand:

MOXA

Product Type:

12-port full Gigabit

UPC

Product Family:

PoE switch

Shipping Weight:

1 kg

PB Part No:

IPCMXAEDSG51201

Product Model:

EDS-G512E-8PoE-4GSFP

Warranty: 60 months *
