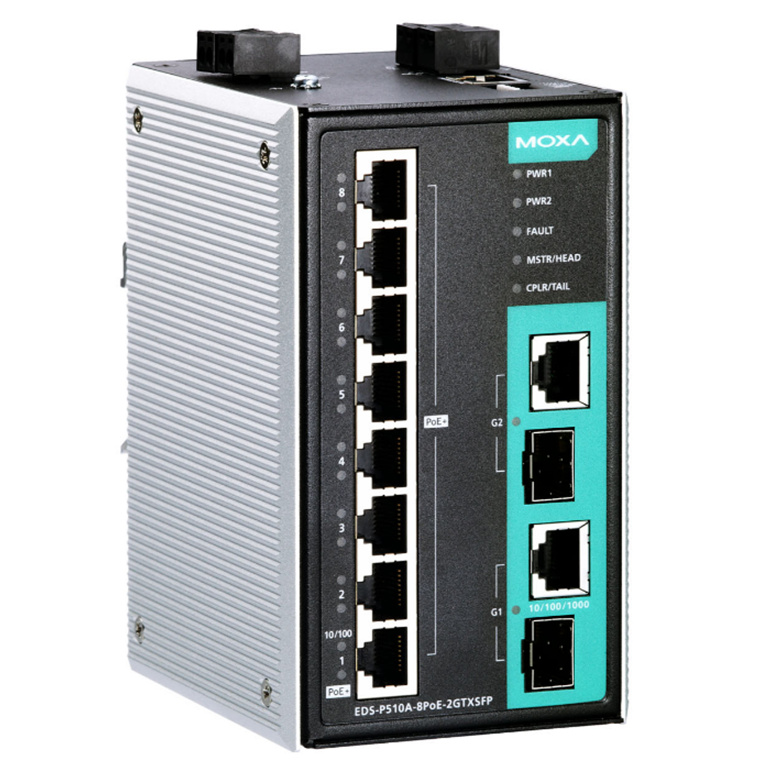

MOXA PoE switch EDS-P510A-8PoE-2GTXSFP 8 PoE ports Managed Gigabit Ethernet switch, support SFP-1G/1FE Series Gigabit/Fast Ethernet modules 0 to 60°C operating temperature
MOXA PoE switch EDS-P510A-8PoE-2GTXSFP 8 PoE ports Managed Gigabit Ethernet switch, support SFP-1G/1FE Series Gigabit/Fast Ethernet modules 0 to 60°C operating temperature
- Brand: MOXA
- MPN: EDS-P510A-8PoE-2GTXSFP v1.1.0
- Part #: IPCMXAEDSP51003
- UPC:
- Brand: MOXA
- MPN: EDS-P510A-8PoE-2GTXSFP v1.1.0
- Part #: IPCMXAEDSP51003
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular Network Appliances
MOXA Industrial switch EDS-505A 5 port Managed Ethernet switch...
MOXA Industrial switch EDS-205A 5-port Unmanaged Ethernet...
MOXA Industrial Switch EDS-2008-EL 8-port 12/24/48 power input,...
MOXA Switch 5-port Unmanaged, EDS-2005-ELP, -10 to 60 C operating...
MOXA Switch EDS-2016-ML, 16 ports, -10 to 60 C operating...
MOXA PoE switch EDS-P510A-8PoE-2GTXSFP 8 PoE ports Managed Gigabit Ethernet switch, support SFP-1G/1FE Series Gigabit/Fast Ethernet modules 0 to 60°C operating temperature
- Brand: MOXA
- MPN: EDS-P510A-8PoE-2GTXSFP v1.1.0
- Part #: IPCMXAEDSP51003
Product URL: https://www.pbtech.co.nz/product/IPCMXAEDSP51003/MOXA-PoE-switch-EDS-P510A-8PoE-2GTXSFP-8-PoE-ports
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | - | |
| Auckland - Glenfield | - | |
| Auckland - Queen Street | - | |
| Auckland - Auckland Uni | - | |
| Auckland - Newmarket | - | |
| Auckland - Westgate | - | |
| Auckland - Penrose | - | |
| Auckland - Henderson (Express) | - | |
| Auckland - St Lukes | - | |
| Auckland - Manukau | - | |
| Hamilton | - | |
| Tauranga | - | |
| New Plymouth | - | |
| Palmerston North | - | |
| Petone | - | |
| Wellington | - | |
| Auckland - Head Office | - | |
| Auckland - East Tamaki Warehouse | - | |
| Christchurch - Hornby | - | |
| Christchurch - Christchurch Central | - | |
| Dunedin | - |
Features
Moxa's EDS-P510A Series has 8 10/100BaseT(X), 802.3af (PoE), and 802.3at (PoE+)-compliant Ethernet ports, and 2 combo Gigabit Ethernet ports. The EDS-P510A-8PoE Ethernet switches provide up to 30 watts of power per PoE+ port in standard mode and allow high-power output of up to 36 watts for industrial heavy-duty PoE devices, such as weather-proof IP surveillance cameras with wipers/heaters, high-performance wireless access points, and IP phones. The EDS-P510A Ethernet Series is highly versatile, and the SFP fiber ports can transmit data up to 120 km from the device to the control center with high EMI immunity.
The Ethernet switches support a variety of management functions, as well as STP/RSTP, Turbo Ring, Turbo Chain, PoE power management, PoE device auto-checking, PoE power scheduling, PoE diagnostic, IGMP, VLAN, QoS, RMON, bandwidth management, and port mirroring. The EDS-P510A Series is designed with 3 kV surge protection for harsh outdoor applications to increase the reliability of PoE systems.
Additional Features and Benefits
- Supports different PoE output settings (High-power 36 W, Force and Legacy modes) to maximize powered device compatibility
- Supports Smart PoE functions (PoE diagnosis, PD failure check, PoE scheduling, PoE Event Warning) to enhance PoE operational efficiency
- Command line interface (CLI) for quickly configuring major managed functions
- DHCP Option 82 for IP address assignment with different policies
- Supports EtherNet/IP and Modbus TCP protocols for device management and monitoring
- Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), RSTP/STP, and MSTP for network redundancy
- Compatible with PROFINET protocol for transparent data transmission
- IGMP snooping and GMRP for filtering multicast traffic
- Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
- QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism
- Port Trunking for optimum bandwidth utilization
- TACACS+, IEEE 802.1X, SNMPv3, HTTPS, and SSH to enhance network security
- Lock port function for blocking unauthorized access based on MAC address
- SNMPv1/v2c/v3 for different levels of network management
- RMON for proactive and efficient network monitoring
- Bandwidth management to prevent unpredictable network status
- Port mirroring for online debugging
- Automatic warning by exception through email and relay output
Specifications
Interface
Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)
2
Full/Half duplex mode
Auto MDI/MDI-X connection
Auto negotiation speed
PoE Ports (10/100BaseT(X), RJ45 connector)
8
Full/Half duplex mode
Auto MDI/MDI-X connection
Auto negotiation speed
Standards
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1X for authentication
IEEE 802.3 for 10BaseT
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3ad for Port Trunk with LACP
IEEE 802.3af/at for PoE/PoE+ output
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Ethernet Software Features
Filter
GMRP, GVRP, IGMP v1/v2, Port-based VLAN
Industrial Protocols
EtherNet/IP, Modbus TCP
Management
Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, Fiber check, Flow control, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP
MIB
Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
Redundancy Protocols
LACP, Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2
Security
HTTPS/SSL, Port Lock, RADIUS, TACACS+, SSH
Time Management
NTP Server/Client, SNTP
Switch Properties
IGMP Groups
1024
MAC Table Size
8 K
Max. No. of VLANs
64
Packet Buffer Size
1 Mbits
Priority Queues
4
VLAN ID Range
VID 1 to 4094
Serial Interface
Console Port
RS-232 (TxD, RxD, GND), 10-pin RJ45 (115200, n, 8, 1)
DIP Switch Configuration
Ethernet Interface
Turbo Ring, Master, Coupler, Reserve
Input/Output Interface
Alarm Contact Channels
1, Relay output with current carrying capacity of 0.5 A @ 48 VDC
Digital Input Channels
1
Digital Inputs
Max. input current: 8 mA
+13 to +30 V for state 1
-30 to +3 V for state 0
Power Parameters
Input Voltage
48 VDC, Redundant dual inputs
Operating Voltage
44 to 57 VDC
Input Current
5.36 A @ 48 VDC
Power Consumption (Max.)
Max. 17.28 W full loading without PDs' consumption
Power Budget
Max. 240 W for total PD consumption
Max. 36 W for each PoE port
Connection
2 removable 2-contact terminal block(s)
Overload Current Protection
Supported
Reverse Polarity Protection
Supported
Physical Characteristics
Housing
Metal
IP Rating
IP30
Dimensions
79.2 x 135 x 105 mm (3.12 x 5.31 x 4.13 in)
Weight
1030 g (2.28 lb)
Installation
DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits
Operating Temperature
-10 to 60°C (14 to 140°F)
Storage Temperature (package included)
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
5 to 95% (non-condensing)
