MOXA ioThinx 4500 Series 45MR-2601 16 DOs, 24 VDC, source, -20 to 60°C operating temperature Advanced Controllers & I/Os, ioThinx 4500 Series (45MR) Modules

With promo code $144.10

With promo code $165.72

Save $172

Save $198

$ 316 .68

+GST

$ 364 .18

inc GST

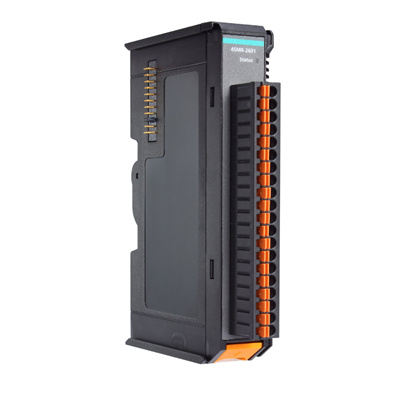

MOXA ioThinx 4500 Series 45MR-2601 16 DOs, 24 VDC, source, -20 to 60°C operating temperature Advanced Controllers & I/Os, ioThinx 4500 Series (45MR) Modules

INDUSTRIAL EDGE CONNECTIVITY

Brand: MOXA
MPN: 45MR-2601
Part #: IPCMXAIO4500009
UPC:

CLEARANCE

With promo code $165.72

Save $198 with code CLEARANCE

Without promo code

$ 364 .18

inc GST

+GST inc GST

Part of Clearance Zone

In stock at PB Tech

Check store stock levels

Click & Collect: Select your store to check availability

Delivery: Order now and it ships on 22 Sep When will I receive it?

Add To Compare

Stock Alerts

Finance from $4.22 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

24 months interest FREE available*

View All Finance Options

Click or hover over image to enlarge

Brand: MOXA
MPN: 45MR-2601
Part #: IPCMXAIO4500009
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

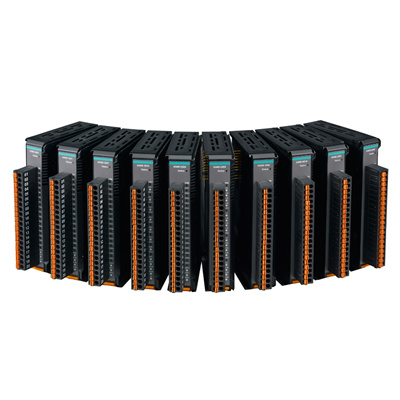

Moxa's ioThinx 4500 Series (45MR) Modules are available with DI/Os, AIs, relays, RTDs, and other I/O types, giving users a wide variety of options to choose from and allowing them to select the I/O combination that best fits their target application. With its unique mechanical design, hardware installation and removal can be done easily without tools, greatly reducing the amount of time required to set up and replace the modules.

Easy Tool-Free Installation and Removal

The ioThinx 4500 Series has a unique mechanical design that reduces the amount of time required for installation and removal. In fact, screwdrivers and other tools are not required for any part of the hardware installation, including mounting the device on a DIN-rail, as well as connecting the wiring for both communication and I/O signal acquisition. Furthermore, no tools are required to remove the ioThinx from a DIN-rail. Removing all of the modules from a DIN-rail is also easy using the latch and release tab.

- I/O modules include DI/Os, AI/Os, relays, and other I/O types
- Power modules for system power inputs and field power inputs
- Easy tool-free installation and removal
- Built-in LED indicators for IO channels
- Wide operating temperature range: -40 to 75°C (-40 to 167°F)
- Class I Division 2 and ATEX Zone 2 certifications

Specifications

Connector

Spring-type Euroblock terminal

Sensor Type

Dry contact
Wet contact (NPN or PNP)

I/O Mode

45MR-1600/1601: DI or event counter (only supports the first 4 channels)
45MR-2606: DI or event counter (only supports the first 2 channels)

Dry Contact

On: short to FP+/FP-
Off: open

Wet Contact (DI to FP-)

On: 10 to 30 VDC
Off: 0 to 3 VDC

Wet Contact (DI to FP+)

On: 10 to 30 VDC
Off: 0 to 3 VDC

Counter Frequency

1 kHz

Digital Filtering Time Interval

Software configurable

Digital Outputs

Connector

Spring-type Euroblock terminal

I/O Type

45MR-2600: Sink
45MR-2601/2606: Source

I/O Mode

45MR-2600/2601: DO or pulse output (only supports the first 4 channels)
45MR-2606: DO or pulse output (only supports the first 2 channels)

External Power

12/24 VDC

Pulse Output Frequency

1 kHz

Over-Voltage Protection

45 VDC

Over-Temperature Shutdown

175°C (typical), 150°C (min.)

Current Rating

500 mA per channel

Relays

Connector

Spring-type Euroblock terminal

Type

Form A (N.O.) power relay

I/O Mode

Contact Current Rating

Resistive load: 2 A @ 30 VDC
Resistive load: 2 A @ 250 VAC

Relay On/Off Time

10 ms (max.)

Initial Insulation Resistance

1000 mega-ohms (min.) @ 500 VDC

Mechanical Endurance

5,000,000 operations

Electrical Endurance

400,000 operations @ 2 A resistive load

Contact Resistance

100 milli-ohms (max.)

Analog Inputs

Connector

Spring-type Euroblock terminal

I/O Mode

Voltage/Current

I/O Type

Differential

Resolution

16 bits

Input Range

45MR-3800: 0 to 20 mA, 4 to 20 mA, 4 to 20 mA (burnout detection)
45MR-3810: 0 to 10 VDC or -10 to 10 VDC

Over-Voltage Protection

-25 to +30 VDC (power on)
-35 to +35 VDC (power off)

Accuracy

±0.1% FSR @ 25°C
±0.3% FSR @ -40 and 75°C

Sampling Rate

All channels: 100 samples/sec
Per channel: 12.5 samples/sec
Single channel: 100 samples/sec

Input Impedance

45MR-3800: 120 ohms
45MR-3810: 10 mega-ohms (min.)

Analog Outputs

Connector

Spring-type Euroblock terminal

I/O Mode

Voltage/Current

Output Range

0 to 10 VDC
0 to 20 mA
4 to 20 mA

Resolution

12-bit

Accuracy

±0.1% FSR @ 25°C
±0.3% FSR @ -40 to 75°C

Load (Current Mode)

Internal power: 500 ohms (max.)

Load (Voltage Mode)

1000 ohms (min.)

RTDs

Connector

Spring-type Euroblock terminal

Sensor Type

PT50, PT100, PT200, PT500 (-200 to 850°C)
PT1000 (-200 to 350°C)
JPT100, JPT200, JPT500 (-200 to 640°C)
JPT1000 (-200 to 350°C)
NI100, NI200, NI500 (-60 to 250°C)
NI1000 (-60 to 150°C)
NI120 (-80 to 260°C)

Resistance Type

310, 620, 1250, and 2200 ohms

Input Connection

2- or 3-wire

Sampling Rate

All channels: 12 samples/sec
Per channel: 2 samples/sec

Resolution

0.1°C or 0.1 ohms

Accuracy

±0.1% FSR @ 25°C
±0.3% FSR @ -40 and 75°C

Input Impedance

625 kilo-ohms (min.)

Thermocouples

Connector

Spring-type Euroblock terminal

Sensor Type

J, K, T, E, R, S, B, N

Millivolt Type

±19.532 mV
±39.062 mV
±78.126 mV

Resolution

16 bits

Millivolt Accuracy

±0.1% FSR @ 25°C
±0.3% FSR @ -40 and 75°C

Sampling Rate

All channels: 12 samples/sec
Per channel: 1.5 samples/sec

Input Impedance

1 mega-ohms (min.)

System Power Parameters

Power Connector

Spring-type Euroblock terminal

No. of Power Inputs

Input Voltage

12 to 48 VDC

Output Current

1 A (max.)

Power Consumption

800 mA @ 12 VDC

Over-Voltage Protection

55 VDC

Over-Current Protection

1 A @ 25°C

Field Power Parameters

Power Connector

Spring-type Euroblock terminal

No. of Power Inputs

Input Voltage

12/24 VDC

Output Current

2 A (max.)

Over-Current Protection

2.5 A @ 25°C

Over-Voltage Protection

33 VDC

Potential Output Mode

45MR-7820: 0 VDC, 12/24 VDC

Manufacturer Part No:

45MR-2601

Brand:

MOXA

Product Type:

UPC

Product Family:

ioThinx 4500 Series

Shipping Weight:

1 kg

PB Part No:

IPCMXAIO4500009

Product Model:

45MR-2601

Warranty: 60 months *
