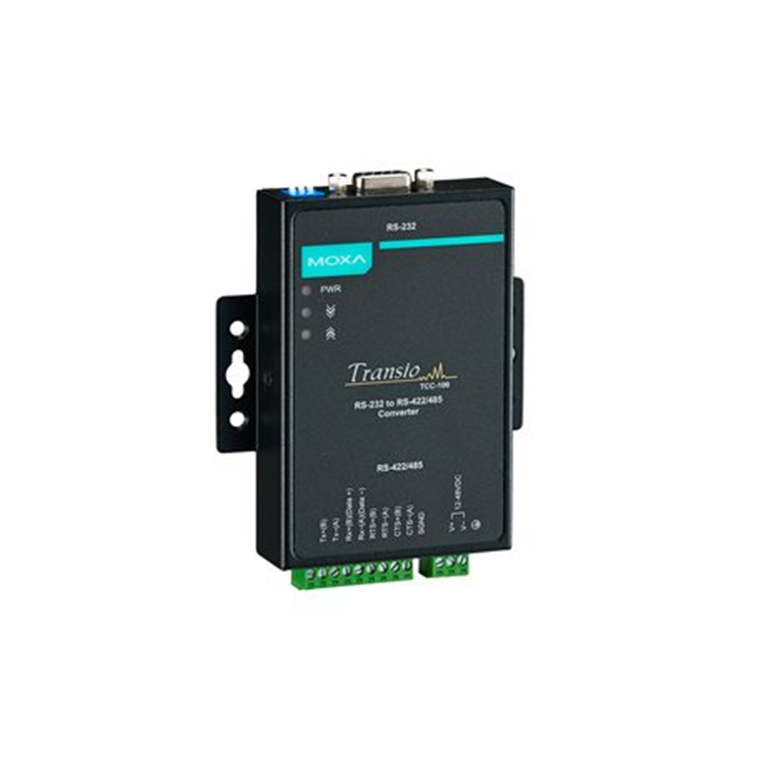

MOXA TCC-100I-T RS-232 to RS-422/485 converter with optical isolation, -40 to 85°C operating temperature
MOXA TCC-100I-T RS-232 to RS-422/485 converter with optical isolation, -40 to 85°C operating temperature
- Brand: MOXA
 - MPN: TCC-100I-T
 - Part #: IPCMXATCC100002
 - UPC:

- Brand: MOXA
 - MPN: TCC-100I-T
 - Part #: IPCMXATCC100002
 - UPC:

Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Connectivity




                                                            MOXA TCC-100I-T RS-232 to RS-422/485 converter with optical isolation, -40 to 85°C operating temperature
- Brand: MOXA
 - MPN: TCC-100I-T
 - Part #: IPCMXATCC100002

            Product URL: https://www.pbtech.co.nz/product/IPCMXATCC100002/MOXA-TCC-100I-T-RS-232-to-RS-422485-converter-with
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | - | |
| Auckland - Glenfield | - | |
| Auckland - Queen Street | - | |
| Auckland - Auckland Uni | - | |
| Auckland - Westgate | - | |
| Auckland - Penrose | - | |
| Auckland - Henderson (Express) | - | |
| Auckland - St Lukes | - | |
| Auckland - Manukau | - | |
| Hamilton | - | |
| Tauranga | - | |
| New Plymouth | - | |
| Palmerston North | - | |
| Petone | - | |
| Wellington | - | |
| Auckland - Head Office | - | |
| Auckland - East Tamaki Warehouse | - | |
| Christchurch - Hornby | - | |
| Christchurch - Christchurch Central | - | |
| Dunedin | - |
Features
Specifications
Serial Interface
No. of Ports
2
Connector
Terminal block
Serial Standards
RS-232
RS-422
RS-485
Baudrate
50 bps to 921.6 kbps (supports non-standard baudrates)
Pull High/Low Resistor for RS-485
1 kilo-ohm, 150 kilo-ohms
RS-485 Data Direction Control
ADDC (automatic data direction control)
Terminator for RS-485
N/A, 120 ohms, 120 kilo-ohms
Isolation
2 kV (I models)
Serial Signals
RS-232
TxD, RxD, RTS, CTS, GND
RS-422
Tx+, Tx-, Rx+, Rx-, RTS (optional), CTS (optional), GND
RS-485-2w
Data+, Data-, GND
RS-485-4w
Tx+, Tx-, Rx+, Rx-, GND
Power Parameters
Input Current
144 mA (max)
Input Voltage
12 to 48 VDC
No. of Power Inputs
1
Overload Current Protection
Supported
Power Connector
Terminal block (for DC models)
Physical Characteristics
Housing
Metal
IP Rating
IP30
Dimensions
67 x 100.4 x 22 mm (2.64 x 3.93 x 0.87 in)
Weight
148 g (0.33 lb)
Installation
Wall mounting
DIN-rail mounting (with optional kit)
Environmental Limits
Operating Temperature
-40 to 85°C (-40 to 185°F)
Storage Temperature (package included)
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
5 to 95% (non-condensing)
Standards and Certifications
EMC
EN 55032/35
EMI
CISPR 32, FCC Part 15B Class A
EMS
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
Safety
UL 60950-1
Vibration
IEC 60068-2-6
Environmental Testing
IEC 60068-2-1
IEC 60068-2-3
MTBF
Time
3,017,857 hrs
Standards
Telcordia (Bellcore), GB
Warranty
Warranty Period
5 years
Details
See www.moxa.com/warranty
