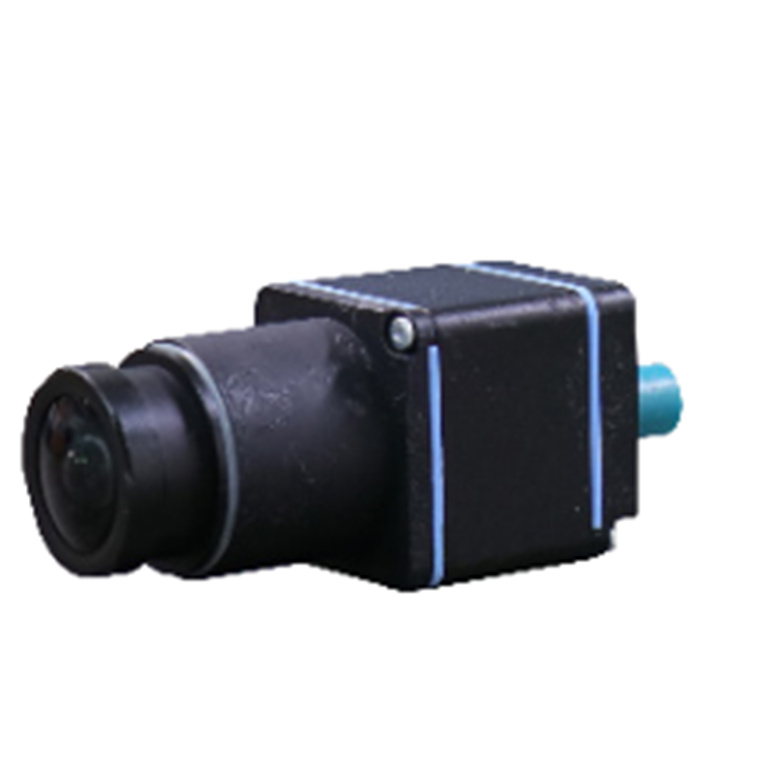

NEOUSYS IMX490 CMOS sensor camera 2880x186, 30fps; LFM; HFOV 120°; IP67+IP69K -40°C to 85°C operating temperature; male FAKRA connector; activealignment; without lens cap
Out of stock
NEOUSYS IMX490 CMOS sensor camera 2880x186, 30fps; LFM; HFOV 120°; IP67+IP69K -40°C to 85°C operating temperature; male FAKRA connector; activealignment; without lens cap
- Brand: NEOUSYS
- MPN: AC-IMX490-H120
- Part #: IPCNSS0005
- UPC:
- Brand: NEOUSYS
- MPN: AC-IMX490-H120
- Part #: IPCNSS0005
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT





NEOUSYS IMX490 CMOS sensor camera 2880x186, 30fps; LFM; HFOV 120°; IP67+IP69K -40°C to 85°C operating temperature; male FAKRA connector; activealignment; without lens cap
- Brand: NEOUSYS
- MPN: AC-IMX490-H120
- Part #: IPCNSS0005

Product URL: https://www.pbtech.co.nz/product/IPCNSS0005/NEOUSYS-IMX490-CMOS-sensor-camera-2880x186-30fps-L
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
- SONY IMX490 CMOS sensor and GEO SEMI GW5300 ISP
- 2880x1860 uncompressed UYVY video output
- IP67 + IP69K waterproof on the lens side
- Enhanced edge focus and lens centering via 5-axis active adjustment
Specifications
Model No.
AC-IMX490-H120
HFOV
120°
F No.
F1.6
Object Distance
2.5M to infinity
Center Deviation
± 5 pixel on 50cm object
CMOS
SONY IMX490, 1/1.55" optical format with 3µm x 3µm pixel size
ISP
GEO SEMI GW5300
LFM(LED Flicker Mitigation)
Yes
HDR(High Dynamic Range)
120dB
Resolution
5MP (2880 x 1860)
TV Lines center >= 1100. Corner 0.8F >=900
FPS
30 FPS (Configurable by external framesync)
Video Format
YUV422 (UYVY)
Serializer
MAX9295
Current Consumption
= 230mA @ 12V
Waterproof
IP67 + IP69K on the lens side
IP67 on the FAKRA side with waterproof FAKRA connector
Lens Mounting
5-axis active adjustment with adhesive dispense
Connector
Male FAKRA Z connector
Operating Temperature
-40°C ~ 85°C
Storage Temperature
-40°C ~ 95°C
EMC
CE/FCC Class A, according to EN 55032 & EN 55035
EN 50155 (reference to EN 50121-3-2)
Dimension
28 x 28 x 59 mm(exclude FAKRA connector)
Weight
67.4 g
