Netvox LoRa module Wireless Door / Window Sensor (Powered by 2 X CR2450 Battery), compatable with any AS923 LoRa gateway or platform of choice.
Out of stock
Netvox LoRa module Wireless Door / Window Sensor (Powered by 2 X CR2450 Battery), compatable with any AS923 LoRa gateway or platform of choice.
- Brand: Netvox
- MPN: R311A
- Part #: IPCNVX4688585
- UPC:
- Brand: Netvox
- MPN: R311A
- Part #: IPCNVX4688585
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT





Netvox LoRa module Wireless Door / Window Sensor (Powered by 2 X CR2450 Battery), compatable with any AS923 LoRa gateway or platform of choice.
- Brand: Netvox
- MPN: R311A
- Part #: IPCNVX4688585

Product URL: https://www.pbtech.co.nz/product/IPCNVX4688585/Netvox-LoRa-module-Wireless-Door--Window-Sensor-Po
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

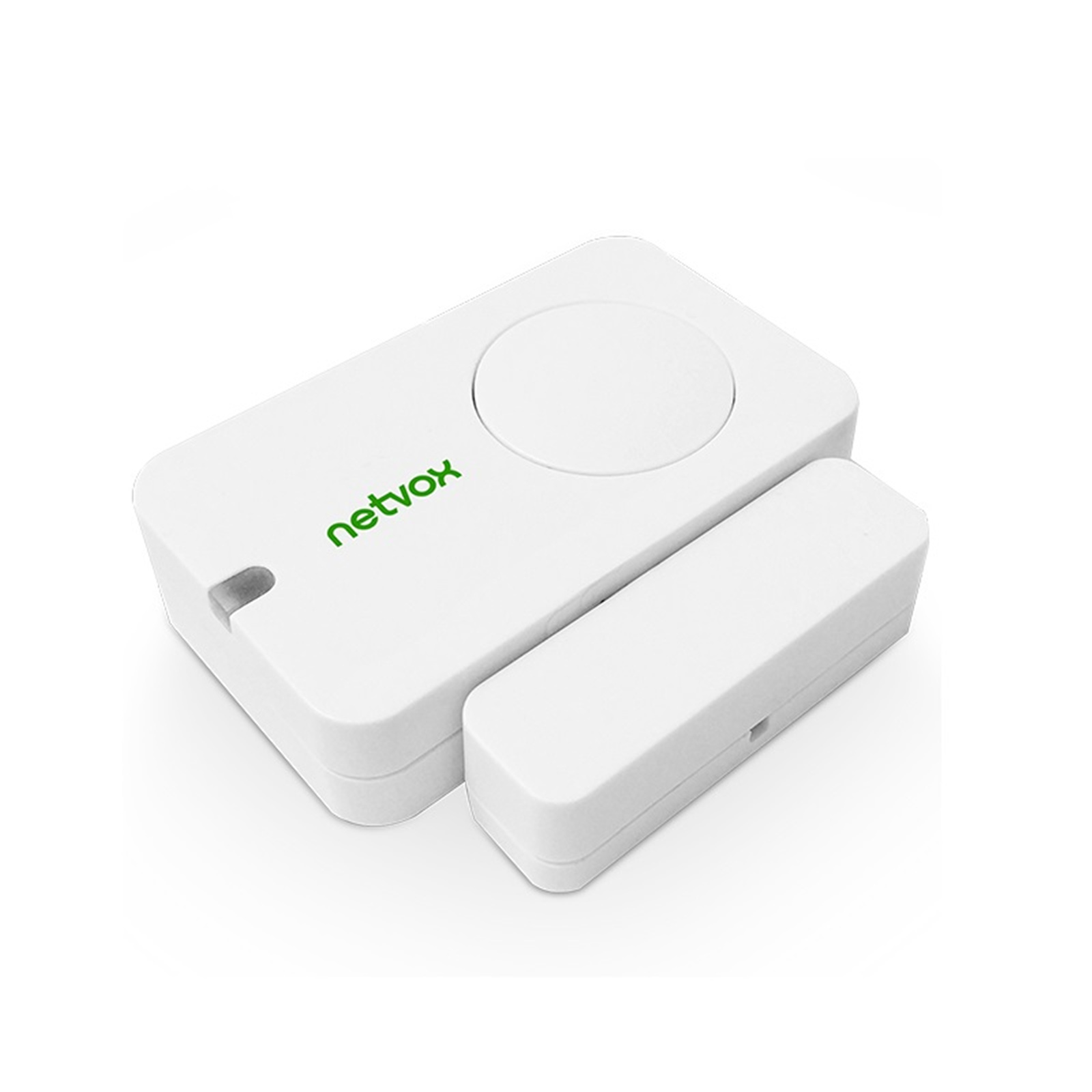

R311A-Wireless Door/Window Sensor
R311A is equipped with a reed sensor, which can be used to detect the status of the door and window. Through the built-in wireless module, it can achieve wireless alarm and other functions. It uses the SX1276 wireless communication module.
- LoRaWAN™ Class A compatible
- 2*3.0V CR2450 button battery power supply
- Reed sensor detection
- Apply SX1276 wireless communication module
- Frequency Hopping Spread Spectrum (FHSS)
- Configuration parameters can be configured through a third-party software platform
- Applicable to third-party platforms: Actility / ThingPark, TTN, MyDevices / Cayenne
- Low power consumption and long battery life Improved
Download data sheet: http://www.netvox.com.tw/um/R311A/R311Adatasheet.pdf
Specifications
Electric:
Power Supply
2 sections 3.0V CR2450 button batteries
Operation Voltage
DC 2.4V to 3.0V
Standby Current
12uA/3.0V
Transmitting Current (max)
120mA / 3.0V
Receiving Current (max)
11mA/ 3.0V
Battery Measurement Accuracy
± 0.1V
Low Voltage Threshold
2.4V
Frequency:
Frequency Range
863MHz-928MHz 470MHz-510MHz
TX Power
US915 20dbm;
AS923 16dbm;
AU915 20dbm;
CN470 19.15dbm;
EU868 16dbm;
KR920 14dbm;
IN865 20dbm;
Receiving Sensitivity
-136dBm(LoRa,Spreading Factor=12,Bit Rate=293bps );
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type
Built-in antenna
Communication Distance
Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )
Data Transfer Rate
LoRa: 0.3kbps~50kbps
FSK: 1.2kbps~300kbps
Modulation
LoRa/FSK (Note: You can choose one of them)
Supportable LoRaWAN Band
EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510
(Note: The frequency band is optional and needs to be configured before shipment)
Physical:
Main Body Dimension
57mm x 35mm x 15.2mm
Magnet Dimension
43mm x 13mm x 12mm
Weight
43.8g
Environment Temperature Range
-20 to 55C
Storage Temperature Range
-40 to 85C
Environment Humidity Range
<90%RH (No condensation)
