Netvox LoRa module Wireless Temperature and Humidity Sensor (Powered by 2 X ER14505 3.6V Lithium AA Battery)

Netvox LoRa module Wireless Temperature and Humidity Sensor (Powered by 2 X ER14505 3.6V Lithium AA Battery)
PB Tech price: PB Tech price:
$136 52  +GST $157 00  inc GST

Generating Print Page

Netvox LoRa module Wireless Temperature and Humidity Sensor (Powered by 2 X ER14505 3.6V Lithium AA Battery)

LoRaWAN Sensors AS923
Part #: IPCNVX4688586
PB Tech price: PB Tech price:
$136 52 $157 00
 +GST  inc GST


Click & Collect: Click & Collect unavailable
Delivery: Order now and it ships on 18/11/2021 When will I receive it?

Six easy payments of $26.95 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Laybuy

Five easy payments of $32.34 per fortnight*

humm lets you spread the cost of your purchase over 5 or 10 interest free payments.

Click the button below or select humm as your payment method during the checkout process.

If you do not have a humm account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about humm

Features

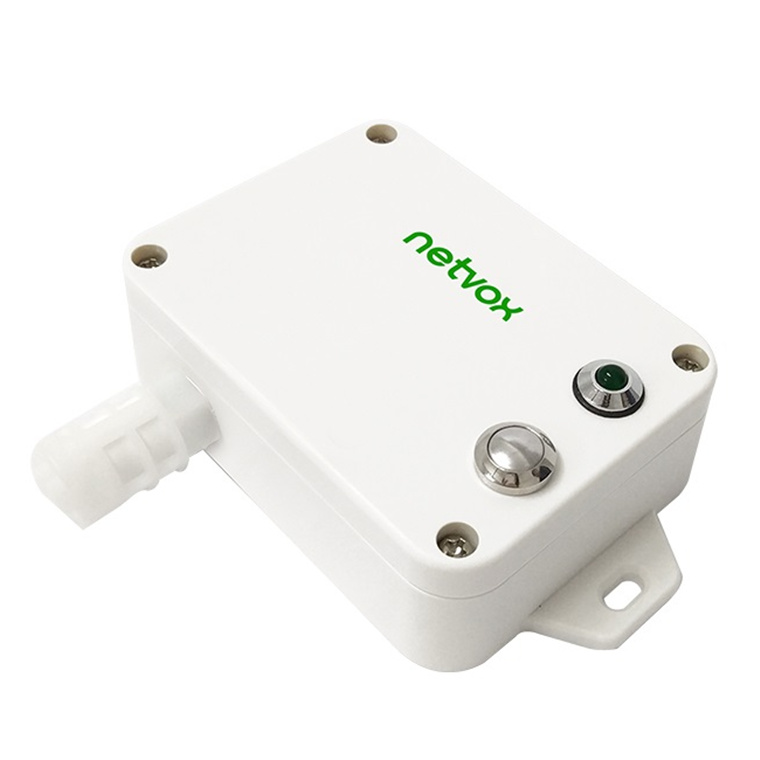

R718AB- Temperature and Humidity Sensor

R718AB is a wireless communication device that detects ambient air temperature and humidity. R718AB can detect the temperature and humidity of the air and transmit the detected data to data center through the wireless network.

- Apply SX1276 wireless communication module
- 2 section of ER14505 battery in parallel (AA SIZE 3.6V / section)
- Temperature and humidity detection
- The base is attached with a magnet that can be attached to a ferromagnetic material object
- Protection class IP65
- LoRaWAN™ Class A compatible
- Frequency Hopping Spread Spectrum (FHSS)
- Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
- Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
- Improved power management for longer battery life



Download data sheet: http://www.netvox.com.tw/um/R718AB/R718ABdatasheet.pdf

Specifications

Electric

Input Power

2 x 3.6V ER14505 AA lithium batteries (3.6V2400mah/section)

Battery Life

5 years
(Conditions: ambient temperature 25 °C, 15 min heartbeats, txpower = 20dBm, LoRa spreading factor SF = 10)

Operating Voltage

DC 3.1V~3.65V

Standy Current

24uA

Wake up Current

6.99mA(Typical value)

Low Battery Voltage Threshold

3.2V

Battery Measurement Accuracy

±0.1V

Module Wake up Current

0.8mA - 8mA @ 3.3V

RF Receiving Current (max)

11mA @3.3V

RF Transmitting Current (max)

120mA @3.3V

Frequency

TX Power

US915 20dbm;
AS923 16dbm;
AU915 20dbm;
CN470 19.15dbm;
EU868 16dbm;
KR920 14dbm;
IN865 20dbm;

Rx Sensitivity

-136dBm (LoRa,Spreading Factor=12, Bit Rate=293bps )
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

Antenna Type

Build-in antenna

Communication Range

10 km (line-of-sight, the actual transmission distance depends on the environment)

Data Transfer Rate

0.3kbps~50kbps

Spread Technique

LoRa/FSK

Available Frequency

US915 AU915 AS923 EU868 KR920 CN470
Configured before shipment

Physical

Dimension

Main Body: L: 112mm*W: 65mm*H: 28mm
Sensor cover size: D: 16mm*L: 27mm,

Weight

141g

Environment Temperature Range

-20 ~ 55C

Environment Humidity Range

<90% RH  (No condensation)

Storage Temperature

-40 ~ 85C

Manufacturer Part No:
R718AB
Brand:
Netvox
Product Type:
LoRa module
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
IPCNVX4688586
Product Model:
-
Warranty: 24 months *
