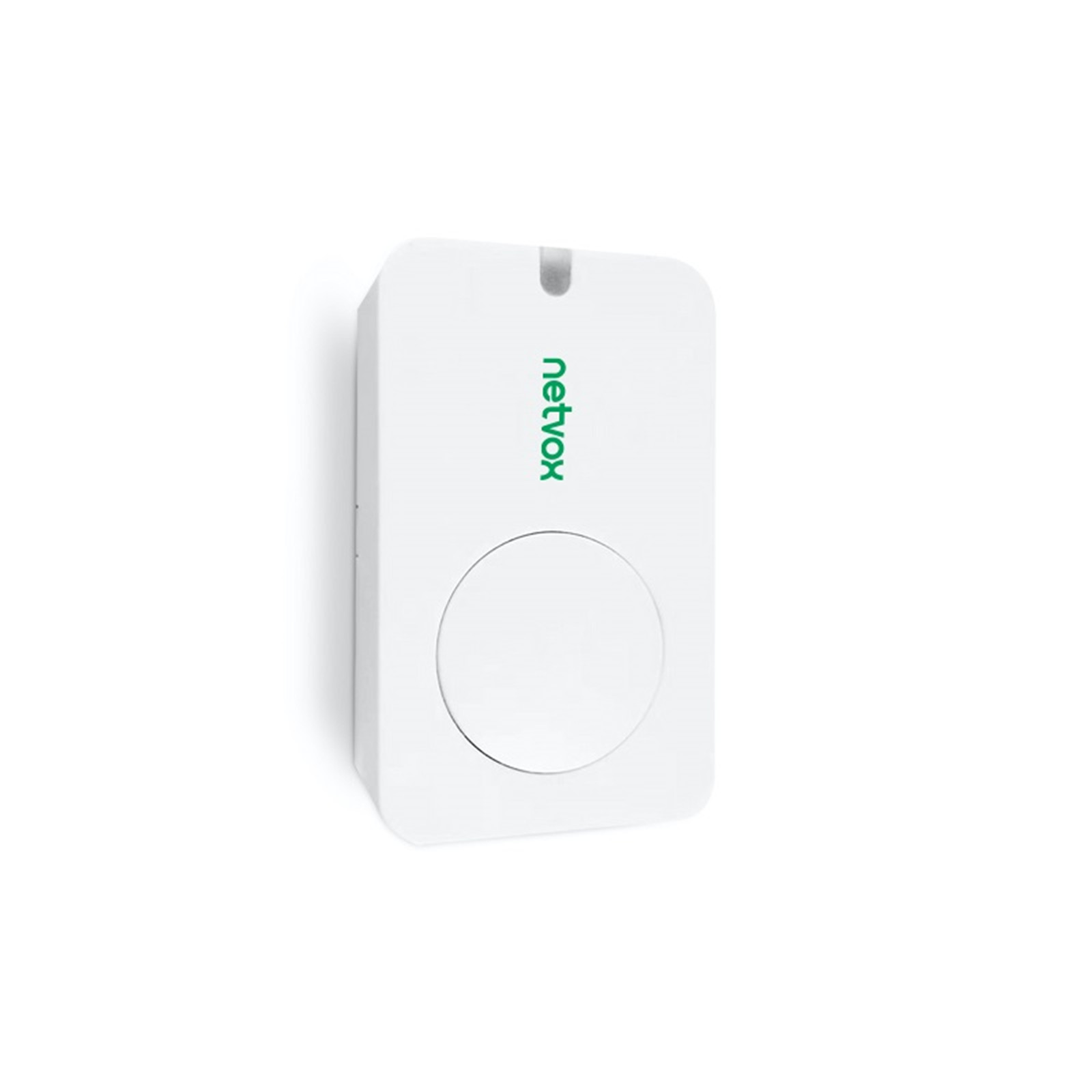

Netvox LoRa module Wireless Asset Sensor (Powered by 2 X CR2450 Battery)
Out of stock
Netvox LoRa module Wireless Asset Sensor (Powered by 2 X CR2450 Battery)
- Brand: Netvox
- MPN: R311D
- Part #: IPCNVX4808823
- UPC:
- Brand: Netvox
- MPN: R311D
- Part #: IPCNVX4808823
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT





Netvox LoRa module Wireless Asset Sensor (Powered by 2 X CR2450 Battery)
- Brand: Netvox
- MPN: R311D
- Part #: IPCNVX4808823

Product URL: https://www.pbtech.co.nz/product/IPCNVX4808823/Netvox-LoRa-module-Wireless-Asset-Sensor-Powered-b
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
R311D-Wireless Asset Sensor
The device is a simple positioning function (which can detect the position status of the device), periodically reports RSSI and SNR information to the gateway for processing and can locate the position status of the device according to the reported RSSI and SNR information, and adopts SX1276 wireless communication module.
- LoRaWAN™ Class A compatible
- 2*3.0V CR2450 button battery power supply
- RSSI / SNR detection
- Apply SX1276 wireless communication module
- Frequency Hopping Spread Spectrum (FHSS)
- Configuration parameters can be configured through a third-party software platform
- Applicable to third-party platforms: Actility / ThingPark, TTN, MyDevices / Cayenne
- Low power consumption and long battery life Improved
Download data sheet: http://www.netvox.com.tw/um/R311D/R311Ddatasheet.pdf
Specifications
Electric:
Input Power
2pcs 3.0V CR2450 button battery
Working Voltage
DC 2.4V~3.0V
Standby Current
16uA /3.0V
Transmitting Current (max)
120mA / 3.0V
Receiving Current (max)
11mA / 3.0V
Battery Voltage Measurement Accuracy
±0.1V
Frequency:
Frequency Range
863MHz-928MHz 470MHz-510MHz
TX Power
US915 20dbm;
AS923 16dbm;
AU915 20dbm;
CN470 19.15dbm;
EU868 16dbm;
KR920 14dbm;
IN865 20dbm;
Receiving Sensitivity
-136dBm(LoRa,Spreading Factor=12,Bit Rate=293bps );
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type
Built-in antenna
Communication Distance
Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )
Data Transfer Rate
LoRa: 0.3kbps~50kbps
FSK: 1.2kbps~300kbps
Modulation
LoRa/FSK (Note: You can choose one of them)
Supportable LoRaWAN Band
EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510
(Note: The frequency band is optional and needs to be configured before shipment)
Physical:
Main Body Dimension
57mm x 35mm x 15.2mm
Weight
48.9 g
Operating Temperature
-20 ~ 55C
Environment Humidity Range
<90% RH (No condensation)
Storage Temperature
-40 ~ 85C
