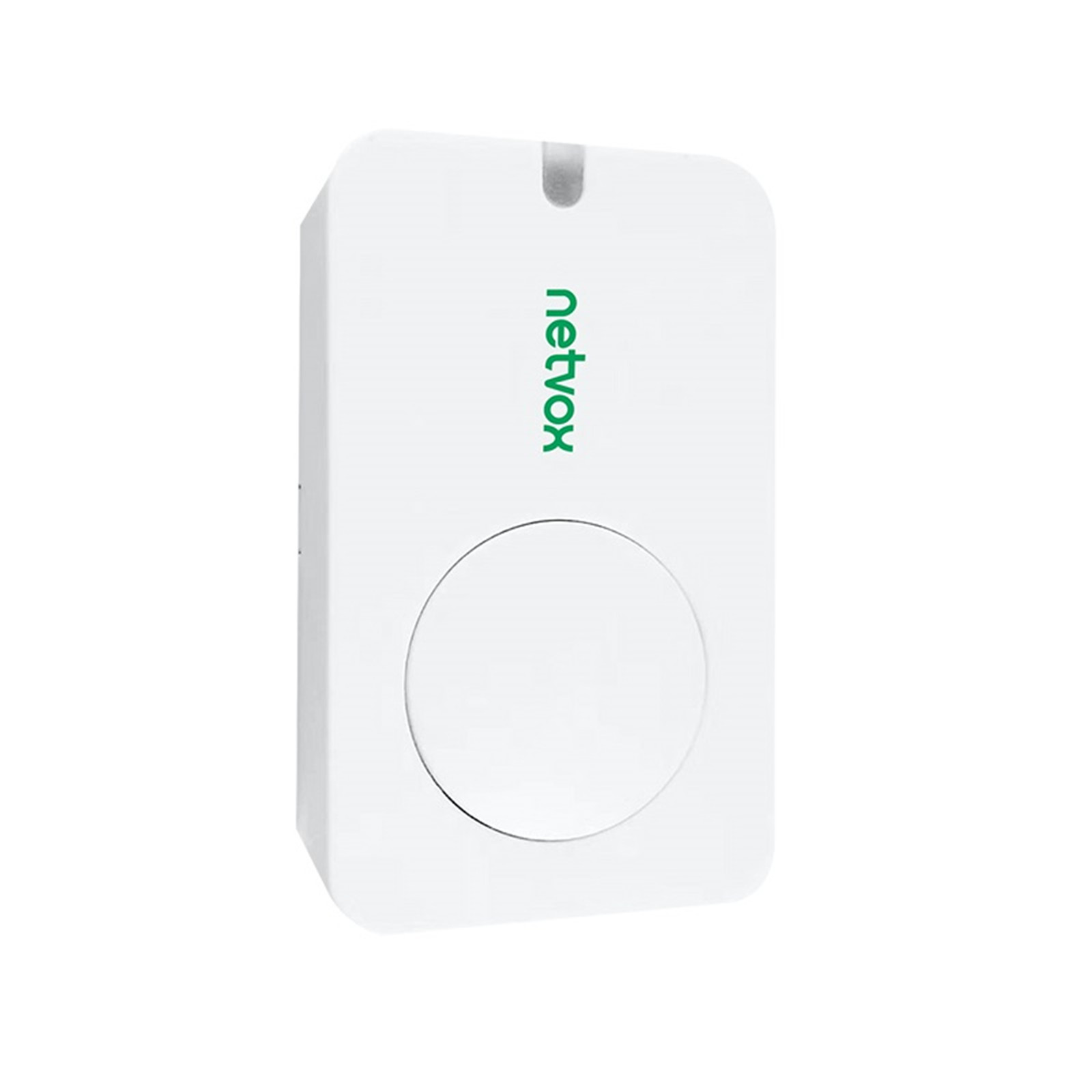

Netvox LoRa module Wireless Activity Timer (Powered by 2 X CR2450 Battery)
Out of stock
Netvox LoRa module Wireless Activity Timer (Powered by 2 X CR2450 Battery)
- Brand: Netvox
- MPN: R311FC
- Part #: IPCNVX4808836
- UPC:
- Brand: Netvox
- MPN: R311FC
- Part #: IPCNVX4808836
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT





Netvox LoRa module Wireless Activity Timer (Powered by 2 X CR2450 Battery)
- Brand: Netvox
- MPN: R311FC
- Part #: IPCNVX4808836

Product URL: https://www.pbtech.co.nz/product/IPCNVX4808836/Netvox-LoRa-module-Wireless-Activity-Timer-Powered
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
R311FC - Wireless Activity Timer
The device detects the duration of the movement or vibration (timekeeping) and sends the duration or timing information of the movement or vibration to the gateway for processing. The duration of the movement or vibration can be up to 1000 hours (theoretical value). Apply SX1276 wireless communication module.
- Wireless range of 10 km *1
- LoRaWAN™ Class A compatible
- Frequency Hopping Spread Spectrum (FHSS)
- Improved interference immunity
- Improved power management for longer battery life
- Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
- Battery Life*2: 5 years (Conditions: ambient temperature 25 °C, 20 triggers/day, txpower = 20dBm, LoRa spreading factor SF = 10)
- Over-the-air updates (future)
- Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
- Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
*1. Actual range may vary depending on environment.
*2. Battery life is determined by sensor reporting frequency and other variables
Download data sheet: http://www.netvox.com.tw/um/R311FC/R311FCdatasheet.pdf
Specifications
Electric:
Input Power
2pcs 3.0V CR2450 button battery
Working Voltage
DC 2.4V~3.0V
Standby Current
42 uA /3.0V
Transmitting Current (max)
120 mA / 3.0V
Receiving Current (max)
11 mA / 3.0V
Battery Voltage Measurement Accuracy
±0.1V
Frequency:
TX Power
19dBm±1dBm
Rx Sensitivity
-136dBm
(LoRa,Spreading Factor=12,Bit Rate=293bps )
-121dBm
(FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type
Build-in antenna
Communication Range
10 km (line-of-sight, the actual transmission distance depends on the environment)
Data Transfer Rate
0.3kbps~50kbps
Spread Technique
LoRa/FSK
Available Frequency
EU863-870,US902-928,AU915-928,
KR920-923,AS923,CN470-510
Configured before shipment
Physical:
Main Body Dimension
57mm x 35mm x 14mm
Weight
48.9 g
Operating Temperature
-20 ~ 55C
Environment Humidity Range
<90% RH (No condensation)
Storage Temperature
-40 ~ 85C
