Features

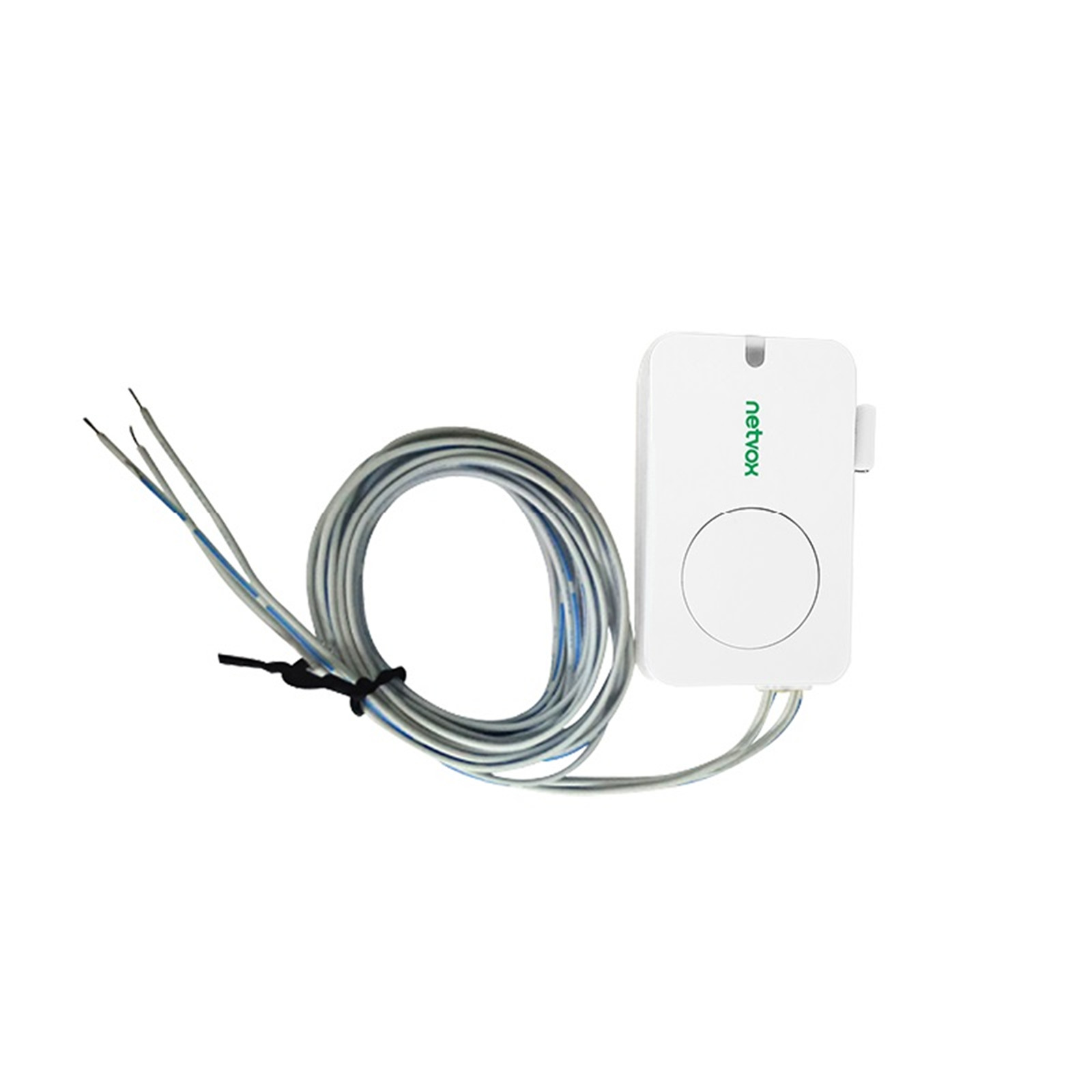

R313CA-Wireless Dry Contact Sensor
R313CA is connected with two external dry contacts for customers to access the device under test, such as switches, buttons, sensors, relays, reed switches, etc. R313CA can detect the electrical level change of the device under test. At the same time, it can realize wireless alarm and other functions through the built-in wireless module
- LoRaWANTM Class A compatible
- 2*3.0V CR2450 button battery power supply
- Dry contact detection
- Apply SX1276 wireless communication module
- Frequency Hopping Spread Spectrum (FHSS)
- Configuration parameters can be configured through a third-party software platform
- Applicable to third-party platforms: Actility / ThingPark, TTN, MyDevices / Cayenne
- Low power consumption and long battery life Improved
Download data sheet: http://www.netvox.com.tw/um/R313CA/R313CAdatasheet.pdf
Specifications
Electric:
Power Supply
2 sections 3.0V CR2450 button battery
Work Voltage Range
DC +2. 4 V to 3.0V
Standby Voltage
10uA/3.0V
Transmitting Current (max)
120mA / 3.0V
Receiving Current (max)
11mA/ 3.0V
Battery Measurement Accuracy
± 0.1V
Frequency:
TX power
US915 20dbm;
AS923 16dbm;
AU915 20dbm;
CN470 19.15dbm;
EU868 16dbm;
KR920 14dbm;
IN865 20dbm;
Rx sensitivity
-121dBm (Frequency deviation=5kHz,Bit Rate=1.2kb/s)
-136dBm (LoRa,Spreading Factor=12, Bit Rate=293bps) /p>
Antenna type
External antenna
Communication range
Up to 10 km, the actual transmission distance depends on the environment
Data transfer rate
0.3kbps~50kbps
Modulation
LoRa/FSK
Supportable LoRaWAN Band
EU863-870, US902-928, AU915-928, KR920-923, AS923, CN470-510(Note: The frequency band is optional and needs to be configured before shipment)
Physical:
Dimension
57mm x 38.05mm x 14mm
Weight
48.9g
Ambient Temperature Range
-20 to 55C
Ambient Humidity Range
<90% RH (No condensation)
Storage Temperature
-40 to 85C
