Features

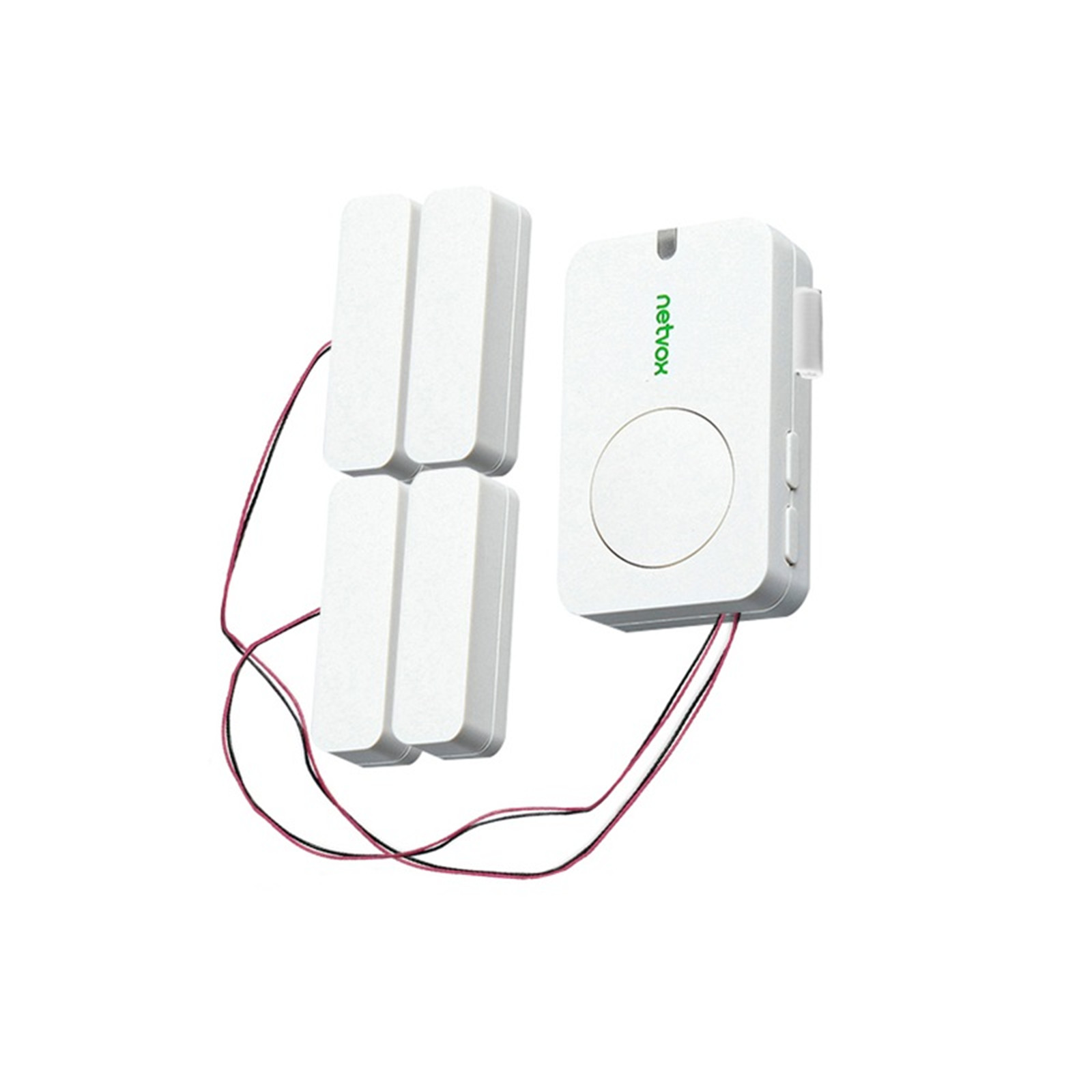

R313CC-Wireless 2-Gang Door/Window Sensor
R313CC is equipped with two external reed switches, which can be used for door and window switch state detection. The built-in wireless module can realize wireless alarm and other functions, and is compatible with the LoRaWAN protocol.
- Adopt SX1276 wireless communication module
- 2 x 3.0V CR2450 button batteries
- 2-gang reed switch status detection
- Compatible with LoRaWAN™ Class A
- Frequency Hopping Spread Spectrum (FHSS)
- Configuration parameters can be configured through a third-party software platform
- Applicable to third-party platforms: Actility / ThingPark, TTN, MyDevices / Cayenne
- Low power consumption and long battery life Improved
Download data sheet: http://www.netvox.com.tw/um/R313CC/R313CCdatasheet.pdf
Specifications
Electric:
Power Supply
2 x 3.0V CR2450 button batteries
Operation Voltage
DC 2.4V to 3.0V
Standby Current
10uA/3.0V
Transmitting Current (max)
120mA / 3.0V
Receiving Current (max)
11mA/ 3.0V
Battery Measurement Accuracy
± 0.1V
Low Voltage Threshold
2.4V
Frequency:
Frequency Range
863MHz-928MHz 470MHz-510MHz
TX Power
US915 20dbm;
AS923 16dbm;
AU915 20dbm;
CN470 19.15dbm;
EU868 16dbm;
KR920 14dbm;
IN865 20dbm;
Receiving Sensitivity
-136dBm(LoRa,Spreading Factor=12,Bit Rate=293bps );
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type
External antenna
Communication Distance
Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )
Data Transfer Rate
LoRa: 0.3kbps~50kbps
FSK: 1.2kbps~300kbps
Modulation
LoRa/FSK (Note: You can choose one of them)
Supportable LoRaWAN Band
EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510
(Note: The frequency band is optional and needs to be configured before shipment)
Physical:
Main Body Dimension
57mm x 38.05mm x 15mm
Weight
48.9g
Operating Temperature
-20°C ~ 55°C
Storage Temperature
-40°C ~ 85°C
Ambient Humidity
<90%RH (No condensation)
