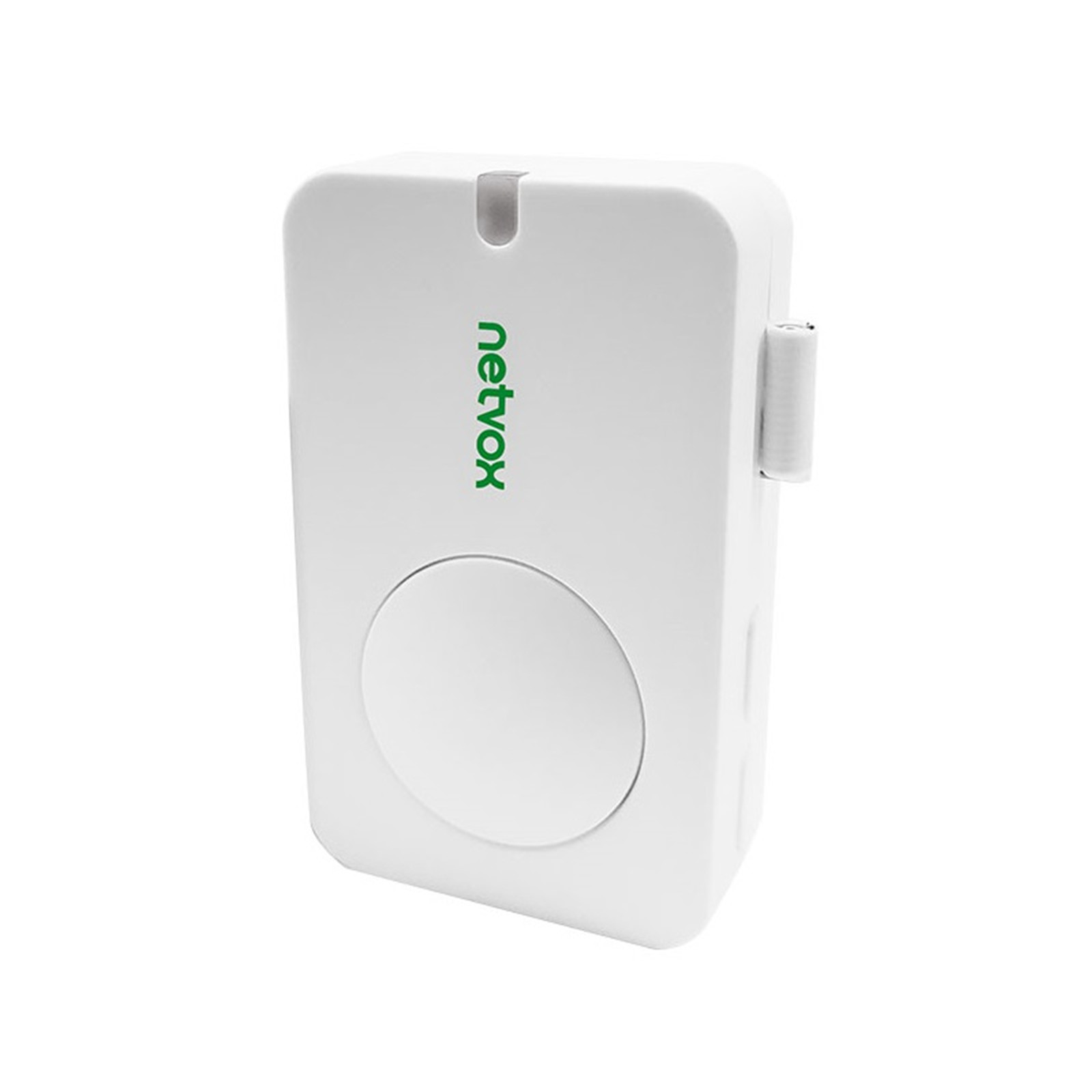

Netvox LoRa module Wireless Activity Detection Sensor (Powered by 2 X CR2450 Battery)
Out of stock
Netvox LoRa module Wireless Activity Detection Sensor (Powered by 2 X CR2450 Battery)
- Brand: Netvox
- MPN: R313FA
- Part #: IPCNVX4808846
- UPC:
- Brand: Netvox
- MPN: R313FA
- Part #: IPCNVX4808846
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT





Netvox LoRa module Wireless Activity Detection Sensor (Powered by 2 X CR2450 Battery)
- Brand: Netvox
- MPN: R313FA
- Part #: IPCNVX4808846

Product URL: https://www.pbtech.co.nz/product/IPCNVX4808846/Netvox-LoRa-module-Wireless-Activity-Detection-Sen
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
R313FA-Wireless Activity Detection Sensor
It can detect the sudden movement or vibration of the device and send an alarm signal to the gateway for processing. It uses the SX1276 wireless communication module.
- LoRaWANTM Class A compatible
- 2*3.0V CR2450 button battery power supply
- Vibration status detection
- Apply SX1276 wireless communication module
- Frequency Hopping Spread Spectrum (FHSS)
- Configuration parameters can be configured through a third-party software platform
- Applicable to third-party platforms: Actility / ThingPark, TTN, MyDevices / Cayenne
- Low power consumption and long battery life Improved
Specifications
Electric:
Input Power
2pcs 3.0V CR2450 button battery
Working Voltage
DC 2.4V~3.0V
Standby Current
40uA /3.0V
Transmitting Current (max)
120mA / 3.0V
Receiving Current (max)
11mA / 3.0V
Battery Voltage Measurement Accuracy
±0.1V
Frequency:
Frequency Range
863MHz-928MHz 470MHz-510MHz
TX Power
US915 20dbm;
AS923 16dbm;
AU915 20dbm;
CN470 19.15dbm;
EU868 16dbm;
KR920 14dbm;
IN865 20dbm;
Rx Sensitivity
-136dBm
(LoRa,Spreading Factor=12,Bit Rate=293bps )
-121dBm
(FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type
External antenna
Communication Range
Up to10 km, the actual transmission distance depends on the environment.
Data Transfer Rate
0.3kbps~50kbps
Spread Technique
LoRa/FSK
Available Frequency
EU863-870,US902-928,AU915-928,
KR920-923,AS923,CN470-510
Configured before shipment
Physical:
Main Body Dimension
57mm x 38.05mm x 15.2mm
Weight
48.9 g
Operating Temperature
-20°C ~ 55°C
Environment Humidity Range
<90% RH (No condensation)
Storage Temperature
-40 ~ 85°C
