Features

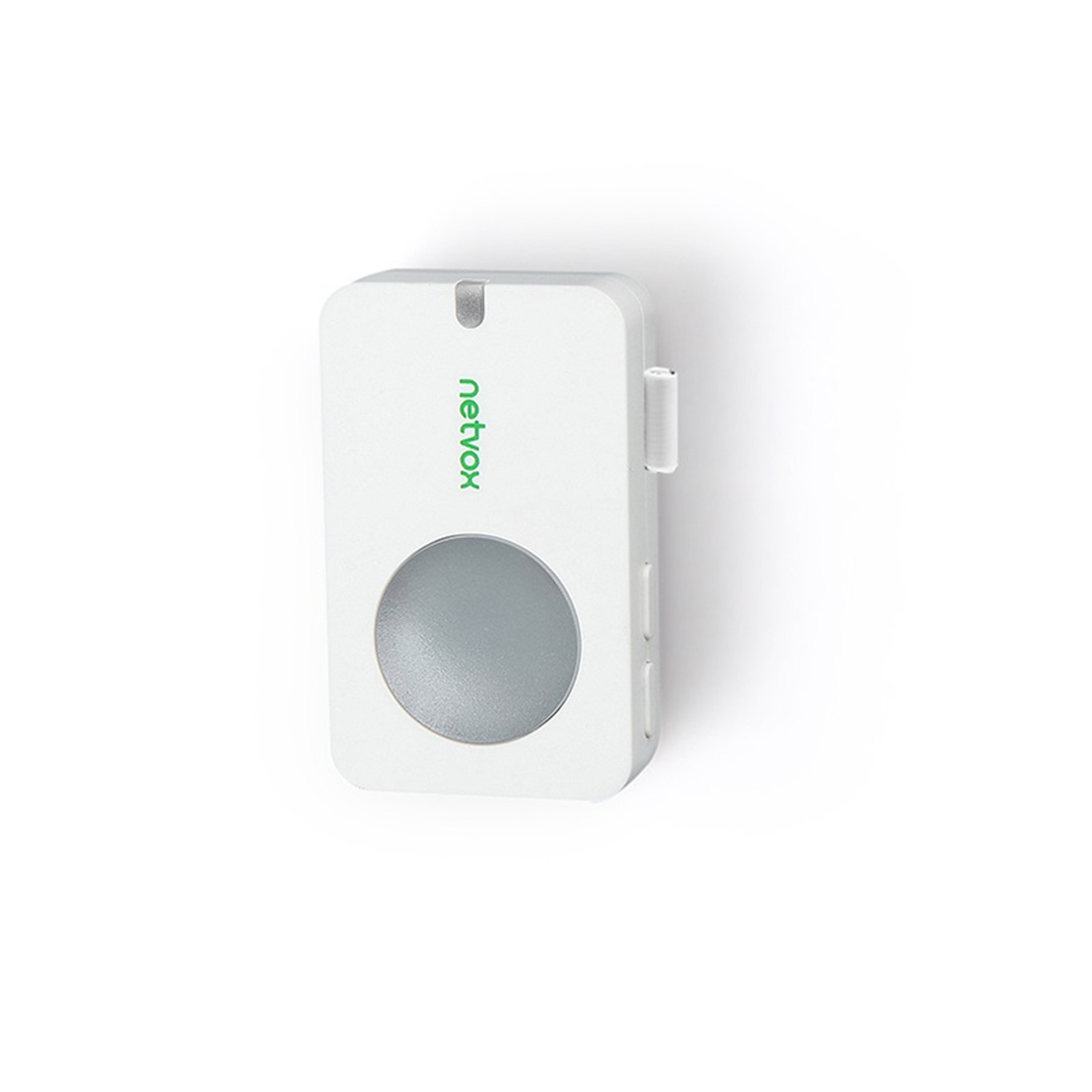

R313G-Wireless Light Sensor
R313G built-in photosensitive sensor, can be used for external ambient light intensity detection. R313G is the environmental illuminance automatic detector and the reporter which can send out the environmental illumination report and is a low-power, long range, wireless sensor that can accurately detect environmental illuminance indoor.
- LoRaWAN™ Class A compatible
- 2*3.0V CR2450 button battery power supply
- Illuminance detection
- Apply SX1276 wireless communication module
- Frequency Hopping Spread Spectrum (FHSS)
- Configuration parameters can be configured through a third-party software platform
- Applicable to third-party platforms: Actility / ThingPark, TTN, MyDevices / Cayenne
- Low power consumption and long battery life Improved
Download data sheet: http://www.netvox.com.tw/um/R313G/R313Gdatasheet.pdf
Specifications
Electric:
Power Supply
2 sections 3.0V CR2450 button batteries
Operation Voltage
DC 2.4V to 3.0V
Standby Current
12uA/3.0V
Transmitting Current (max)
120mA / 3.0V
Receiving Current (max)
11mA/ 3.0V
Battery Measurement Accuracy
± 0.1V
Illuminance Detecting Range
1~3000 lux
Illumination Accuracy
<15%
Frequency:
Frequency Range
863MHz-928MHz 470MHz-510MHz
TX Power
US915 20dbm;
AS923 16dbm;
AU915 20dbm;
CN470 19.15dbm;
EU868 16dbm;
KR920 14dbm;
IN865 20dbm;
Receiving Sensitivity
-136dBm(LoRa,Spreading Factor=12,Bit Rate=293bps );
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type
External antenna
Communication Distance
Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )
Data Transfer Rate
0.3kbps~50kbps
Modulation
LoRa/FSK (Note: You can choose one of them)
Supportable LoRaWAN Band
EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510
(Note: The frequency band is optional and needs to be configured before shipment)
Physical:
Main Body Dimension
57mm x 38.05mm x 15.2mm
Weight
32.3g
Operating Temperature
-20 ~ 55C
Storage Temperature Range
-40°C ~ 85°C
Environment Humidity Range
<90%RH
