Features

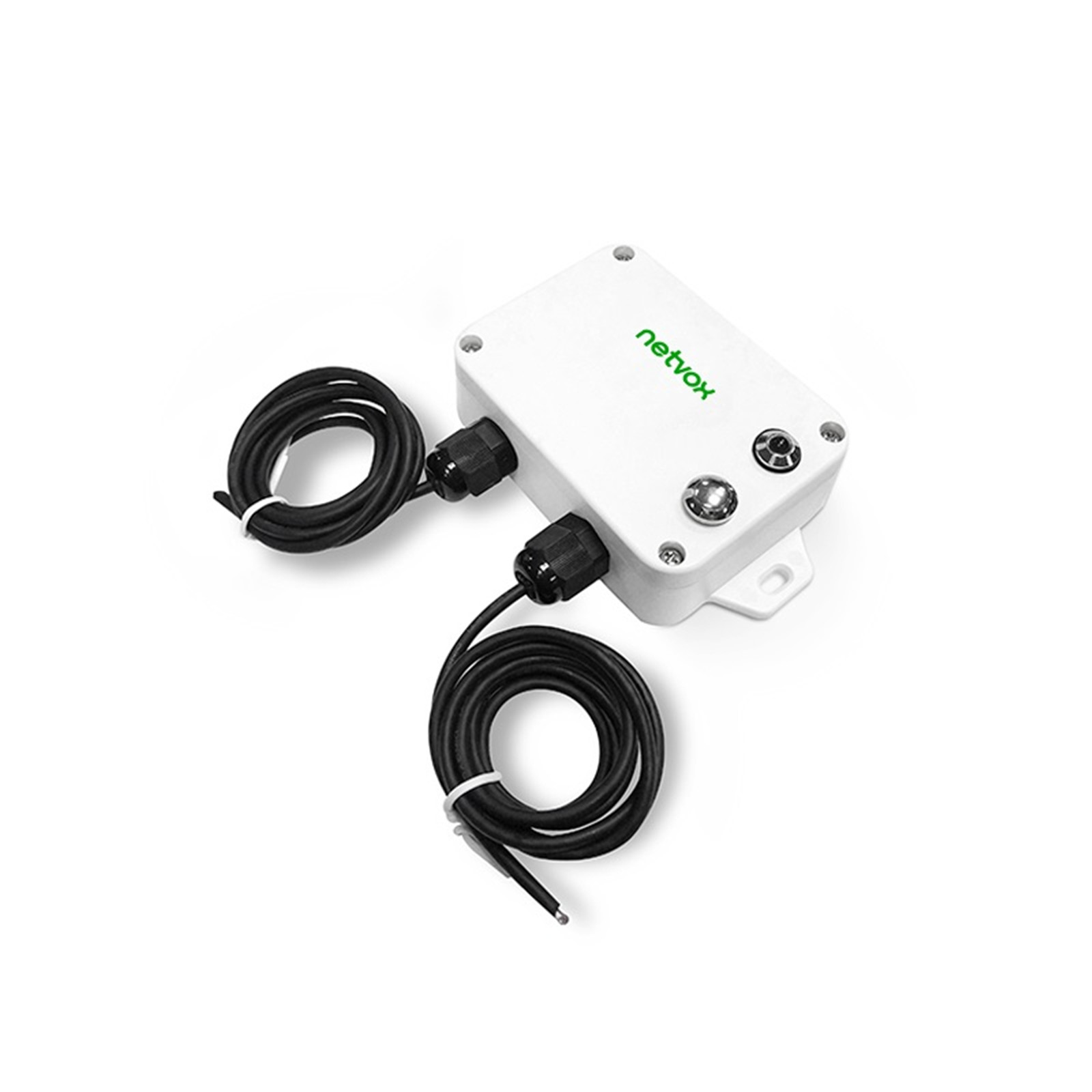

R718H2-Wireless 2-Input Pulse Counter
The device is connected with two pulse detection interfaces, which can calculate the number of pulses and send the detected number of pulses to the gateway display. It uses the SX1276 wireless communication module.
- LoRaWAN™ Class A compatible
- Frequency Hopping Spread Spectrum (FHSS)
- Improved interference immunity
- Improved power management for longer battery life
- Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
- Over-the-air updates (future)
- Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
- Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
- R718X series carry magnets which can be attached to ferromagnetic materials and objects
Battery Life*2:
Please refer to web: http://www.netvox.com.tw/electric/electric_calc.html
At this website, users can find battery life time for varier models at different configurations.
*1. Actual range may vary depending on environment.
*2. Battery life is determined by sensor reporting frequency and other variables
Download data sheet: http://www.netvox.com.tw/um/R718H2/R718H2datasheet.pdf
Specifications
Electric:
Input Power
2 x 3.6V ER14505 AA lithium batteries
(3.6V2400mah/section)
Sleeping Mode
24 uA
Wake up Mode
Receiving Current (max)
11mA @3.3V
Transmitting Current (max)
120mA/3.3V
Battery Voltage Measurement Accuracy
±0.1V
Frequency:
TX Power
US915 20dbm;
AS923 16dbm;
AU915 20dbm;
CN470 19.15dbm;
EU868 16dbm;
KR920 14dbm;
IN865 20dbm;
Rx Sensitivity
-136dBm (LoRa,Spreading Factor=12, Bit Rate=293bps )
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type
Build-in antenna
Communication Range
10 km (line-of-sight, the actual transmission distance depends on the environment)
Data Transfer Rate
0.3kbps~50kbps
Spread Technique
LoRa/FSK
Available Frequency
EU863-870, US902-928, AU915-928, KR920-923, AS923, CN470-510
Configured before shipment
Physical:
Dimension
Main Part: L: 112mm*W: 65mm*H: 32mm
Weight
160g
Environment Temperature Range
-20 ~ 55C
Environment Humidity Range
<90% RH (No condensation)
Storage Temperature
-40 ~ 85C
