Netvox LoRa module Wireless Asset Sensor (Powered by 2 X ER14505 3.6V Lithium AA Battery)
Out of stock
Netvox LoRa module Wireless Asset Sensor (Powered by 2 X ER14505 3.6V Lithium AA Battery)
- Brand: Netvox
- MPN: R718MA
- Part #: IPCNVX4808879
- UPC:
- Brand: Netvox
- MPN: R718MA
- Part #: IPCNVX4808879
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT





Netvox LoRa module Wireless Asset Sensor (Powered by 2 X ER14505 3.6V Lithium AA Battery)
- Brand: Netvox
- MPN: R718MA
- Part #: IPCNVX4808879

Product URL: https://www.pbtech.co.nz/product/IPCNVX4808879/Netvox-LoRa-module-Wireless-Asset-Sensor-Powered-b
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

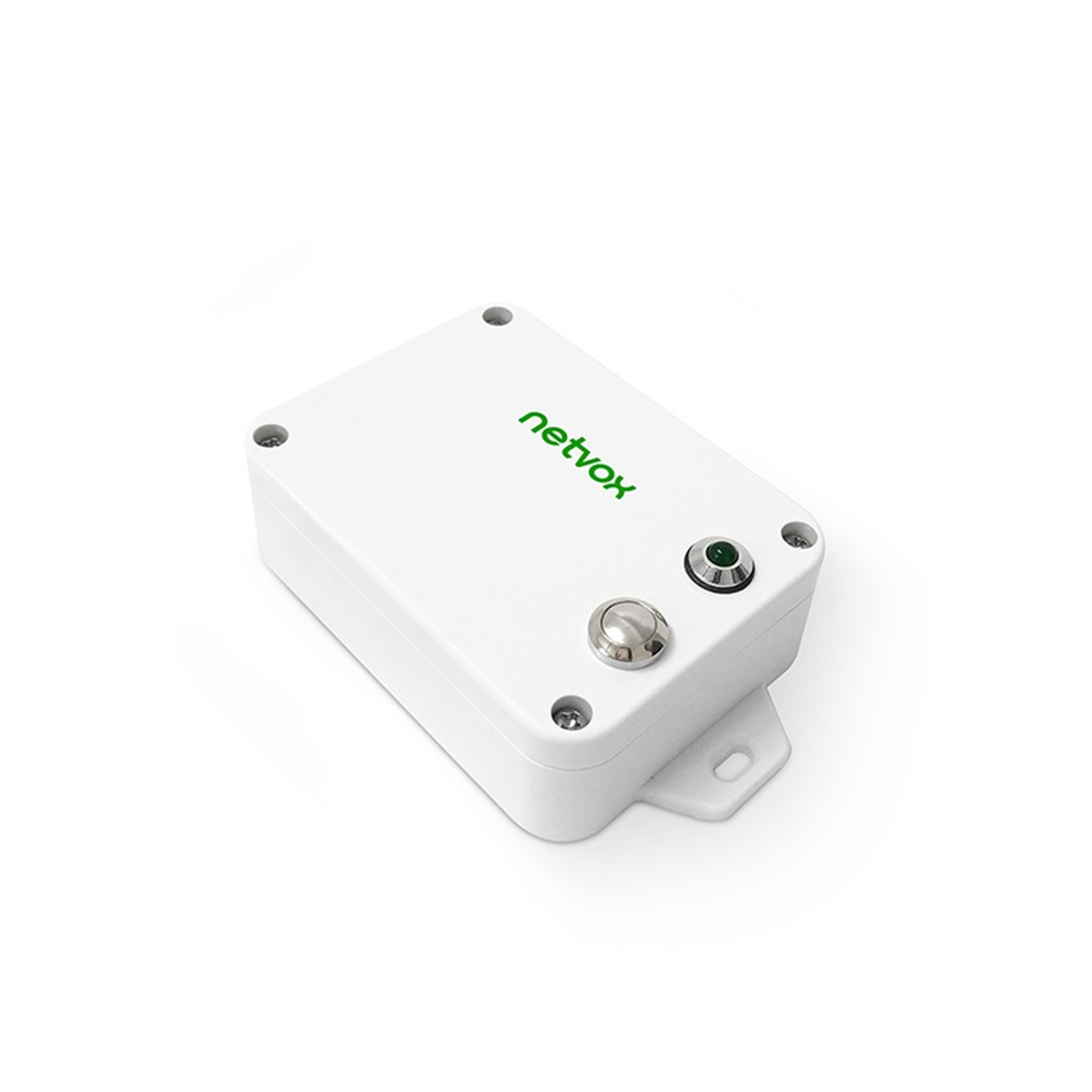

R718MA -Wireless Asset Sensor
R718MA has a simple positioning function. The device reports its RSSI, SNR information periodically to the gateway. It can be attached to an object, and it sends an alert when it is removed from the premises. The communication is fully compatible with LoRaWAN™ protocol (Class A).
- Wireless range of 10km *1
- LoRaWAN™ Class A compatible
- Frequency Hopping Spread Spectrum (FHSS)
- Improved interference immunity
- Improved power management for longer battery life
- Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
- Over-the-air updates (future)
- Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional).
- Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
- R718X series carry magnets which can be attached to ferromagnetic materials and objects
Battery Life*2:
Please refer to web: http://www.netvox.com.tw/electric/electric_calc.html
At this website, users can find battery life time for varier models at different configurations.
*1. Actual range may vary depending on environment.
*2. Battery life is determined by sensor reporting frequency and other variables.
Download data sheet: http://www.netvox.com.tw/um/R718MA/R718MAdatasheet.pdf
Specifications
Electric:
Input Power
2 x 3.6V ER14505 AA lithium batteries
(3.6V 2400mah/section)
Sleeping Mode
22 uA
Wake up Mode
Receiving Current (max)
11mA @3.3V
Transmitting Current (max)
120mA/3.3V
Battery Voltage Measurement Accuracy
±0.1V
Low Voltage Threshold
3.2V
Frequency:
TX Power
19dBm±1dBm
Rx Sensitivity
-136dBm (LoRa,Spreading Factor=12, Bit Rate=293bps )
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type
Build-in antenna
Communication Range
10 km (line-of-sight, the actual transmission distance depends on the environment)
Data Transfer Rate
0.3kbps~50kbps
Spread Technique
LoRa/FSK
Available Frequency
US915 AU915 AS923 EU868 KR920 CN470
Configured before shipment
Physical:
Dimension
Main Part: L: 112mm*W: 65mm*H: 32mm
Weight
141g
Environment Temperature Range
-20 ~ 55C
Environment Humidity Range
<90% RH (No condensation)
Storage Temperature
-40 ~ 85C
IP Rating (Main Part)
IP67
IP Rating (External Sensor)
IP67
