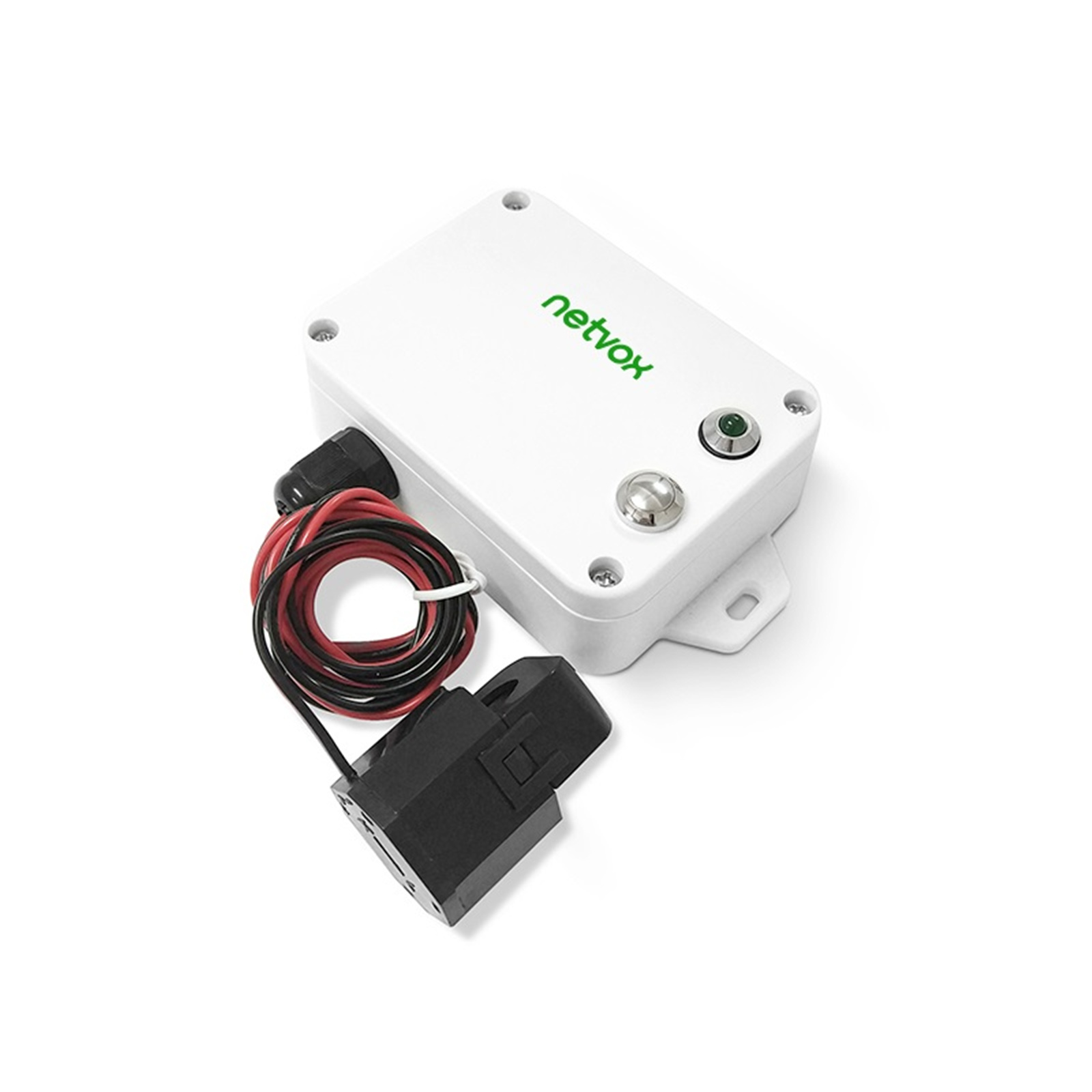

R718N17-Wireless 1-Phase Current Meter with 1 x 75A Clamp-On CT
The NETVOX wireless single-phase current detector is used to detect single-phase electrical input current. The device is compatible with the LoRaWAN protocol, and integrates a chip module that conforms to the LoRaWAN wireless protocol to display the collected data in the gateway.
- Apply SX1276 wireless communication module
- 2 ER14505 battery (3.6V/section) in parallel power supply
- Protection level: host body IP53, sensor IP30
- The base is attached with a magnet that can be attached to a ferromagnetic material object
- Adopt clamp-on current transformer, it can be easily connected with the device to be monitored
- LoRaWANTM Class A compatible
- Frequency Hopping Spread Spectrum (FHSS)
- Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
- Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
- Improved power management for longer battery life
Battery Life*2:
Please refer to web: http://www.netvox.com.tw/electric/electric_calc.html
At this website, users can find battery lifetime for various models at different configurations.
*1. Actual range may vary depending on environment.
*2. Battery life is determined by sensor reporting frequency and other variables
Download data sheet: http://www.netvox.com.tw/product.asp?pro=R718N17
Specifications
Electric:
Input Power
2 x 3.6V ER14505 AA Size lithium batteries
(3.6V2400mah/section)
Standby Current
25uA
Receiving Current (max)
11mA @3.3V
Transmitting Current (max)
127mA/3.3V
Battery Measurement Accuracy Accuracy
±0.1V
Current Resolution
1mA
Current Measurement Range
100mA to 75A
(varies according to the configuration of the current transformer)
Frequency:
Frequency Range
863MHz-928MHz 470MHz-510MHz
TX Power
US915 20dbm;
AS923 16dbm;
AU915 20dbm;
CN470 19.15dbm;
EU868 16dbm;
KR920 14dbm;
IN865 20dbm;
Receiving Sensitivity
-136dBm(LoRa,Spreading Factor=12,Bit Rate=293bps );
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type
Built-in antenna
Communication Distance
Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )
Data Transfer Rate
LoRa: 0.3kbps~50kbps
FSK: 1.2kbps~300kbps
Modulation
LoRa/FSK (Note: You can choose one of them)
Supportable LoRaWAN Band
EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510
(Note: The frequency band is optional and needs to be configured before shipment)
Physical:
Main Body Dimension
Host body: L: 112 mm *W: 88.19 mm *H: 32 mm
Sensor: H:37.5 *L:39 *W:14
Host body Weight
About 141 g
Sensor Weight
About 49.6g
Sensor External Wiring Length
About 900mm
Environment Temperature Range
-20 ~ 55C
Storage Temperature Range
-40~85C
Environment Humidity Range
<90%RH (No condensation)
Mounting
Screw / Magnet
