Features

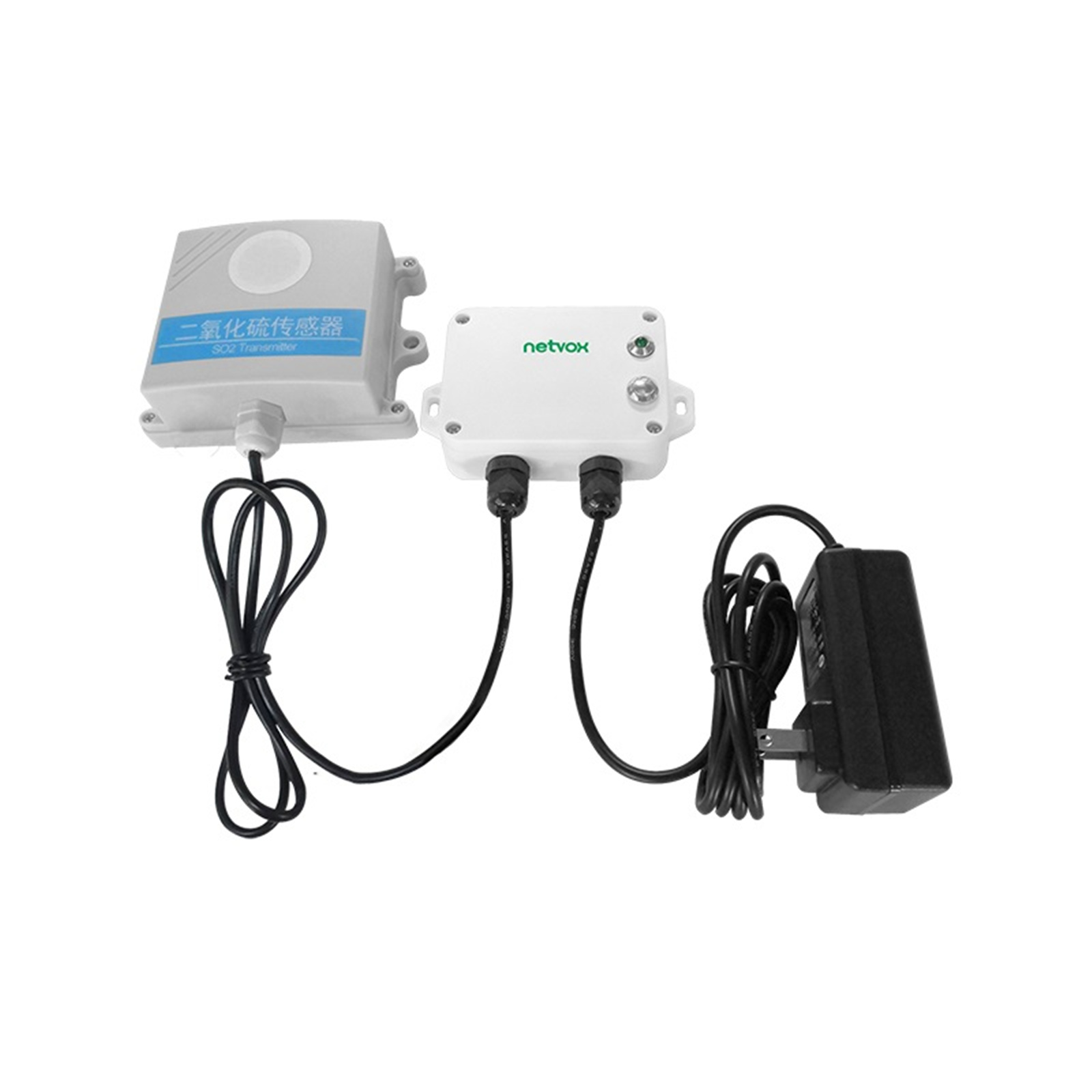

R718PA6-Wireless SO2 Sensor
The R718PA6 is a wireless communication device that detects SO2 concentration in ambient air. The main unit and SO2 sensor communicate via the RS485 connection interface, and it sends detected data to the other equipment via wireless network compliance LoRaTM wireless communication protocol standards.
-Adopt SX1276 wireless communication module
- 12V DC power supply
- SO2 detection The base is equipped with a magnet that can be attached to the iron object
- Main body protection level IP65/IP67 (Optional)
- Compatible with LoRaWANTM Class A
- Frequency hopping spread spectrum technology
- Configuring parameters and reading data via the third-party software platforms, and set alarms via SMS text and email (optional)
- Applicable to third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenne
Download data sheet: http://www.netvox.com.tw/um/R718PA6/R718PA6datasheet.pdf
Specifications
Electric:
Power Supply
DC12V
Operating Current
<70mA (external sensor)
SO2 Measurement Range
0 to 20ppm
SO2 Measurement Method
Electrochemical sensors
SO2 Measurement Accuracy
= ± 3 % of reading (@25 ° C)
Response Time
Usually less than 15 seconds
Frequency:
Frequency Range
863MHz-928MHz 470MHz-510MHz
TX Power
US915 20dbm;
AS923 16dbm;
AU915 20dbm;
CN470 19.15dbm;
EU868 16dbm;
KR920 14dbm;
IN865 20dbm;
Receiving Sensitivity
-136dBm(LoRa,Spreading Factor=12,Bit Rate=293bps );
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type
Built-in antenna
Communication Distance
Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )
Data Transfer Rate
LoRa: 0.3kbps~50kbps
FSK: 1.2kbps~300kbps
Modulation
LoRa/FSK (Note: You can choose one of them)
Supportable LoRaWAN Band
EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510
(Note: The frequency band is optional and needs to be configured before shipment)
Physical:
Main Body Dimension
L: 112 mm*W: 88.19 mm*H: 32 mm
Host Body Weight
About 160g
Operating Temperature
-20°C ~ 55°C
Storage Temperature
-40°C ~ 85°C
Ambient Humidity
Less than 90%RH (No condensation)
