Netvox LoRa module Wireless Soil Moisture Sensor (Powered by 2 X ER14505 3.6V Lithium AA Battery)
Out of stock
Netvox LoRa module Wireless Soil Moisture Sensor (Powered by 2 X ER14505 3.6V Lithium AA Battery)
- Brand: Netvox
- MPN: R718PB13
- Part #: IPCNVX4808892
- UPC:
- Brand: Netvox
- MPN: R718PB13
- Part #: IPCNVX4808892
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT





Netvox LoRa module Wireless Soil Moisture Sensor (Powered by 2 X ER14505 3.6V Lithium AA Battery)
- Brand: Netvox
- MPN: R718PB13
- Part #: IPCNVX4808892

Product URL: https://www.pbtech.co.nz/product/IPCNVX4808892/Netvox-LoRa-module-Wireless-Soil-Moisture-Sensor-P
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

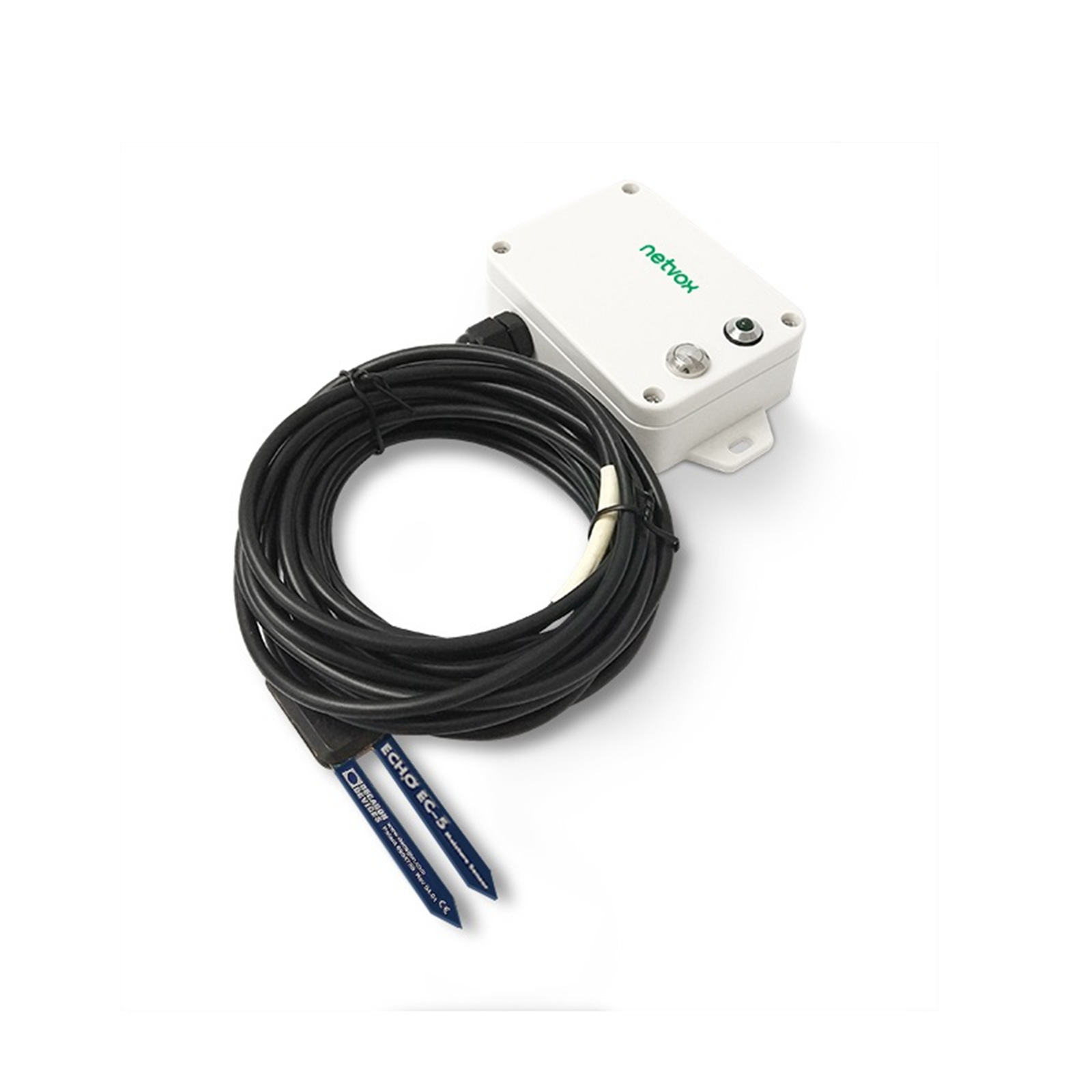

R718PB13-Wireless Soil Moisture Sensor
The device is a wireless communication device that detects the moisture content of the soil. It can detect the moisture content of the soil and transmit the detected data to other devices through the wireless network. It uses the SX1276 wireless communication method.
- Frequency Hopping Spread Spectrum (FHSS)
- Improved interference immunity
- Improved power management for longer battery life
- Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
- Over-the-air updates (future)
- Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
- Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
Battery Life*2:
Please refer to web: http://www.netvox.com.tw/electric/electric_calc.html
At this website, users can find battery life time for varier models at different configurations.
*1. Actual range may vary depending on environment.
*2. Battery life is determined by sensor reporting frequency and other variables
Download data sheet: http://www.netvox.com.tw/um/R718PB13/R718PB13datasheet.pdf
Specifications
Electric:
Power Supply
2 secctions of ER14505 battery AA SIZE (3.6V / section) parallel power supply
Operating Current
Battery life is about 3.4 years (Condition: ambient temperature 25 ° C, report once every 15 mins, txpower = 20 dBm, LoRa spread factor SF = 10)
Sleeping Current
38uA
Wake up Current
TX Current
120mA @3.3V
RX Current
11mA @3.3V
Battery Measurement Accuracy
±0.1V
Frequency:
Frequency Range
863MHz-928MHz 470MHz-510MHz
TX Power
19dBm±1dBm
Rx Sensitivity
-136dBm
(LoRa,Spreading Factor=12,Bit Rate=293bps )
-121dBm
(FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type
Build-in antenna
Communication Range
Up to 10 km, the actual transmission distance depends on the environment.
Data Transfer Rate
0.3kbps~50kbps
Spread Technique
LoRa/FSK
Available Frequency
EU863-870, US902-928, AU915-928,
KR920-923, AS923, CN470-510
Configured before shipment
Physical:
Size
L: 112mm*W: 65mm*H: 32mm
Ambient Temperature Range
-20°C to 55°C
Body Weight
160g
Ambient Humidity Range
<90% RH (non-condensing)
Storage Temperature Range
-40°C to 85°C
