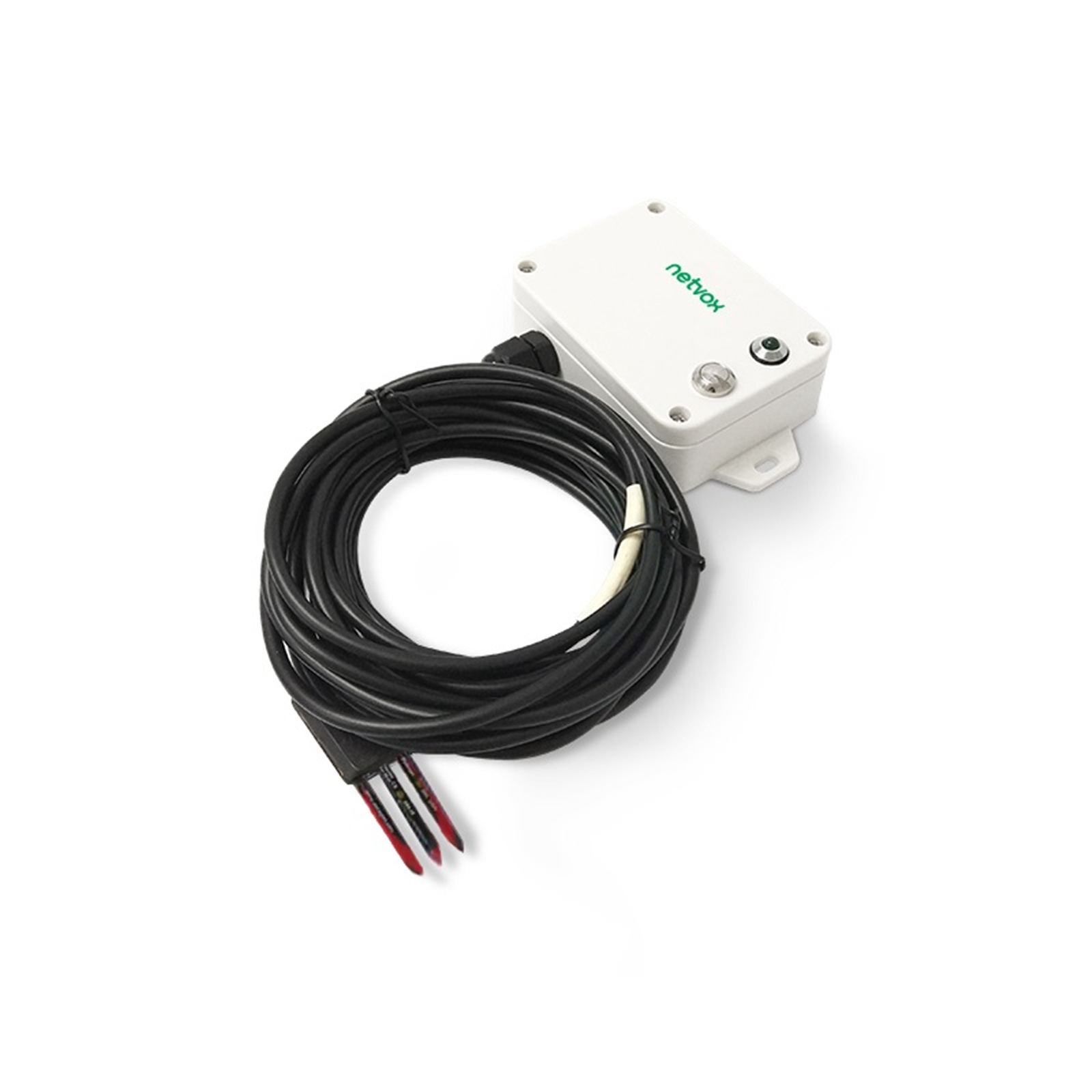

Netvox LoRa module Wireless Soil Moisture/Temperature/Electrical Conductivity Sensor (Powered by 2 X ER14505 3.6V Lithium AA Battery)
Out of stock
Netvox LoRa module Wireless Soil Moisture/Temperature/Electrical Conductivity Sensor (Powered by 2 X ER14505 3.6V Lithium AA Battery)
- Brand: Netvox
- MPN: R718PB14
- Part #: IPCNVX4808893
- UPC:
- Brand: Netvox
- MPN: R718PB14
- Part #: IPCNVX4808893
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT





Netvox LoRa module Wireless Soil Moisture/Temperature/Electrical Conductivity Sensor (Powered by 2 X ER14505 3.6V Lithium AA Battery)
- Brand: Netvox
- MPN: R718PB14
- Part #: IPCNVX4808893

Product URL: https://www.pbtech.co.nz/product/IPCNVX4808893/Netvox-LoRa-module-Wireless-Soil-MoistureTemperatu
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
R718PB14-Wireless Soil Volume Water Content \Temperature \Electrical Conductivity
The device is a wireless communication device that detects soil temperature and moisture content and soil conductivity, and transmits the detected data to other devices through LoRa network. The SX1276 wireless communication method is adopted.
- Frequency Hopping Spread Spectrum (FHSS)
- Improved interference immunity
- Improved power management for longer battery life
- Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
- Over-the-air updates (future)
- Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
- Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
Battery Life*2:
Please refer to web: http://www.netvox.com.tw/electric/electric_calc.html
At this website, users can find battery life time for varier models at different configurations.
*1. Actual range may vary depending on environment.
*2. Battery life is determined by sensor reporting frequency and other variables
Download data sheet: http://www.netvox.com.tw/um/R718PB14/R718PB14datasheet.pdf
Specifications
Electric:
Power Supply
2 ER14505 batteries AA SIZE (3.6V / section) parallel power supply
Battery Life Time
Battery life is about 3.4 years (Condition: ambient temperature 25 ° C. Report once every 15 minutes. Txpower = 20 dBm. LoRa spread factor SF = 10)
Sleeping Mode
36uA
Wake up Mode
Receiving Current (RX)
11mA @3.3V
Transmitting Current (TX)
120mA/3.3V
Battery Voltage Measurement Accuracy
±0.1V
Frequency:
TX Power
19dBm±1dBm
Rx Sensitivity
-136dBm
(LoRa,Spreading Factor=12,Bit Rate=293bps )
-121dBm
(FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type
Build-in antenna
Communication Range
Up to 10 km, the actual transmission distance depends on the environment.
Data Transfer Rate
0.3kbps~50kbps
Spread Technique
LoRa/FSK
Available Frequency
EU863-870, US902-928, AU915-928,
KR920-923, AS923, CN470-510
Configured before shipment
Physical:
Dimension
L:112mm*W:88.19mm*H:32mm
Weight
160g
Working Temp
-20°C ~ +55°C
Storage Temp
-40°C ~ +85°C
Humidity Detecting Range
<90%RH
