Features
R718PQA-Wireless Toilet Occupancy Sensor

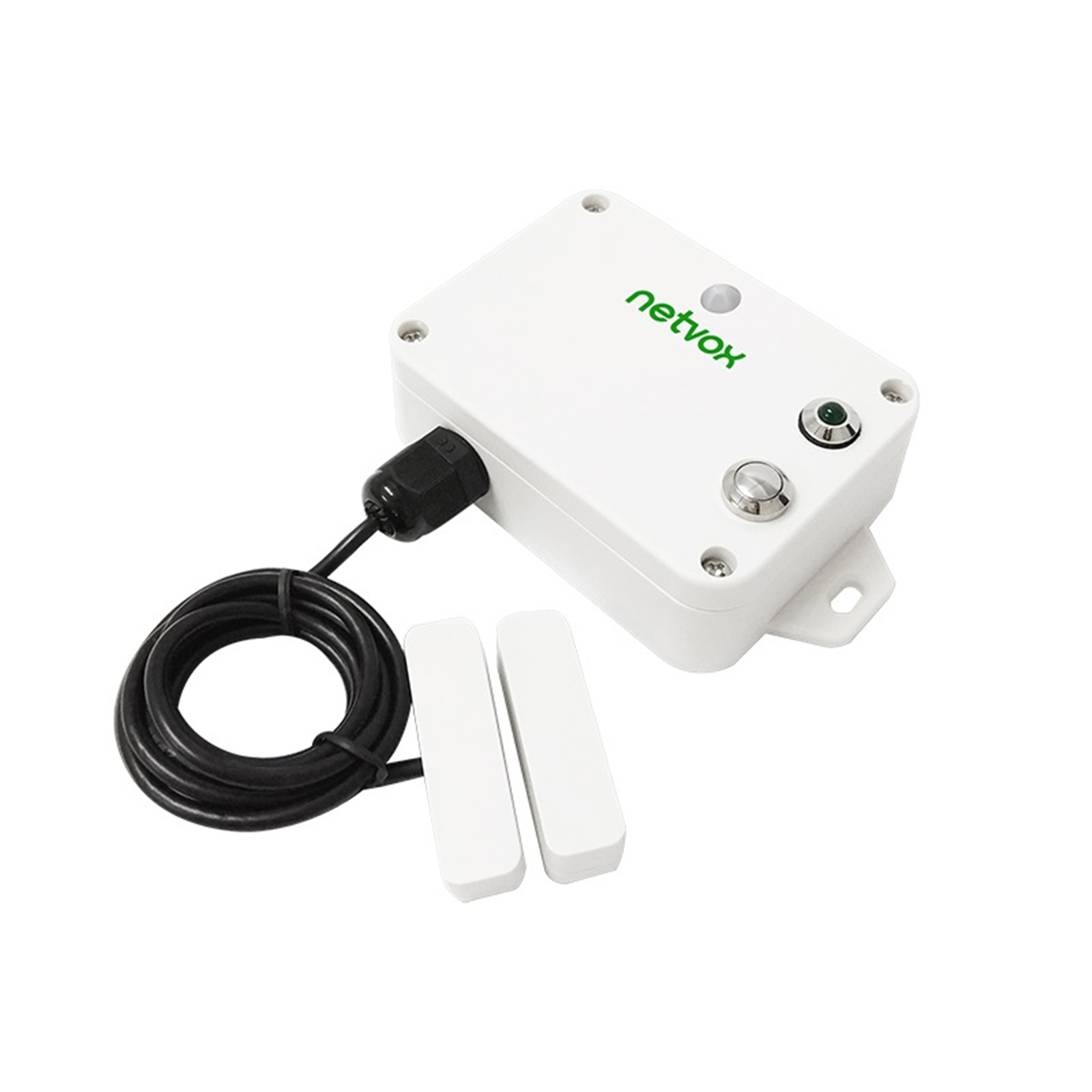

The R718PQA is a wireless communication device that detects toilet occupancy. The device is equipped with a reed switch sensor for detecting the switch status of the door; a built-in PIR sensor (pyroelectric human body infrared sensor) to detect whether someone is in the toilet. Two detections are established at the same time to determine if the toilet is occupied. Through the wireless network, the detected data is transmitted to other devices for display, which uses the SX1276 wireless communication module.
- Compatible with LoRaWAN
- 2 ER14505 lithium batteries (3.6V / section) parallel power supply
- Detectable occupancy status
- Simple operation and setting
- Protection class IP65
- Compatible with LoRaWANTM Class A
- Frequency hopping spread spectrum
- Configuration parameters can be configured via a third-party software platform, data can be read and alerts can be set via SMS text and email (optional)
- Applicable to third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenne
- Low power consumption and long battery life
Note*: Battery life is determined by the sensor reporting frequency and other variables, please refer to http://www.netvox.com.tw/electric/electric_calc.html
On this website, users can find battery life of various models in different configurations.
Download data sheet: http://www.netvox.com.tw/um/R718PQA/R718PQAdatasheet.pdf
Specifications
Electric:
Input Power
2 x 3.6V ER14505 AA lithium batteries
(3.6V, 2400mah/section)
Life Time
Battery life are 4.5 years
(condition: ambient temperature 25 ° C, report every 15 mins, txpower = 20 dBm, LoRa spreading factor SF = 10)
Sleeping Mode
34uA
Wake up Mode
Low Voltage Threshold
3.2V
Receiving Current (max)
11mA @3.3V
Transmitting Current (max)
120mA/3.3V
Frequency:
TX Power
19dBm±1dBm
Rx Sensitivity
-136dBm (LoRa,Spreading Factor=12, Bit Rate=293bps )
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type
Build-in antenna
Communication Range
Up to 10 km, the actual transmission distance depends on the environment.
Data Transfer Rate
0.3kbps~50kbps
Spread Technique
LoRa/FSK
Available Frequency
EU863-870, US902-928, AU915-928, KR920-923, AS923, CN470-510
Configured before shipment
Physical:
Dimension
Main Part: 112mm x88.19mm x 32mm
Weight
150g
Environment Temperature Range
-20 ~ 55C
Environment Humidity Range
<90% RH (No condensation)
Storage Temperature
-40 ~ 85C
