Features

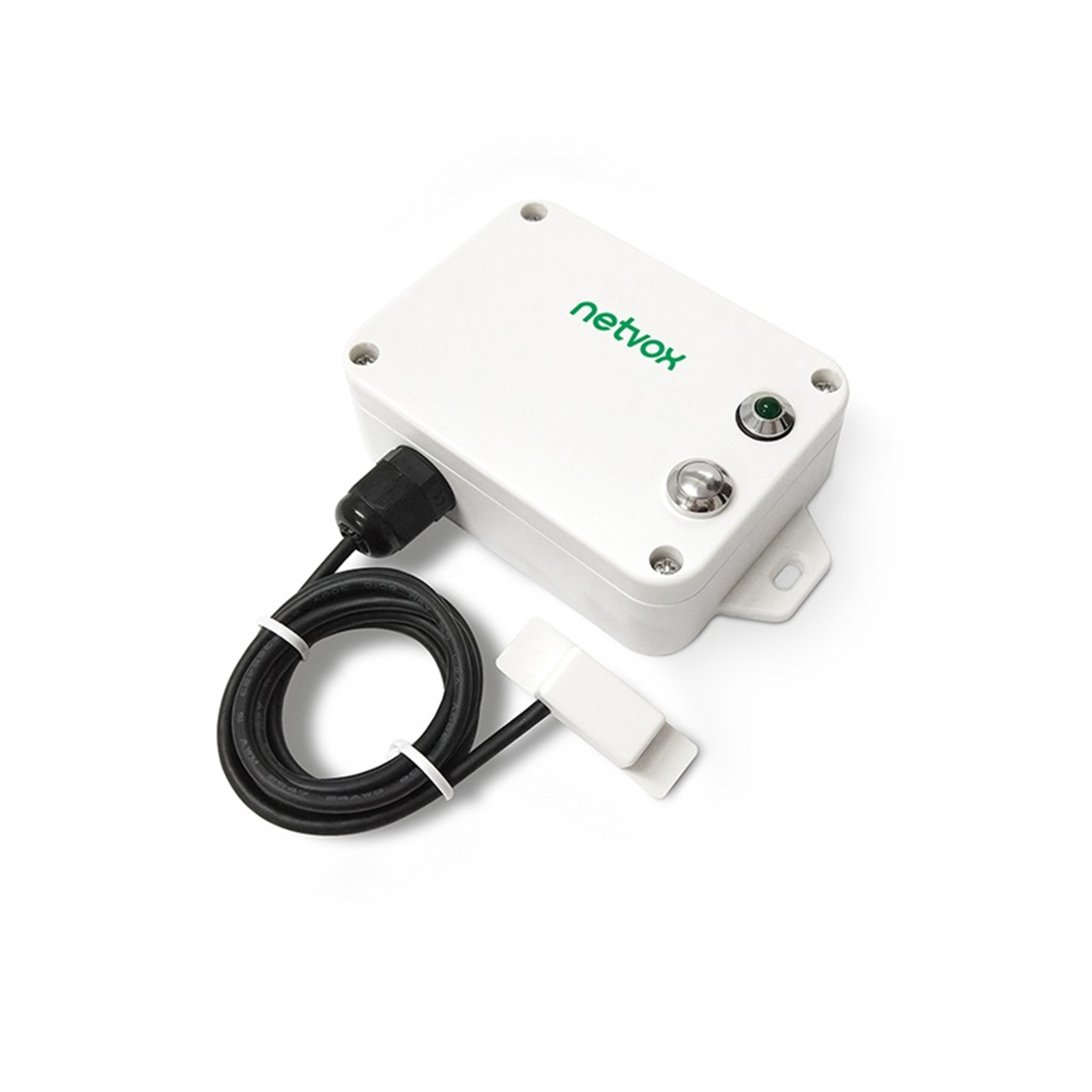

R718WA - Wireless Water Leak Detector
The device is a LoRaWAN™ device compatible with LoRaWAN™ protocol (Class A). When the sensor detects the leak, it will send an alarm message to the gateway. R718WA carries 1 water leak sensor. It uses SX1276 wireless communication module.
- Wireless range of 10km *1
- LoRaWAN™ Class A compatible
- Frequency Hopping Spread Spectrum (FHSS)
- Improved interference immunity
- Improved power management for longer battery life
- Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
- Over-the-air updates (future)
- Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
- Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
- R718X series carry magnets which can be attached to ferromagnetic materials and objects
Battery Life*2:
Please refer to web: http://www.netvox.com.tw/electric/electric_calc.html
At this website, users can find battery life time for varier models at different configurations.
*1. Actual range may vary depending on environment.
*2. Battery life is determined by sensor reporting frequency and other variables
Download data sheet: http://www.netvox.com.tw/um/R718WA/R718WAdatasheet.pdf
Specifications
Electric:
Input Power
2 x 3.6V ER14505 AA lithium batteries
(3.6V2400mah/section)
Sleeping Mode
22uA
Wake up Mode
Low Voltage Threshold
3.2V
Receiving Current (max)
11mA @3.3V
Transmitting Current (max)
120mA/3.3V
Battery Voltage Measurement Accuracy
±0.1V
Frequency:
Water Line Material
UL2547 28AWG
Water Line Max. Working Temperature
80 ° C
Water Line Diameter
2mm
Water Line Length
1000mm (±5mm)
Water Line Flame Resistance Rating
VW-1
Water Line Length Limit
300m (theoretical value)
Water Sensor Size
L: 38.5 mm*W: 11.9 mm*H: 13.7 mm
Physical:
Dimension
Main Part: L: 112mm*W: 65mm*H: 32mm
Weight
141g
Environment Temperature Range
-20 ~ 55C
Environment Humidity Range
<90% RH (No condensation)
Storage Temperature
-40 ~ 85C
IP Rating (Main Part)
IP67
IP Rating (External Sensor)
IP67
