Features

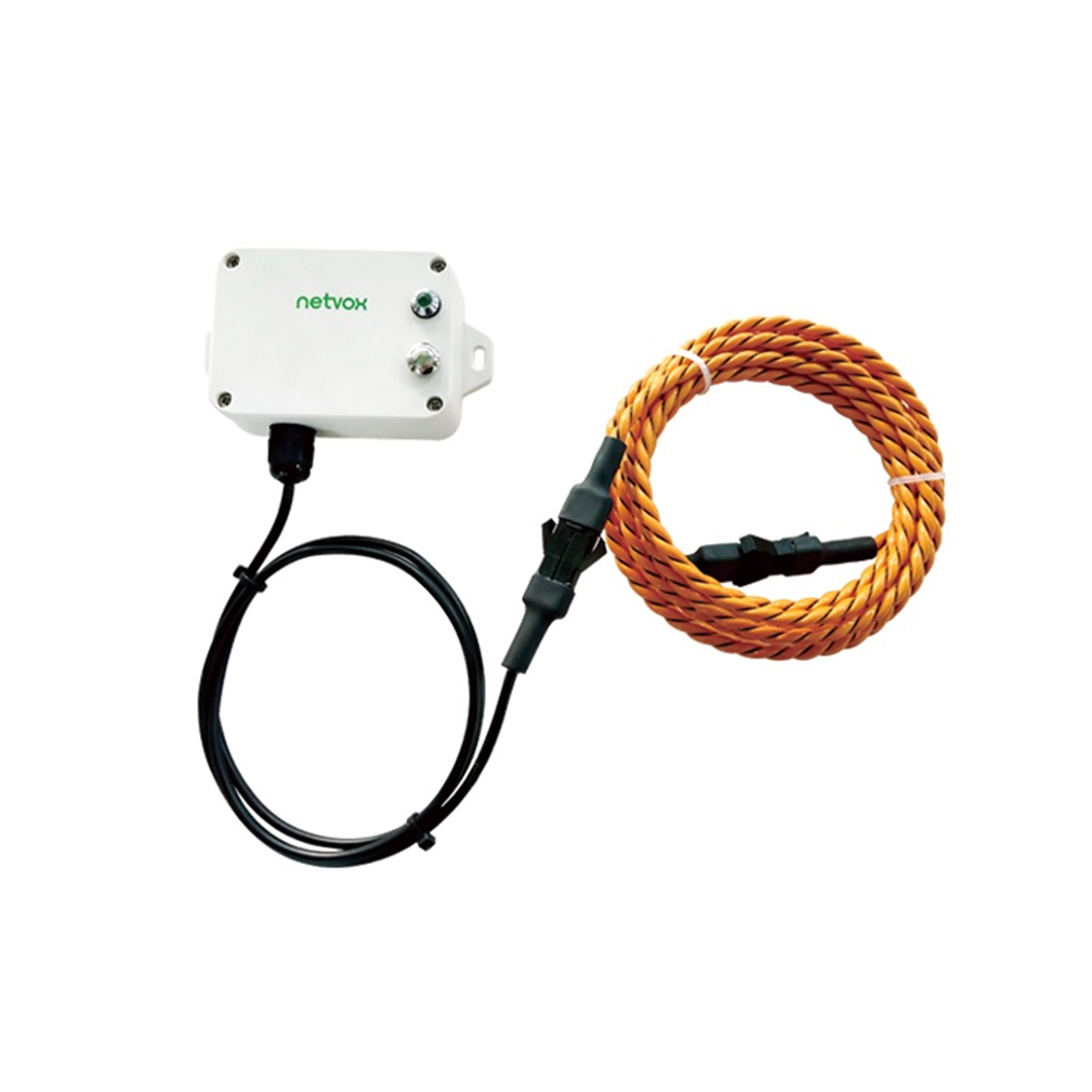

R718WB -Wireless Water Leak Detector with Rope Sensor
R718WB is a non-locating leak detection wireless communication device. R718WB can detect the leak status through an external dual-core non-positioning water rope sensor, and send the detected data to data center through the wireless network.
- Apply SX1276 wireless communication module
- 2 section of ER14505 battery in parallel (AA SIZE 3.6V / section)
- Non-locating leak detection
- The base is attached with a magnet that can be attached to a ferromagnetic material object
- IP Ratings: Main part - IP65/IP67 (Optional), Sensor-IP67
- LoRaWAN™ Class A compatible
- Frequency Hopping Spread Spectrum (FHSS)
- Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
- Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
- Improved power management for longer battery life
Download data sheet: http://www.netvox.com.tw/um/R718WB/R718WBdatasheet.pdf
Specifications
Electric:
Input Power
2 x 3.6V ER14505 AA lithium batteries
(3.6V2400mah/section)
Battery Life
5 years (Conditions: ambient temperature 25 °C, 15 min heartbeats, txpower = 20dBm, LoRa spreading factor SF = 10)
Sleeping Mode
20uA
Wake up Mode
Low Voltage Threshold
3.2V
Receiving Current (max)
11mA @3.3V
Transmitting Current (max)
120mA/3.3V
Battery Voltage Measurement Accuracy
±0.1V
Frequency:
TX Power
US915 20dbm;
AS923 16dbm;
AU915 20dbm;
CN470 19.15dbm;
EU868 16dbm;
KR920 14dbm;
IN865 20dbm;
Rx Sensitivity
-136dBm (LoRa,Spreading Factor=12, Bit Rate=293bps )
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type
Build-in antenna
Communication Range
10 km (line-of-sight, the actual transmission distance depends on the environment)
Data Transfer Rate
0.3kbps~50kbps
Spread Technique
LoRa/FSK
Available Frequency
US915 AU915 AS923 EU868 KR920 CN470
Configured before shipment
Physical:
Dimension
Main Part: L: 112mm*W: 65mm*H: 32mm
Weight
141g
Environment Temperature Range
-20 ~ 55C
Environment Humidity Range
<90% RH (No condensation)
Storage Temperature
-40 ~ 85C
