Features

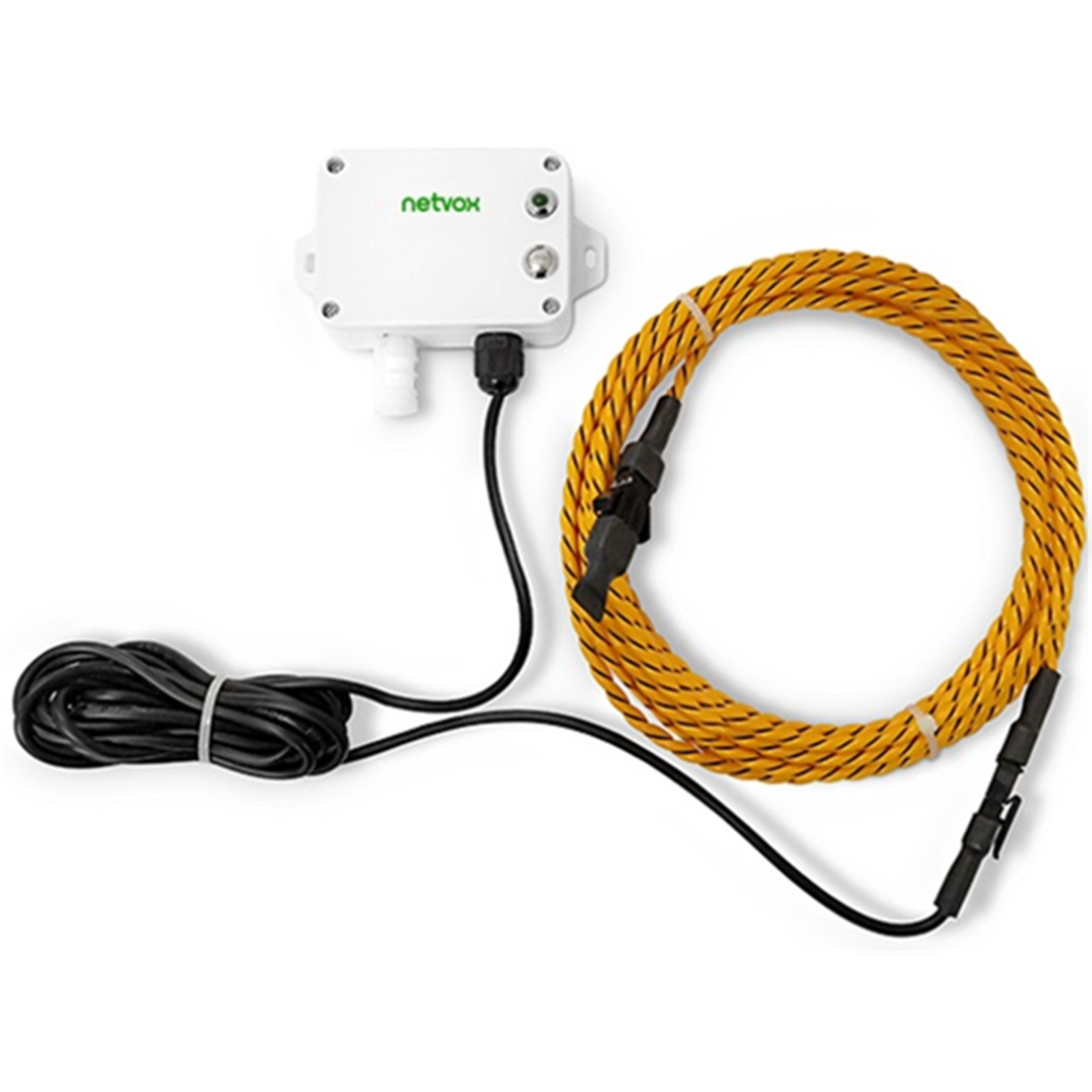

R718WBA-Wireless Temperature and Humidity Sensor & Water Leakage
The R718WBA is a wireless communication device that detects ambient air temperature and humidity and non-locating leak detection. The R718WBA detects the temperature and humidity of the air. At the same time, it detects the presence or absence of water leakage through the 2-core non-locating leak detection sensor line, and transmits the detected data to the gateway through the wireless network. The SX1276 wireless communication module is used.
- Apply SX1276 wireless communication module
- 2 ER14505 batteries AA SIZE (3.6V / section) parallel power supply
- Non-locating leak detection
- The base is attached with a magnet that can be attached to a ferrous object
- Protection class IP65
- Air temperature and humidity detection
- Compatible with LoRaWANTM Class A
- Frequency hopping spread spectrum
- Configuration parameters can be configured via a third-party software platform, data can be read and alerts can be set via SMS text and email (optional)
- Available to third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenne
- Low power consumption and long battery life
Note*: Battery life is determined by the sensor reporting frequency and other variables, please refer to http://www.netvox.com.tw/electric/electric_calc.html
On this website, users can find battery life of various models in different configurations.
Download data sheet: http://www.netvox.com.tw/um/R718WBA/R718WBAdatasheet.pdf
Specifications
Electric:
Input Power
2 x 3.6V ER14505 AA lithium batteries
(3.6V, 2400mah/section)
Battery Life
5 years (Conditions: ambient temperature 25 °C, 15 min heartbeats, txpower = 20dBm, LoRa spreading factor SF = 10)
Sleeping Mode
25uA
Wake up Mode
Low Voltage Threshold
3.2V
Receiving Current (max)
11mA @3.3V
Transmitting Current (max)
120mA/3.3V
Battery Voltage Measurement Accuracy
±0.1V
Frequency:
Frequency Range
863MHz-928MHz 470MHz-510MHz
TX Power
19dBm±1dBm
Rx Sensitivity
-136dBm (LoRa,Spreading Factor=12, Bit Rate=293bps )
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type
Build-in antenna
Communication Range
Up to10 km, the actual transmission distance depends on the environment.
Data Transfer Rate
0.3kbps~50kbps
Spread Technique
LoRa/FSK
Available Frequency
EU863-870, US902-928, AU915-928, KR920-923, AS923, CN470-510
Configured before shipment
Physical:
Dimension
Main Part: L: 112mm*W: 92mm*H: 32mm
Environment Temperature Range
-20 ~ 55C
Environment Humidity Range
<90% RH (No condensation)
Storage Temperature
-40 ~ 85C
