Netvox LoRa module Wireless Temperature and Humidity Sensor for Low Temperature Environment (Powered by 2 X ER14505 3.6V Lithium AA Battery)
Out of stock
Netvox LoRa module Wireless Temperature and Humidity Sensor for Low Temperature Environment (Powered by 2 X ER14505 3.6V Lithium AA Battery)
- Brand: Netvox
- MPN: R720A
- Part #: IPCNVX4808903
- UPC:
- Brand: Netvox
- MPN: R720A
- Part #: IPCNVX4808903
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT





Netvox LoRa module Wireless Temperature and Humidity Sensor for Low Temperature Environment (Powered by 2 X ER14505 3.6V Lithium AA Battery)
- Brand: Netvox
- MPN: R720A
- Part #: IPCNVX4808903

Product URL: https://www.pbtech.co.nz/product/IPCNVX4808903/Netvox-LoRa-module-Wireless-Temperature-and-Humidi
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

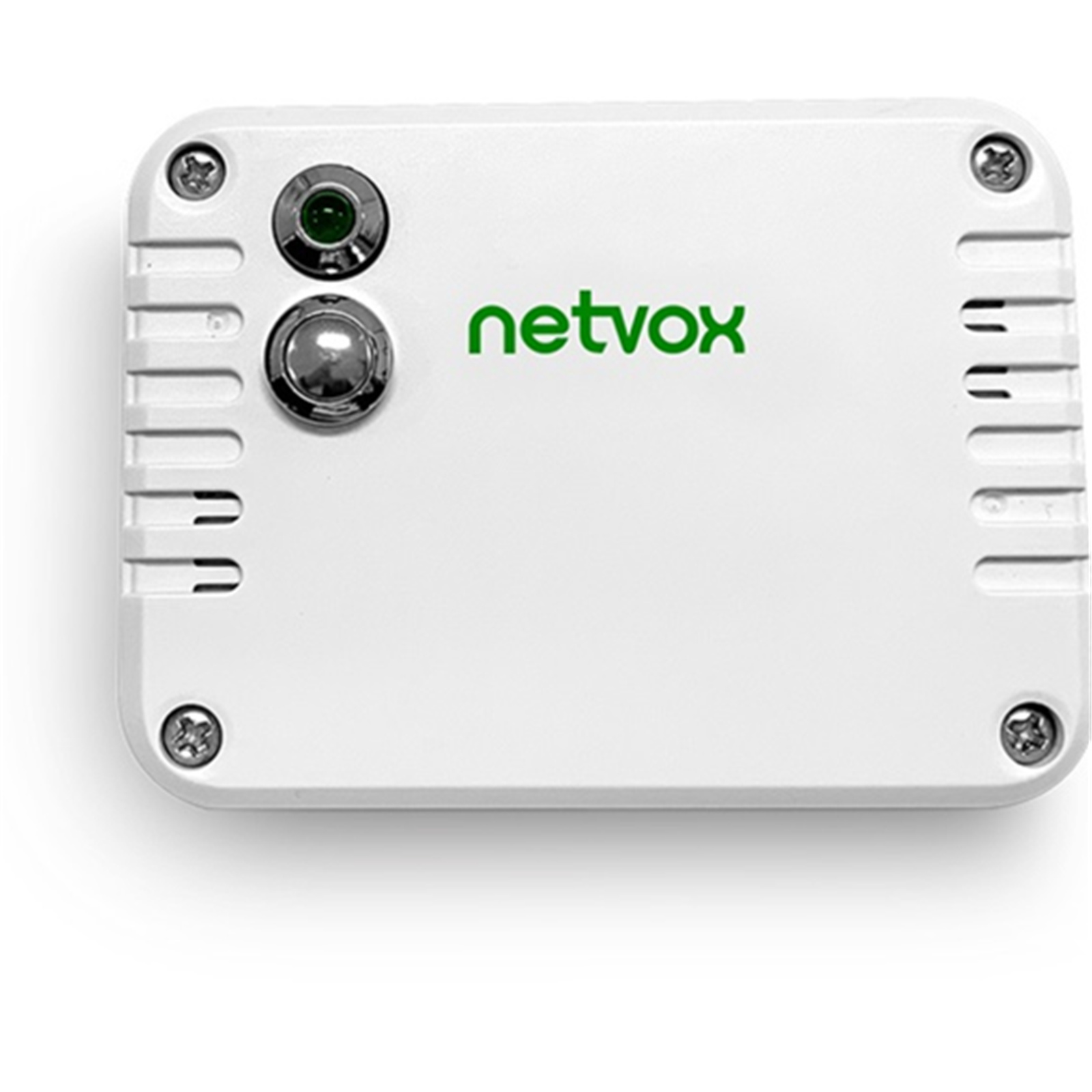

R720A-Temperature and Humidity Sensor
The R720A is a wireless communication device that detects ambient air temperature and humidity. The R720A detects the temperature and humidity of the air and transmits the detected data to other devices via a wireless network using the SX1276 wireless communication module.
- LoRaWAN Class A compatible
- Frequency Hopping Spread Spectrum (FHSS)
- Improved interference immunity
- Improved power management for longer battery life
- Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
- Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
- R718X series carry magnets which can be attached to ferromagnetic materials and objects
- Apply SX1276 wireless communication module
- 2 ER14505 battery AA SIZE (3.6V / section) parallel power supply
- Protection class IP65
Battery Life*2:
Please refer to web: http://www.netvox.com.tw/electric/electric_calc.html
At this website, users can find battery life time for varier models at different configuration
*1. Actual range may vary depending on environment.
*2. Battery life is determined by sensor reporting frequency and other variables.
Download data sheet: http://www.netvox.com.tw/um/R720A/R720Adatasheet.pdf
Specifications
Electric:
Input Power
2 x 3.6V ER14505 AA lithium batteries
(3.6V 2400mah/section)
Battery Life
5 years
(Conditions: ambient temperature 25 °C, 15 min heartbeats, txpower = 20dBm, LoRa spreading factor SF = 10)
Sleeping Mode
24uA
Wake up Mode
Low Voltage Threshold
3.2V
Transmitting current (max)
Receiving current (max)
11mA @3.3V
Frequency:
Frequency Range
863MHz-928MHz, 470MHz-510MHz
TX Power
19dBm±1dBm
Rx Sensitivity
-136dBm (LoRa,Spreading Factor=12, Bit Rate=293bps )
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type
Build-in antenna
Communication Range
Up to 10km, the actual transmission distance depends on the environment.
Data Transfer Rate
0.3kbps~50kbps
Spread Technique
LoRa/FSK
Available Frequency
EU863-870, US902-928, AU915-928,
KR920-923, AS923, CN470-510
Configured before shipment
Physical:
Dimension
Main Body: L:88mm*W:65mm*H:19mm
Weight
113g
Environment Temperature Range
-40 ~ 55C
Environment Humidity Range
<90% RH (No condensation)
Storage Temperature
-40 ~ 85C
