Features

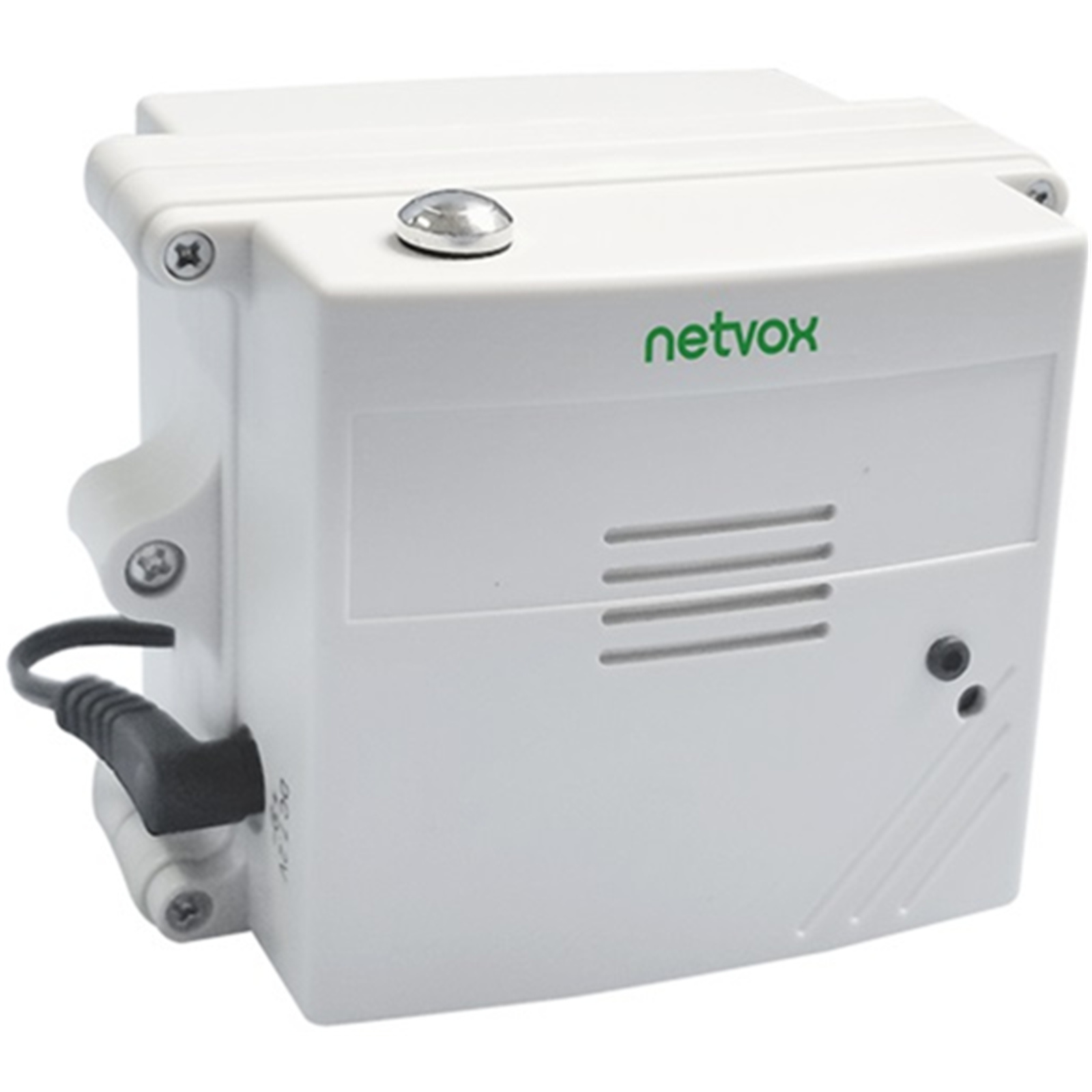

R72616A-Wireless PM2.5/Temperature/Humidity Sensor
R72616A with temperature and humidity sensor can detect and send the temperature and humidity data of the environment. The device is in line with the LoRa protocol standard. R72616A with PM2.5 dust sensor can be used to obtain the concentration of suspended particulates in air per unit volume.
- Compatible with LoRaWAN™ protocol
- Temperature and humidity detection
- Detecting particle concentration of the air (PM2.5)
- Adopt SX1276 wireless communication module
- Compatible with LoRaWANTM Class A
- Frequency hopping spread spectrum technology
- Configuring parameters and reading data via the third-party software platforms, and set alarms via SMS text and email (optional)
- Applicable to the third-party platforms: Actility/ ThingPark/ TTN/ MyDevices/ Cayenn
Download data sheet: http://www.netvox.com.tw/um/R72616A/R72616Adatasheet.pdf
Specifications
Electric:
Power Supply Mode
8 sections of ER14505 lithium batteries
Battery Life Time
1 year
Operating Voltage Range
6.8VDC ~ 7.3VDC
Standyby Current
250uA
Operating Current
60mA (when the sensor is working)
Temperature Measurement Range
-20°C to 55°C
Temperature Measurement Accuracy
±1°C @25°C
Humidity Measurement Range
0%RH to 100%RH
Humidity Measurement Range
±4%RH @25°C
Particle Measurement Range
0.3 ~ 1.0 ; 1.0 ~ 2.5um
Particle Counting Efficiency
50%@0.3um,98%@=0.5um
Particle Mass Concentration Effective Range
0~500µg/m3
Particle Mass Concentration Resolution
1µg/m3
Humidity Measurement Range
±4%RH @25°C
Frequency:
Frequency Range
863MHz-928MHz 470MHz-510MHz
TX Power
US915 20dbm;
AS923 16dbm;
AU915 20dbm;
CN470 19.15dbm;
EU868 16dbm;
KR920 14dbm;
IN865 20dbm;
Receiving Sensitivity
-136dBm(LoRa,Spreading Factor=12,Bit Rate=293bps );
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type
Built-in antenna
Communication Distance
Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )
Data Transfer Rate
LoRa: 0.3kbps~50kbps
FSK: 1.2kbps~300kbps
Modulation
LoRa/FSK (Note: You can choose one of them)
Supportable LoRaWAN Band
EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510
(Note: The frequency band is optional and needs to be configured before shipment)
Physical:
Main Body Dimension
117mm x 89.05mm x 82mm
Operating Temperature
-20 ~ 55C
Storage Temperature Range
-40°C ~ 85°C
Environment Humidity Range
<90%RH (No condensation)
