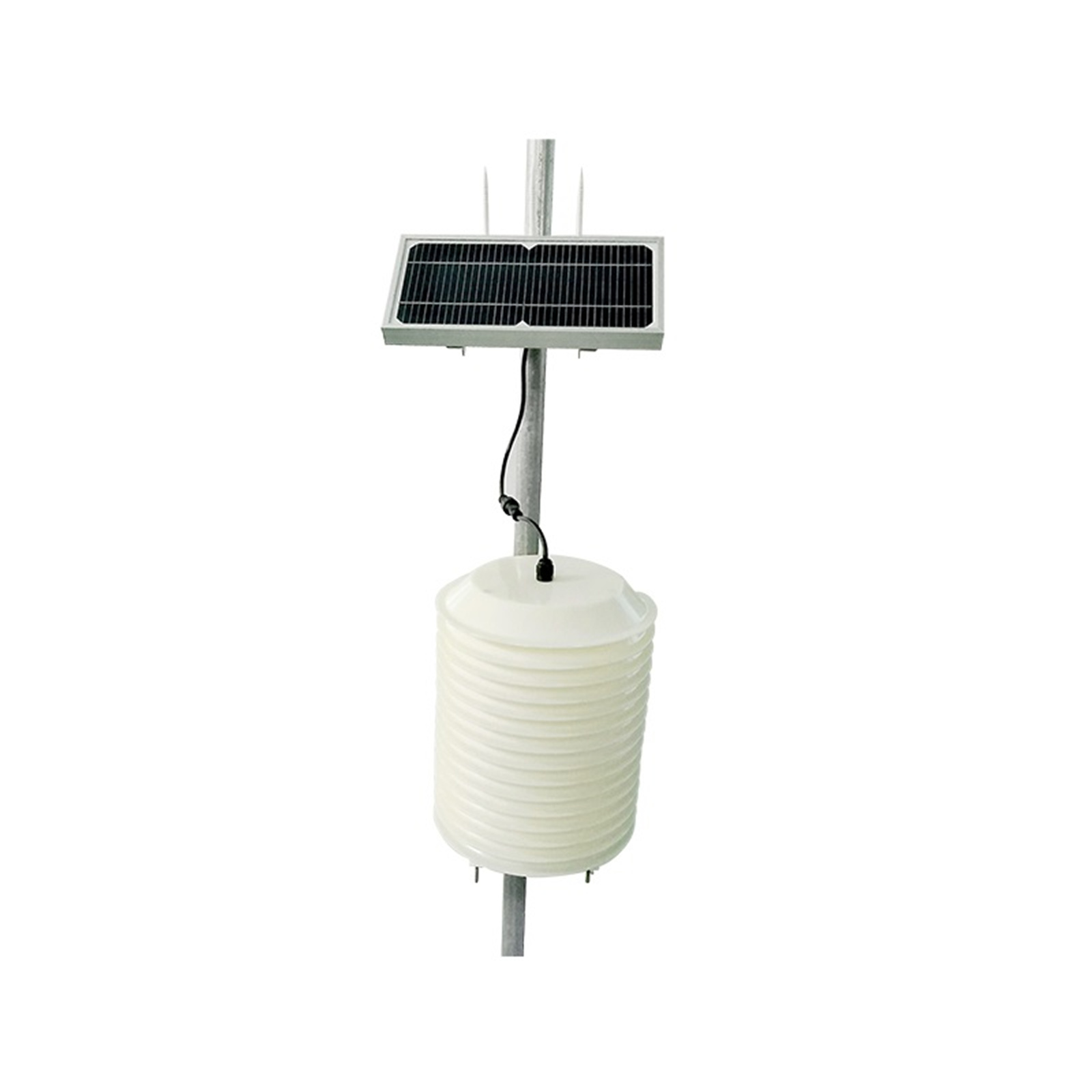

R72623-Wireless Outdoor PM2.5/Noise/Temperature/Humidity Sensor with Solar Panel (Solar-powered)
NETVOX Wireless Sensor R72623 is capable to measure PM2.5 / noise / temperature / humidity at outdoor environment. R72623 can be used in construction site / agricultural environment / airport surroundings / business environment data collection. Suitable as a data logger.
- LoRaWAN™Class A compatible
- Frequency Hopping Spread Spectrum (FHSS)
- Improved interference immunity
- Improved power management for longer battery life
- Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
- Over-the-air updates (future)
- Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
- Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
Battery Life*2:
15 min heartbeats = 5 years
(Conditions: ambient temperature 25 °C, txpower = 20dBm, LoRa spreading factor SF = 10)
*1. Actual range may vary depending on environment.
*2. Battery life is determined by sensor reporting frequency and other variables
Download data sheet: http://www.netvox.com.tw/um/R72623/R72623datasheet.pdf
Specifications
Electric:
Power Supply
3 rechargeable lithium batteries in series (single-cell rechargeable lithium battery 3.7V, capacity recommended 5000mah)
Operating Voltage range
9VDC~12.6VDC
Operating Current 1
15mA (Standby mode)
Operating Current 2
60mA
Wireless idle mode Cycle
3 minutes
Frequency:
TX Power
19dBm±1dBm
Rx Sensitivity
-136dBm (LoRa,Spreading Factor=12, Bit Rate=293bps )
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type
Build-in antenna
Communication Range
10 km (line-of-sight, the actual transmission distance depends on the environment)
Data Transfer Rate
0.3kbps~50kbps
Spread Technique
LoRa/FSK
Available Frequency
EU863-870,US902-928,AU915-928,KR920-923,AS923,CN470-510 Configured before shipment
Physical:
Dimension
Mask body: D220mm*H340mm,
Solar panel size: 290mm*150mm*25mm
Weight
Partial weight of the mask body (with lithium battery inside the mask body, main body): About 2657g
Solar panel weight (solar panel, solar panel bracket, anti bird pin): about 1355g
Mask Life Time
Cover material is ABS material, can be used outdoors for 3 years
Operating Temperature Range
-20 ~ 55C
Operating Humidity Range
15%RH~90%RH (no condensation)
Storage Temperature range
-40 ~ 85C
