Features

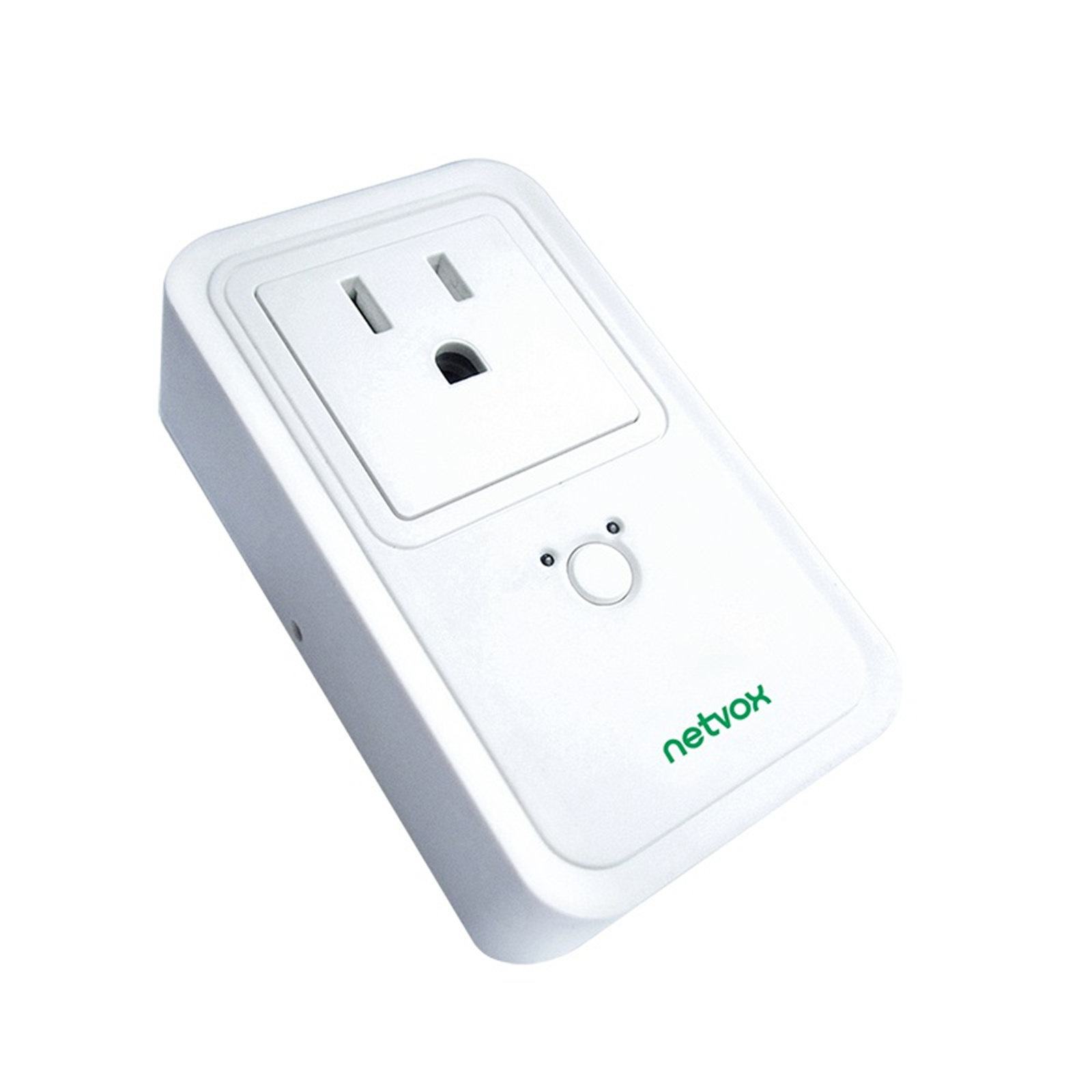

R809A01-Wireless Plug-and-Play Power Outlet with Consumption Monitoring and Power Outage Detection
The R809A01 is a wireless power plug converter for indoor use. It can remotely control the output switch and detect the output power. It integrates the LoRa/FSK modulation communication wireless module SX1276, which can realize wireless remote control. R809A01 has a 10A/230VAC output load capability and is primarily used to measure electrical power consumption and wireless switch control. R809A01 supports the wireless module to send a power off alarm signal to the gateway after power off
Main Characteristic
- LoRa/FSK modulation communication, long-distance wireless communication
- Adopt SX1276 wireless communication module
- Compatible with LoRaWAN™ Class C
- Built-in memory for storing power consumption data
- After the power is cut off, a power off alarm signal will be sent.
Example Applications
- Indoor electric energy testing equipment for home, hotel, office building, shopping mall, etc.
- Smart city
- Thermal system equipment
Features of NETVOX Sensors
- Wireless range of 10km *1
- Frequency Hopping Spread Spectrum (FHSS)
- LoRaWAN™ Class C compatible
- Improved interference immunity
- Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
- Over-the-air updates (future)
- Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
- Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
*1. Actual range may vary depending on environment.
Download data sheet: http://www.netvox.com.tw/um/R809A01/R809A01datasheet.pdf
Specifications
Electric:
Rated working power supply
100-240VAC, 50/60Hz
Typical Operating Current
15mA/220VAC/1W
Typical Load Characteristics
Resistive load: 16A/250VAC; P: 4000VA
Inductive load: 8A/220VAC; P: 1760VA (COSf=0.4)
Motor load: 1.5HP/240VAC
White Lamp, fluorescent lamp, gold halogen lamp: 3000W/220VAC
Relay Switch Life Times
100,000 times
Current Measurement Accuracy Range
100mA~16A
Energy Measurement Error
<+-1%
Frequency:
TX Power
19dBm±1dBm
Rx Sensitivity
-136dBm (LoRa,Spreading Factor=12, Bit Rate=293bps )
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type
Build-in antenna
Communication Range
10 km (line-of-sight, the actual transmission distance depends on the environment)
Data Transfer Rate
0.3kbps~50kbps
Spread Technique
LoRa/FSK
Available Frequency
EU863-870,US902-928,AU915-928,KR920-923,AS923,CN470-510 Configured before shipment
Physical:
Dimension
95mm*58mm*42.5mm (without plug part)
Environment Temperature Range
-20 ~ 50C
Environment Humidity Range
<90% RH (No condensation)
Storage Temperature
-40 ~ 85C
Weight
126.5g
