Features

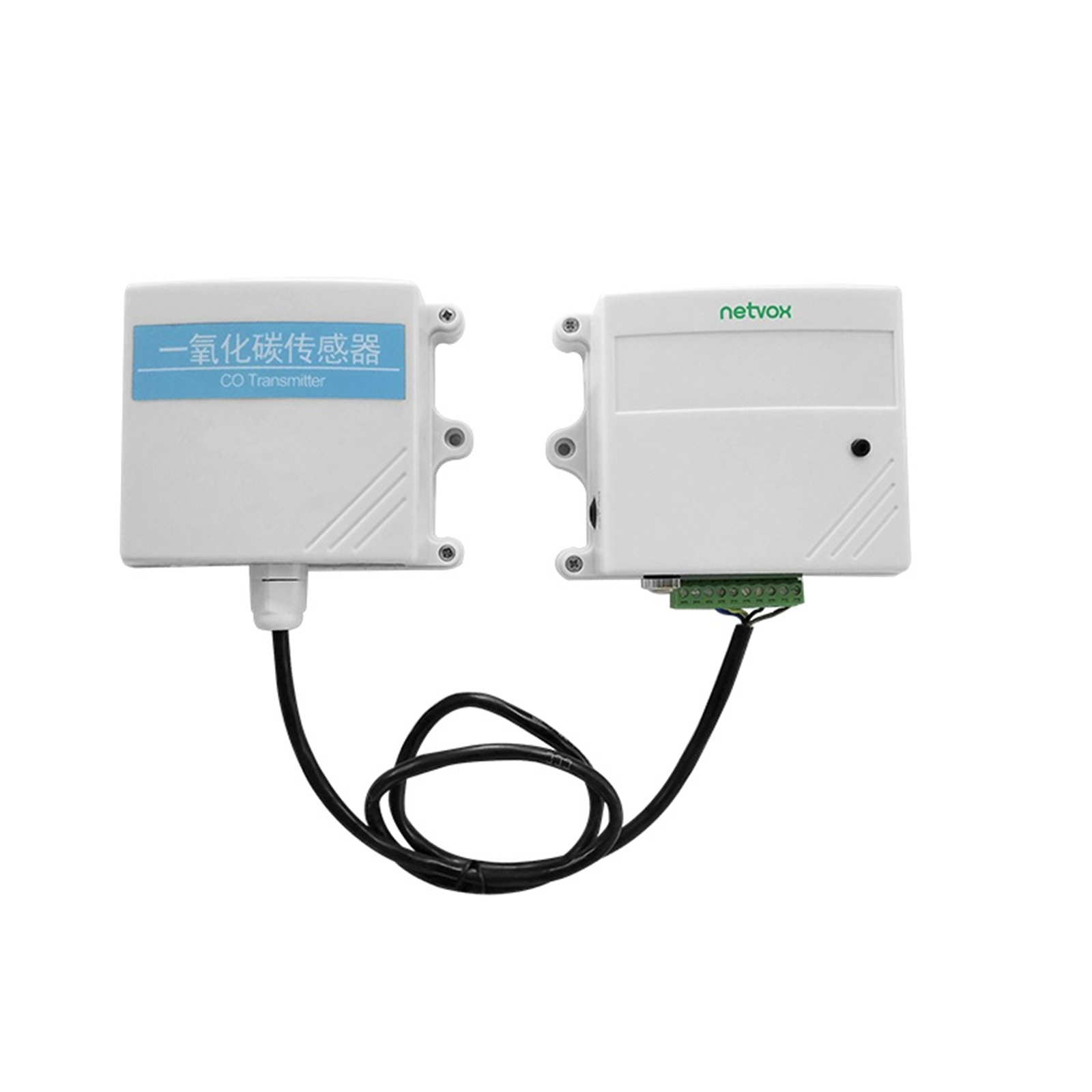

RA0701-Wireless CO Sensor
RA0701 is a wireless communication device that detects the carbon monoxide content in ambient air. RA0701 can detect the concentration of CO in the air.
- Adopt SX1276 wireless communication module
- 12V DC power supply
- Carbon Monoxide Detection
- Compatible with LoRaWAN™ Class A
- Frequency hopping spread spectrum technology
- Configuring parameters and reading data via the third-party software platforms, and set alarms via SMS text and email (optional)
- Applicable to third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenne
Download data sheet: http://www.netvox.com.tw/um/RA0701/RA0701datasheet.pdf
Specifications
Electric:
Power Supply
DC12V/1A
Operating Current 1
40mA (no RF signal transmission)
Operating Current 2
80mA (with RF signal transmission)
CO Measurement Range
0 to 2000 ppm
CO Measurement Method
Electrochemical sensors
CO Measurement Accuracy
= ± 3 % of reading (@25 ° C)
Frequency:
Frequency Range
863MHz-928MHz 470MHz-510MHz
TX Power
US915 20dbm;
AS923 16dbm;
AU915 20dbm;
CN470 19.15dbm;
EU868 16dbm;
KR920 14dbm;
IN865 20dbm;
Receiving Sensitivity
-136dBm(LoRa,Spreading Factor=12,Bit Rate=293bps );
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type
Built-in antenna
Communication Distance
Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )
Data Transfer Rate
LoRa: 0.3kbps~50kbps
FSK: 1.2kbps~300kbps
Modulation
LoRa/FSK (Note: You can choose one of them)
Supportable LoRaWAN Band
EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510
(Note: The frequency band is optional and needs to be configured before shipment)
Physical:
Dimension
Host body:117mm*89mm*41mm
CO sensor:110mm*85mm*44mm
Environment Temperature Range
-20 to 55C
Storage Temperature Range
-40 to 85C
Environment Humidity Range
<90%RH (No condensation)
