Netvox LoRa module Wireless PH Sensor (DC-Powered)
Out of stock
Netvox LoRa module Wireless PH Sensor (DC-Powered)
- Brand: Netvox
- MPN: RA0708
- Part #: IPCNVX4808915
- UPC:
- Brand: Netvox
- MPN: RA0708
- Part #: IPCNVX4808915
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT





Netvox LoRa module Wireless PH Sensor (DC-Powered)
- Brand: Netvox
- MPN: RA0708
- Part #: IPCNVX4808915

Product URL: https://www.pbtech.co.nz/product/IPCNVX4808915/Netvox-LoRa-module-Wireless-PH-Sensor-DC-Powered
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

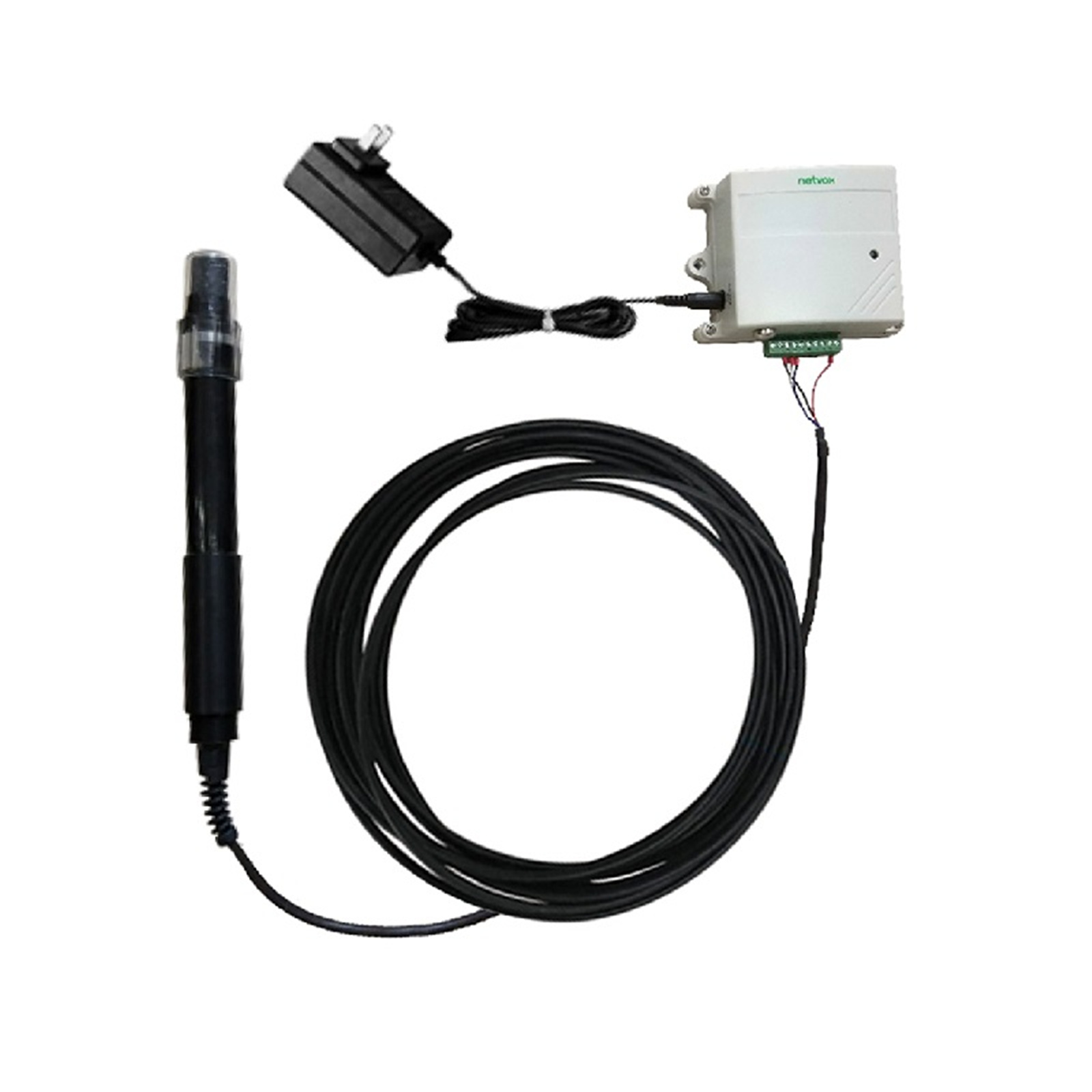

RA0708-Wireless PH Sensor
RA0708 is a device for pH detection in water environment. It can detect and send environmental pH data. to data center. It is a wireless communication method. It adopts SX1276 wireless communication module.
- Wireless range of 10 km *1
- LoRaWAN™ compatible
- Frequency Hopping Spread Spectrum (FHSS)
- Improved interference immunity
- Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
- Over-the-air updates (future)
- Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
- Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
- Uses SX1276 wireless communication module
*1. Actual range may vary depending on environment.
*2. Battery life is determined by sensor reporting frequency and other variables
Download data sheet: http://www.netvox.com.tw/um/RA0708/RA0708datasheet.pdf
Specifications
Electric:
Power Supply
Adapter DC Power Supply (12V/1A)
Operating Current 1
40mA (no RF signal transmission)
Operating Current 2
80mA (with RF signal emission)
Frequency:
TX Power
19dBm±1dBm
Rx Sensitivity
-136dBm (LoRa,Spreading Factor=12, Bit Rate=293bps )
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type
Build-in antenna
Communication Range
10 km (line-of-sight, the actual transmission distance depends on the environment)
Data Transfer Rate
0.3kbps~50kbps
Spread Technique
LoRa/FSK
Available Frequency
EU863-870,US902-928,AU915-928,KR920-923,AS923,CN470-510 Configured before shipment
Physical:
Dimension
111mm*86mm*41mm
Operating Temperature Range
-20 ~ 55C
Operating Humidity Range
< 90%RH (no condensation)
Storage Temperature range
-40 ~ 85C
IP Rating
IP20 (Main body)
