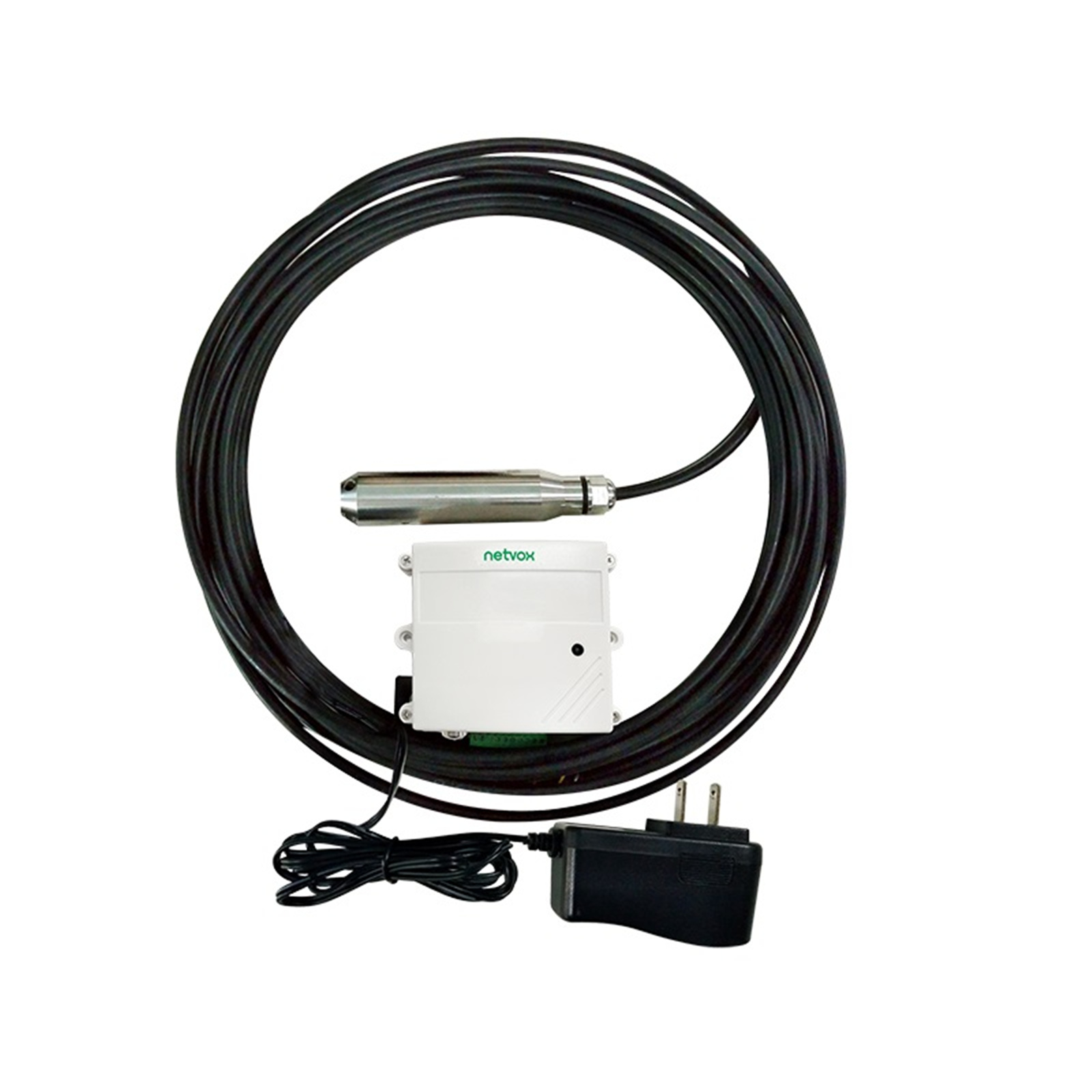

Netvox LoRa module Wireless Liquid Level Sensor (DC-Powered)
Out of stock
Netvox LoRa module Wireless Liquid Level Sensor (DC-Powered)
- Brand: Netvox
- MPN: RA0711
- Part #: IPCNVX4808917
- UPC:
- Brand: Netvox
- MPN: RA0711
- Part #: IPCNVX4808917
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT
Netvox LoRa module Wireless Liquid Level Sensor (DC-Powered)
- Brand: Netvox
- MPN: RA0711
- Part #: IPCNVX4808917
Product URL: https://www.pbtech.co.nz/product/IPCNVX4808917/Netvox-LoRa-module-Wireless-Liquid-Level-Sensor-DC?srsltid=AfmBOorKAGvHVRqAIkfnIy9FLE4cMVmfzRZrFxiO471AlabxzC4A2xDi
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
RA0711-Wireless Liquid Level Sensor
The RA0711 is a wireless communication device that detects the liquid depth.
The RA0711 can detect the depth of the liquid in the container.
- Apply SX1276 wireless communication module
- DC 12V adapter power supply
- Detect the depth of the liquid, such as the water tank, pool and river
- LoRaWAN™ Class A compatible
- Frequency Hopping Spread Spectrum (FHSS)
- Configuration parameters can be configured through a third-party software platform
- Applicable to third-party platforms: Actility / ThingPark, TTN, MyDevices / Cayenne
*Different types of liquid have different requirements for sensors, so the sensor needs to be selected according to the type of liquid.
Download data sheet: http://www.netvox.com.tw/um/RA0711/RA0711datasheet.pdf
Specifications
Electric:
Power Supply
DC12V/1A
Operating Current 1
80mA (no radio frequency signal transmission)
Operating Current 2
120mA (a radio frequency signal emission)
Measuring Line Length/Range
Default line length/range:12m/10m ;
Other line length/range: 20m/18m
Others line length/range can be customized.
The highest range is 50m.
(The line length is recommended being at least 60m or more.
The user can choose the length according to the actual demand.)
Accuracy Level
0.25%FS (typical value)
Frequency:
Frequency Range
863MHz-928MHz 470MHz-510MHz
TX Power
US915 20dbm;
AS923 16dbm;
AU915 20dbm;
CN470 19.15dbm;
EU868 16dbm;
KR920 14dbm;
IN865 20dbm;
Receiving Sensitivity
-136dBm(LoRa,Spreading Factor=12,Bit Rate=293bps );
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type
Built-in antenna
Communication Distance
Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )
Data Transfer Rate
0.3kbps~50kbps
Modulation
LoRa/FSK (Note: You can choose one of them)
Supportable LoRaWAN Band
EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510
(Note: The frequency band is optional and needs to be configured before shipment)
Physical:
Dimension
117mm*89mm*41mm
Host Body Weight
1.12 kg
Working Temperature
-20°C ~ 55°C
Ambient Humidity Range
<90% RH(no condense)
Storage Temperature Range
-40°C ~ 85°C
