Features

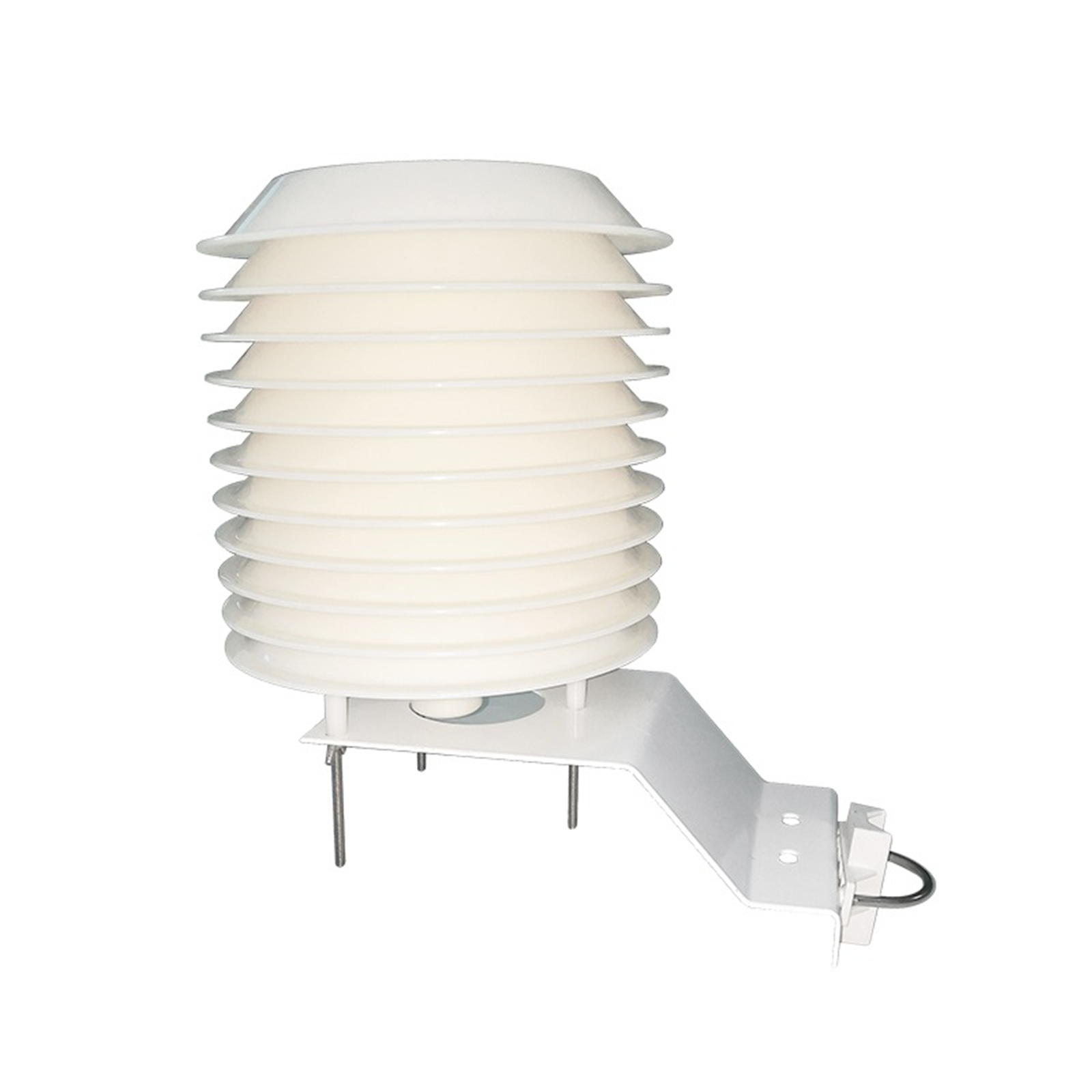

RA0716Y-Wireless Outdoor PM2.5 Temperature Humidity Sensor
RA0716Y carrying temperature and humidity sensors that can detect and send the environment temperature and humidity data with wireless communication, compatible with LoRaWAN™ protocol standards. R72716 carrying PM2.5 dust sensor which can obtain the concentration of suspended particulate matter in the air per unit volume.
- Temperature and humidity detection
- PM2.5 dust sensor
- LoRaWAN™ protocol
Download data sheet: http://www.netvox.com.tw/um/RA0716Y/RA0716Ydatasheet.pdf
Specifications
Electric:
Power supply
Adapter DC powered(12V/1.5A)
Working voltage
40mA/12V(DC)
RX current
11mA @3.3V
TX current
120mA @3.3V
Particle measurement range
0.3~1.0;1.0~2.5;2.5~10 (um)
Particle mass concentration Effective range (PM2.5 standard value)
0~500 (µg/m3)
Temperature measurement range
0°C - 60°C
Temperature measurement accuracy
+-0.5°C @25°C
Humidity measurement range
10%RH---90%RH
Humidity measurement accuracy
+/-4%RH @25°C
Frequency:
Frequency Range
868MHz,915MHz,923MHz
(Note:must be configurated before shipping)
TX power
19dBm(Typical)
Rx sensitivity
-121dBm
(Frequency deviation=5kHz,Bit Rate=1.2kb/s)
Build-in antenna
Build-in antenna
Communication range
2km(Typical output power)
Data transfer rate
1.2~50kbps
Spread technique
LoRa/FSK/OOK
Physical:
Dimension
350mm*220mm*220mm
Working Temp
-10°C ~ +50°C
Storage Temp
-40°C ~ +85°C
