Netvox LoRa module Wireless Emergency Push Button (Powered by 2 X 1.5V AAA Battery)
Out of stock
Netvox LoRa module Wireless Emergency Push Button (Powered by 2 X 1.5V AAA Battery)
- Brand: Netvox
- MPN: RB02I
- Part #: IPCNVX4808924
- UPC:
- Brand: Netvox
- MPN: RB02I
- Part #: IPCNVX4808924
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Smart Security Sensors





Netvox LoRa module Wireless Emergency Push Button (Powered by 2 X 1.5V AAA Battery)
- Brand: Netvox
- MPN: RB02I
- Part #: IPCNVX4808924

Product URL: https://www.pbtech.co.nz/product/IPCNVX4808924/Netvox-LoRa-module-Wireless-Emergency-Push-Button
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

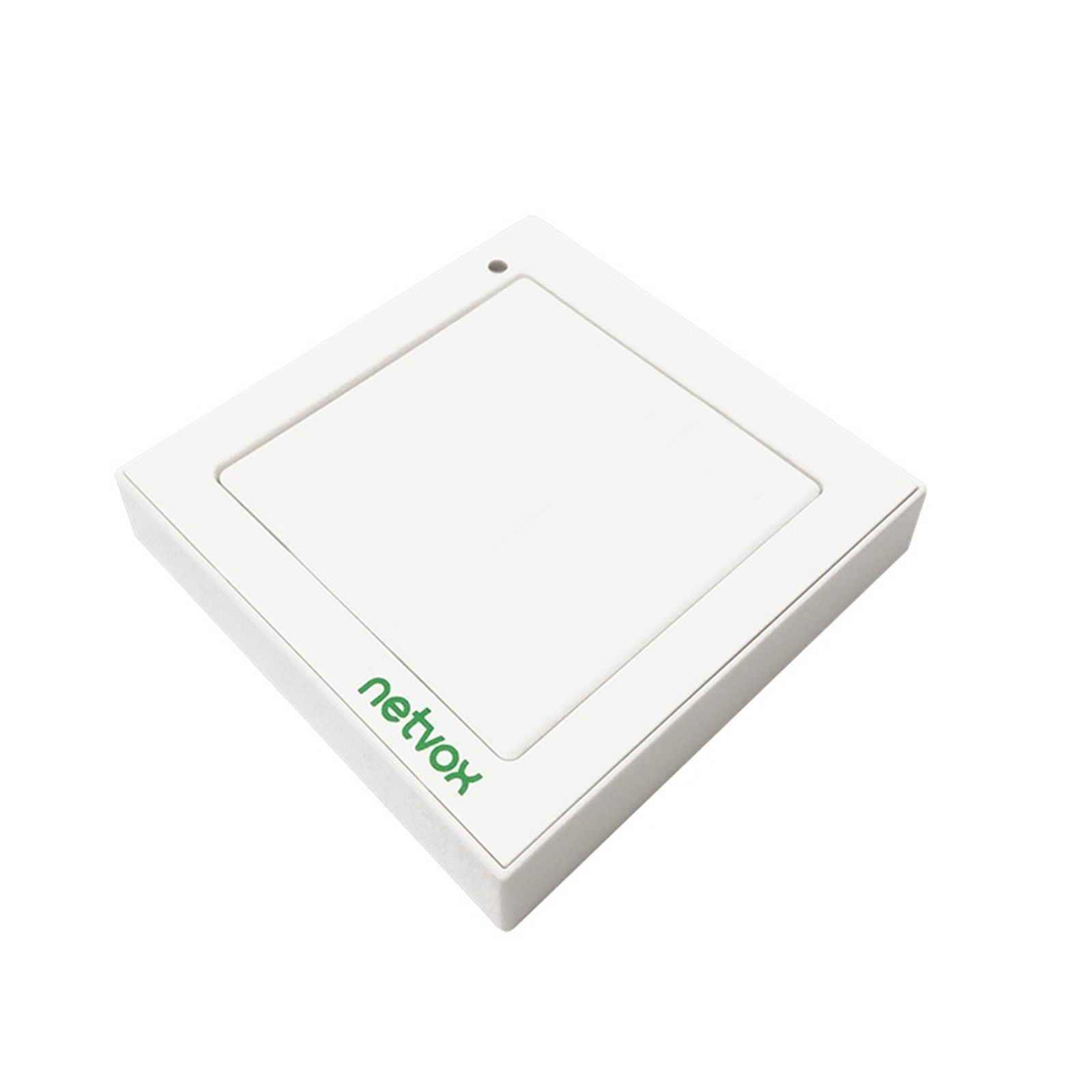

RB02I-Wireless Emergency Push Button
The RB02I product is a wireless control terminal device for smart homes and high reliability. It features low standby power consumption and is fully compliant with the LoRaWAN™ protocol standard. RB02I is an emergency alarm triggering device, with a silicone waterproof cover.
- Apply SX1276 wireless communication module
- 2x1.5V AAA alkaline batteries power supply
- Has waterproof silicone sleeve to avoid water splashing
- Push button status detection
- LoRaWAN™ Class A compatible
- Frequency Hopping Spread Spectrum (FHSS)
- Configuration parameters can be configured through a third-party software platform
- Applicable to third-party platforms: Actility / ThingPark, TTN, MyDevices / Cayenne
- Low power consumption and long battery life Improved po
Download data sheet: http://www.netvox.com.tw/um/RB02I/RB02Idatasheet.pdf
Specifications
Electric:
Input power
2 x1.5V AAA alkaline batteries
Operating Voltage
2.3V-3V
Low Battery Alarm Voltage
2.4V
Standby Current
14uA
Battery Measurement Accuracy
±0.1V
Frequency:
Frequency Range
863MHz-928MHz 470MHz-510MHz
TX Power
US915 20dbm;
AS923 16dbm;
AU915 20dbm;
CN470 19.15dbm;
EU868 16dbm;
KR920 14dbm;
IN865 20dbm;
Receiving Sensitivity
-136dBm(LoRa,Spreading Factor=12,Bit Rate=293bps );
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type
Built-in antenna
Communication Distance
Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )
Data Transfer Rate
0.3kbps~50kbps
Modulation
LoRa/FSK (Note: You can choose one of them)
Supportable LoRaWAN Band
EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510
(Note: The frequency band is optional and needs to be configured before shipment)
Physical:
Dimension
82mm*82mm*15mm
Working Temp
-20°C ~ +55°C
Storage Temp
-40°C ~ +85°C
Humidity Detecting Range
<90%RH
