oToBrite Automotive Camera oToCAM260ISP-C120M GMSL2 Sony IMX490 sensor, M9295 Serializer, 2880 x1860, HFOV 120, -40°C ~ +85°C, IP67/IP69K

PB Tech price
PB Tech price
$ 1,180 .00
 +GST
$ 1,357 .00
 inc GST

Out of stock

oToBrite Automotive Camera oToCAM260ISP-C120M GMSL2 Sony IMX490 sensor, M9295 Serializer, 2880 x1860, HFOV 120, -40°C ~ +85°C, IP67/IP69K

  • Brand: oToBrite
  • MPN: oToCAM260ISP-C120M
  • Part #: IPCOTO0001
  • UPC:
PB Tech price
$ 1,180 .00 $ 1,357 .00
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock
  • Brand: oToBrite
  • MPN: oToCAM260ISP-C120M
  • Part #: IPCOTO0001
  • UPC:

Features

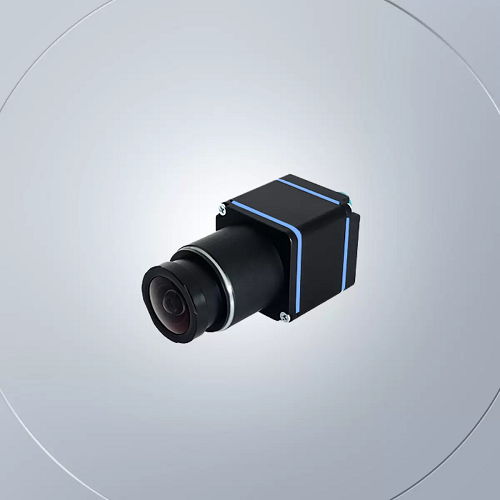

The oToCAM260ISP-C120M, offers reliable automotive-grade cameras designed for autonomous driving applications. These cameras use high-sensitivity CMOS sensors to provide solid image quality, effectively meeting the visual detection needs of system products.

Robust and durable to withstand extreme environments

oToBrite's camera modules are built through specialized production processes and rigorously tested to meet IP67 and IP69K standards, ensuring excellent dust and water resistance. These camera modules undergo vibration tests to ensure durability in harsh conditions and feature defogging capabilities to maintain clear vision in humid or rapidly changing environments. These features make the cameras highly reliable in extreme environments, capable of operating at temperatures ranging from -40°C to +85°C. Whether used in desert, mountainous, or wet, humid climates, oToBrite's camera modules consistently provide stable and clear image output.

Cutting-edge active alignment technology for image precision

oToBrite's proprietary 5/6-axis active alignment technology significantly enhances optical precision by minimizing the optical axis deviation to just 1 pixel. This ensures that every pixel in the image maintains optimal clarity, delivering superior image quality. By integrating advanced optical design with automated manufacturing processes, this technology achieves unprecedented alignment accuracy, allowing the system to produce sharp and clear images.

Excellent performance with Sony image sensor technology

The IMX490 sensor delivers a high resolution of 2896 × 1876, featuring the industry's highest effective 5.4 megapixels, ideal for wide-angle shooting in ADAS and autonomous driving. With HDR (high dynamic range) of 120 dB (up to 140 dB when prioritizing dynamic range), it incorporates LFM (LED Flicker Mitigation) technology to ensure clear and stable imaging in various environments, making it perfect for intelligent driving systems.

Specifications

View angle (H)

120°

Lens F No.

F1.6

IR cut edge

650nm

DOF/ Object distance

2.1M~inf.@ inf

Resolution

TV line Center >= 1100,Corner>= 900

Dimensions

28*28*59 mm
(exclude FAKRA connector)

Weight

67.4g

Image sensor

CMOS (Sony IMX490)

HDR

Supported

LFM

Supported

Optical format

1/1.55"

Pixel size

3.0µm (H) × 3.0µm (V)

ISP

Yes

ISP chip

GW5300

Camera output pixel number

5.36M (2880 (H) × 1860 (V))

Color filter array

RGGB

Output interface

GMSL2 with POC

Output formats

MIPI 4lane YUV422 8bits

S/N ratio

52.10 dB

Power source (POC)/ Typical

DC 9~12V/ 9V

Startup time of power in

Within 2000ms (SerDes & ISP initialization)

Frame rate

30 fps (By setting)

Serializer

MAX9295

Connector

Amphenol SMB1251Y3-002-TT5GP-50

Camera current consumption

<= 230mA @12V/ 25°C

Operating temperature

-40°C ~ +85°C

Storage temperature

-40°C ~ +95°C

Dust/ Waterproof

IP67/ IP69K

Manufacturer Part No:
oToCAM260ISP-C120M
Brand:
oToBrite
Product Type:
GMSL2
UPC
-
Product Family:
Automotive Camera
Shipping Weight:
0.2 kg
PB Part No:
IPCOTO0001
Product Model:
oToCAM260ISP-C120M
Warranty: 12 months *
