Features

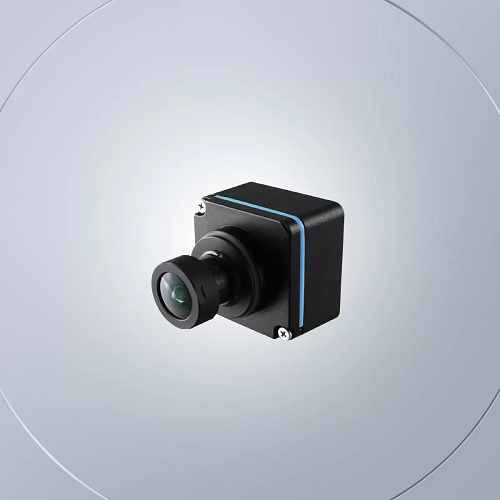

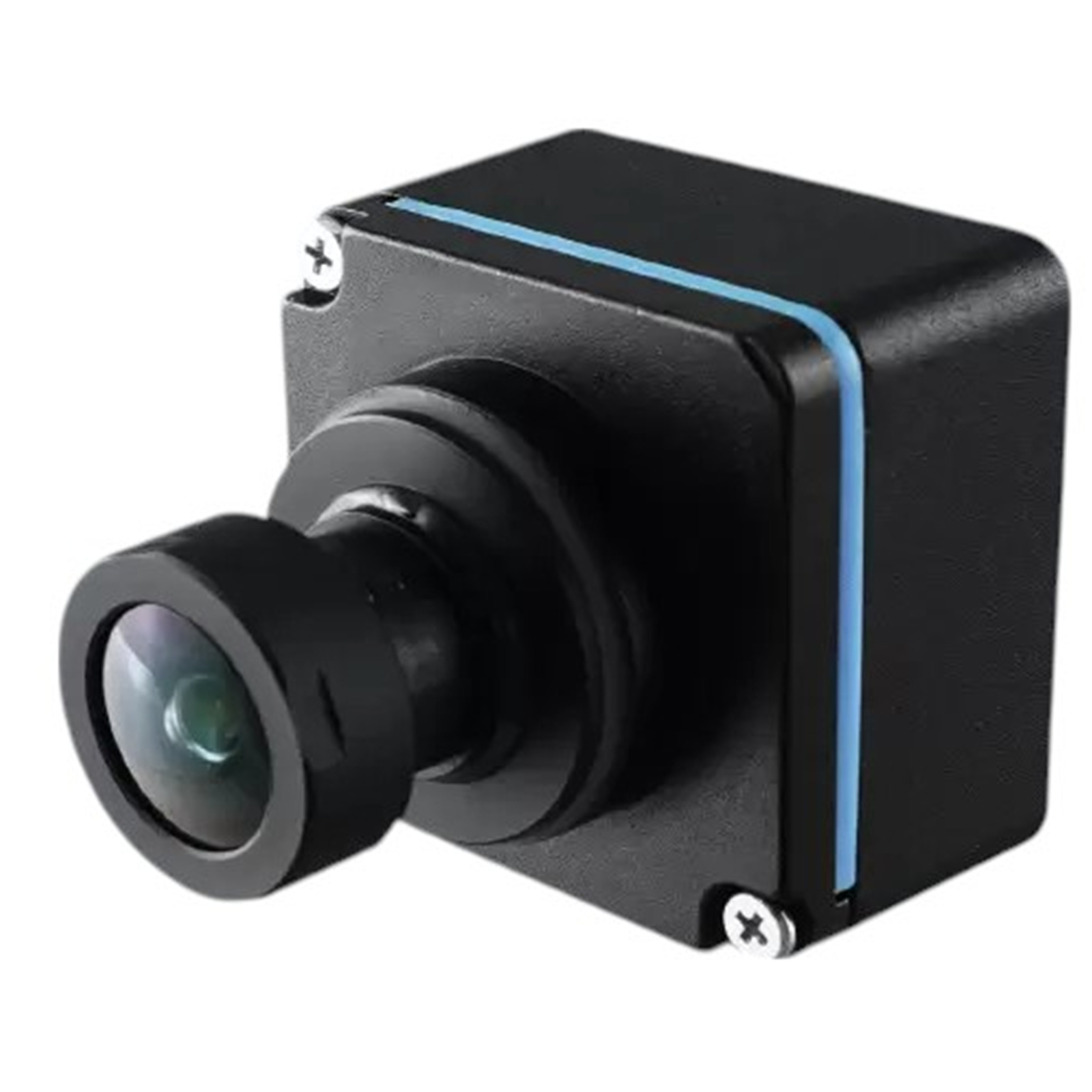

oToBrite Automotive Camera oToCAM222-C120M
The oToCAM 2MP/3MP resolution series is an automotive-grade camera for the application of autonomous driving system. It uses a high-sensitive CMOS sensor to perform good image quality for the detection purpose of the system product.
Robust and durable to withstand extreme environments
oToBrite's camera modules are built through specialized production processes and rigorously tested to meet IP67 and IP69K standards, ensuring excellent dust and water resistance. These camera modules undergo vibration tests to ensure durability in harsh conditions and feature defogging capabilities to maintain clear vision in humid or rapidly changing environments. These features make the cameras highly reliable in extreme environments, capable of operating at temperatures ranging from -40°C to +85°C. Whether used in desert, mountainous, or wet, humid climates, oToBrite's camera modules consistently provide stable and clear image output.

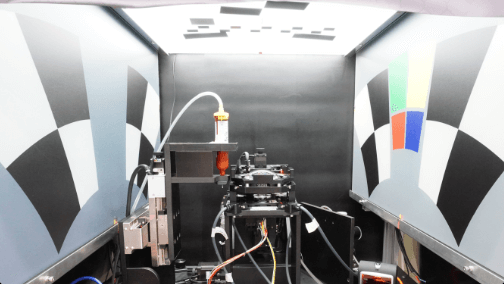

Cutting-edge active alignment technology for image precision
oToBrite's proprietary 5/6-axis active alignment technology significantly enhances optical precision by minimizing the optical axis deviation to just 1 pixel. This ensures that every pixel in the image maintains optimal clarity, delivering superior image quality. By integrating advanced optical design with automated manufacturing processes, this technology achieves unprecedented alignment accuracy, allowing the system to produce sharp and clear images.
Excellent performance with Sony image sensor technology
The ISX021 sensor delivers a 1920 x 1280 resolution with a wide 120 dB HDR (high dynamic range), supporting smooth 30 fps output. With integrated LFM (LED flicker mitigation) and System-on-Chip (SoC) design, ISX021 is tailored for automotive imaging and monitoring, ensuring clear and stable visual performance.

Specifications
View angle (H)
120.6°
Lens F No.
F1.4
IR cut edge
650nm
DOF/ Object distance
1.0M~inf.@inf
Resolution
TBD
Dimensions
28*28*32.7 mm (exclude FAKRA connector)
Weight
27.6g
Image sensor
CMOS (Sony ISX021)
HDR
Supported
LFM
Supported
Optical format
1/2.57"
Pixel size
3.0µm (H) × 3.0µm (V)
ISP
Supported (SoC Sensor)
Camera output pixel number
2.46M (1920 (H) × 1280 (V))
Color filter array
RGGB
Output interface
GMSL2 with POC
Output formats
MIPI 4lane YUV422 8bits
S/N ratio
51.35 dB
Power source (POC)/ Typical
DC 6 ~ 12V/6V
Startup time of power in
Within 200ms
Frame rate
30 fps (By setting)
Serializer
MAX9295
Connector
Amphenol SMB1251Y3-002-TT5GP-50
Camera current consumption
<=120mA @12V/25°C
Connector
Goldenconn Electronic Technology Co., Ltd. 1FABN24F01PNTV00
Operating temperature
-40°C ~ 85°C
Storage temperature
-40°C ~ +95°C
Dust/ Waterproof
IP67/ IP69K
