Fanvil Hospitality H1 black hotel phone with HD audio, SIP hotspot, customisable faceplate & 8 BLFkeys (optional PSU sold separately)
Fanvil Hospitality H1 black hotel phone with HD audio, SIP hotspot, customisable faceplate & 8 BLFkeys (optional PSU sold separately)
- Brand: Fanvil
- MPN: FAN-H1-B
- Part #: IPHFAN1097
- UPC:
- Brand: Fanvil
- MPN: FAN-H1-B
- Part #: IPHFAN1097
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular IP Phones
Fanvil Hospitality H1 black hotel phone with HD audio, SIP hotspot, customisable faceplate & 8 BLFkeys (optional PSU sold separately)
- Brand: Fanvil
- MPN: FAN-H1-B
- Part #: IPHFAN1097
Product URL: https://www.pbtech.co.nz/product/IPHFAN1097/Fanvil-Hospitality-H1-black-hotel-phone-with-HD-au
Branch | New Stock | On Display |
---|---|---|
Albany | 0 | |
Glenfield | 0 | |
Queen Street | 0 | |
Auckland Uni | 0 | |
Newmarket | 0 | |
Westgate | 0 | |
Penrose | 0 | |
Henderson (Express) | 0 | |
St Lukes | 0 | |
Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Head Office | 2 | |
Hornby | 0 | |
Christchurch Central | 0 |
Features

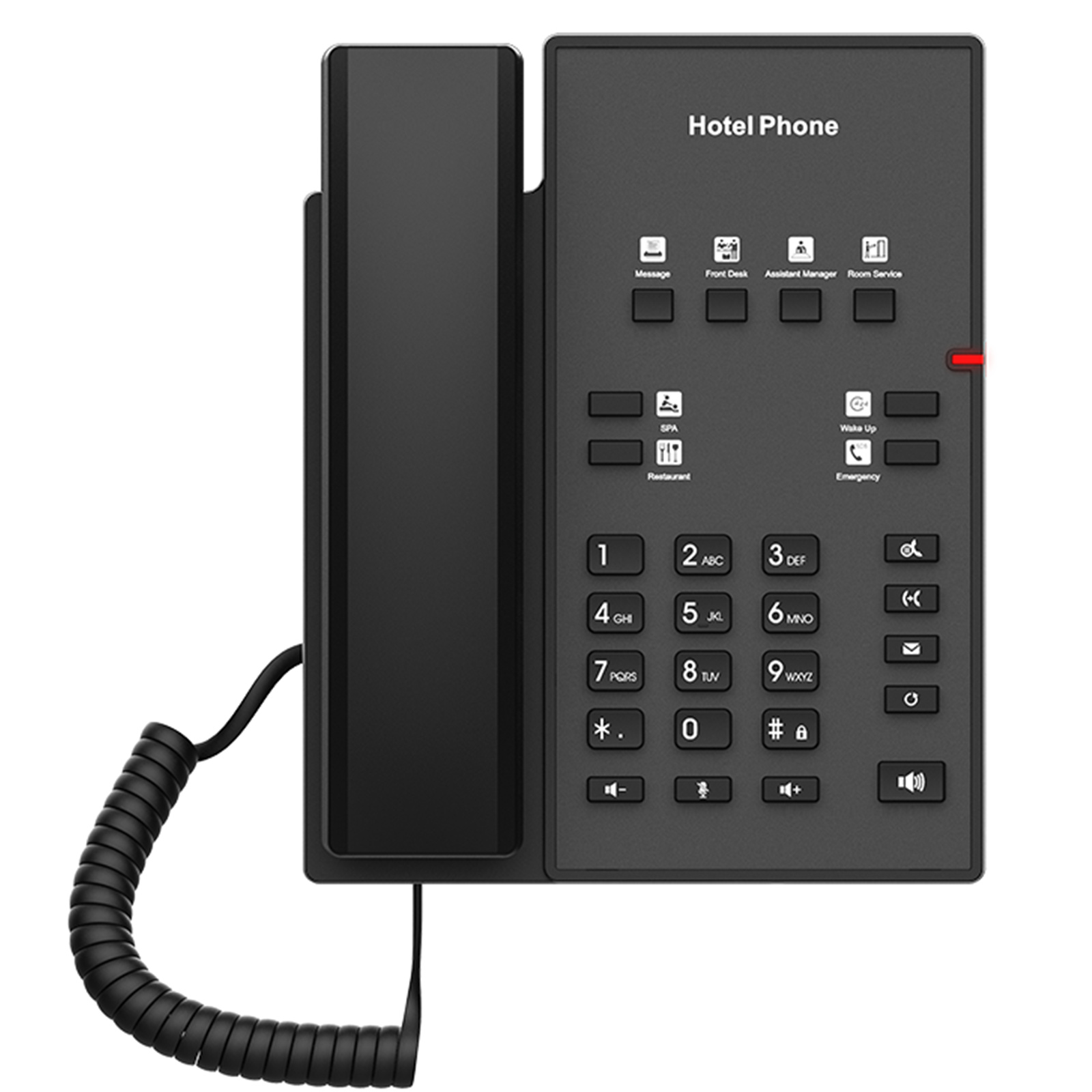

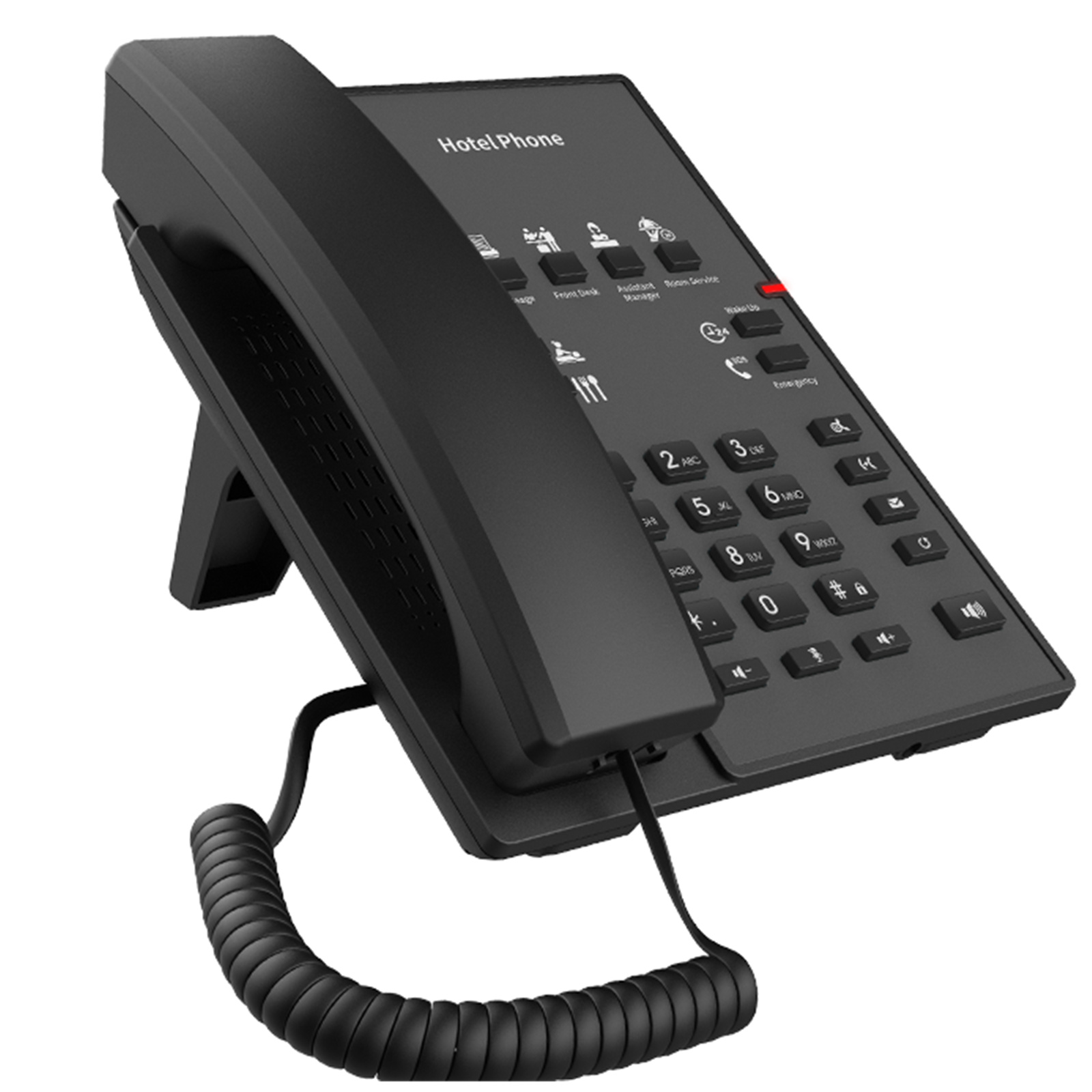

Fanvil H1 black hotel IP phone
Fanvil H1 is a hotel IP phone with a cost-effective, multi-function, and elegant appearance. It is equipped with 8 programmable soft keys for the services hotline, meeting the application requirements of various hotel scenarios. In addition, H1 supports functions such as HD audio, 10/100Mbps network port, and integrated PoE, providing a high-quality user experience and reducing the cost of hotel deployment. It is more than a hotel phone and also can be applied in multiple scenarios, such as shopping malls, hospitals, and supermarkets.
- Elegant and fashionable product appearance
- 8 programmable soft keys for service hotline
- Unique customized faceplate
- Support audio codec G.722 and Opus, handling varieties of audio applications
- 10/100 Mbps port, integrated PoE
- Two installation methods of desktop stand and wall mountable
Specifications
Generic
2 SIP Lines ?
HD Voice ?
PoE
Hand set / Hands-free mode ?
Intelligent DSS Keys (speed dial key)
Desktop Stand / Wall Mountable(optional)
Optional External Power Supply
Phone Functions
Call logs (In/Out/Missed, Max support 600 records in the web)
Programmable DSS/soft keys ?
Action URL / Active URI
Web dial
Dial plan ?
SIP Hotspot
Distinctive ring
Multicast
Call Functions
Call out / Answer ?
Mute / Unmute ?
Call Hold / Resume ?
Speed Dial
Redial
Call Forward (Always/Busy/No Answer)
Call Transfer (Attended/Unattended)
Hot Line ? Voice Message
Audio
Wideband ADC/DAC 16KHz sampling
Narrowband codec: G.711A/U, G.729AB, G723.1, G726, iLBC?
Wideband codec: G.722, Opus ?
Full-duplex hands-free speakerphone with AEC
Voice Activity Detection (VAD) / Comfort Noise Generation(CNG)/ Background Noise Estimation (BNE) / Noise Reduction(NR)/Automatic Gain Control (AGC)
Packet Loss Concealment (PLC)
Dynamic Adaptive Jitter Buffer ?
DTMF: In-band, Out-of-Band - DTMF-Relay (RFC2833) / SIPINFO?
VQM voice quality monitoring
Network
10/100 Mbps Ethernet
IP Mode:IPv4/IPv6/IPv4&IPv6
IP Configuration: Static / DHCP / PPPoE
Network Access Control: 802.1x ? VPN: L2TP / OpenVPN
VLAN: 802.1P/Q
QoS
LLDP
RTCP-XR (RFC3611), VQ-RTCPXR(RFC6035)
Protocols
SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
RTP/RTCP/SRTP
STUN
DHCP
IPv6
PPPoE
L2TP
OpenVPN
SNTP
FTP/TFTP
HTTP/HTTPS
TR-069
Deployment & Management
Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
Web management portal
Web-based packet dump
Configuration export / import
Firmware upgrade
Syslog
Physical Specifications
Keypad: 28 keys, including
12 Standard Phone Digits keys
8 DSS keys
4 Function keys (Hold, Call Transfer, Redial, MWI)
3 Volume Control keys, Up/Down/Mute(with red color LED)
1 hands-free key
MSG indicator (with red color LED) x1
Handset (RJ9) x1
Standard RJ9 Handset Cord x1
1.5M CAT5 Ethernet Cable x1
RJ9 Port x1: Handset x1
RJ45 Port x1: Network x1
Power: 5V/0.6A or PoE
Power Consumption (PoE): 1.28W~ 2.12W?
Power Consumption (Adapter): 0.669W~ 1.438W?
Working Temperature: 0~45?? Working Humidity: 10~95%
Installation: ?
Desktop
Wall Mountable (optional)
Device Dimensions:
Desktop Stand (31°):169x184x124mm?
Desktop Stand (35°):169x184x135mm?
Wall Mountable:169x95.3x201.6mm
