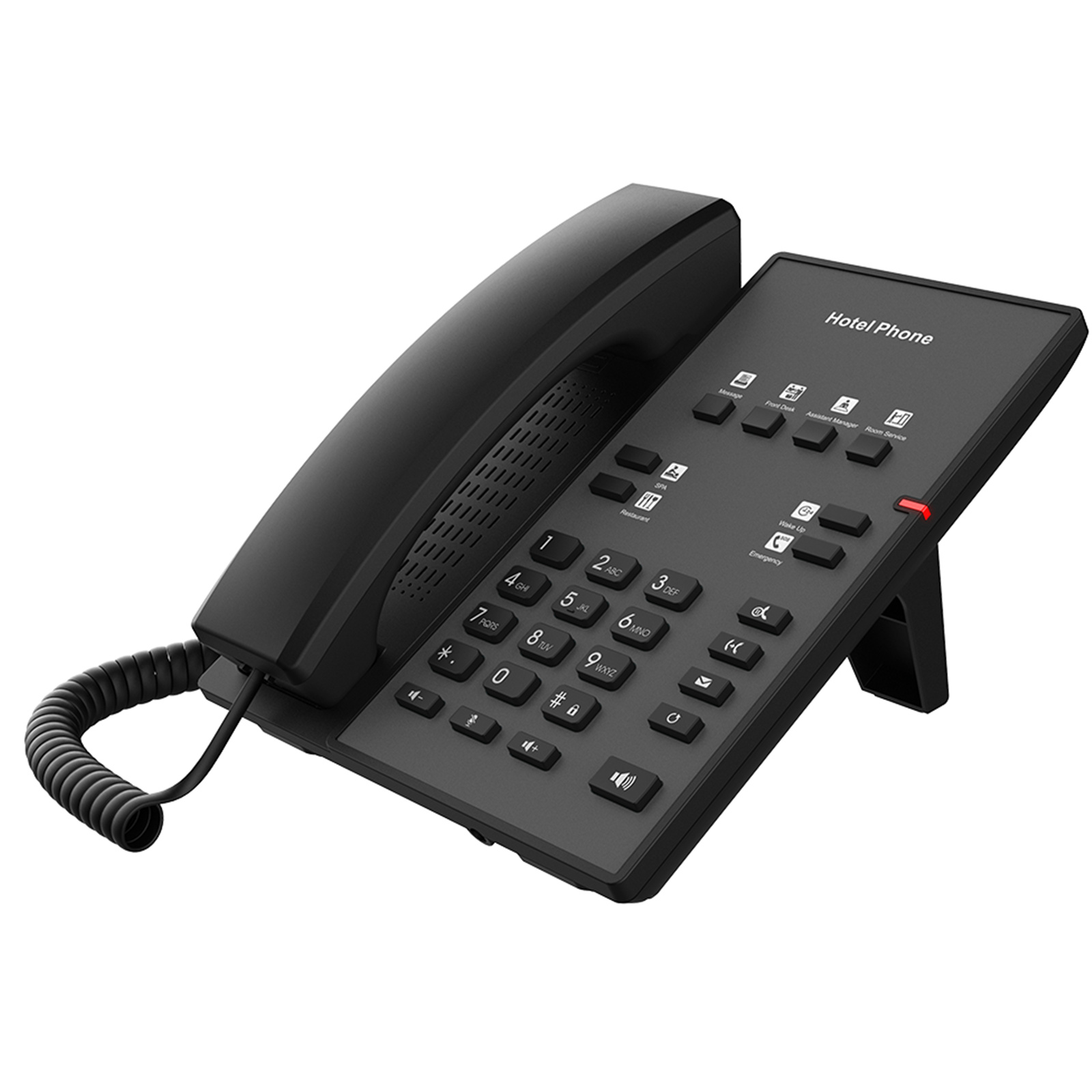

Fanvil H1 2 Wire Entry Level Black Hotel Phone
Fanvil H1 2 Wire Entry Level Black Hotel Phone
- Brand: Fanvil
- MPN: FAN-H1-2W
- Part #: IPHFAN1171
- UPC:
- Brand: Fanvil
- MPN: FAN-H1-2W
- Part #: IPHFAN1171
- UPC:
Similar in-stock products available at PB Tech right now
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular IP Phones





Fanvil H1 2 Wire Entry Level Black Hotel Phone
- Brand: Fanvil
- MPN: FAN-H1-2W
- Part #: IPHFAN1171

Product URL: https://www.pbtech.co.nz/product/IPHFAN1171/Fanvil-H1-2-Wire-Entry-Level-Black-Hotel-Phone
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

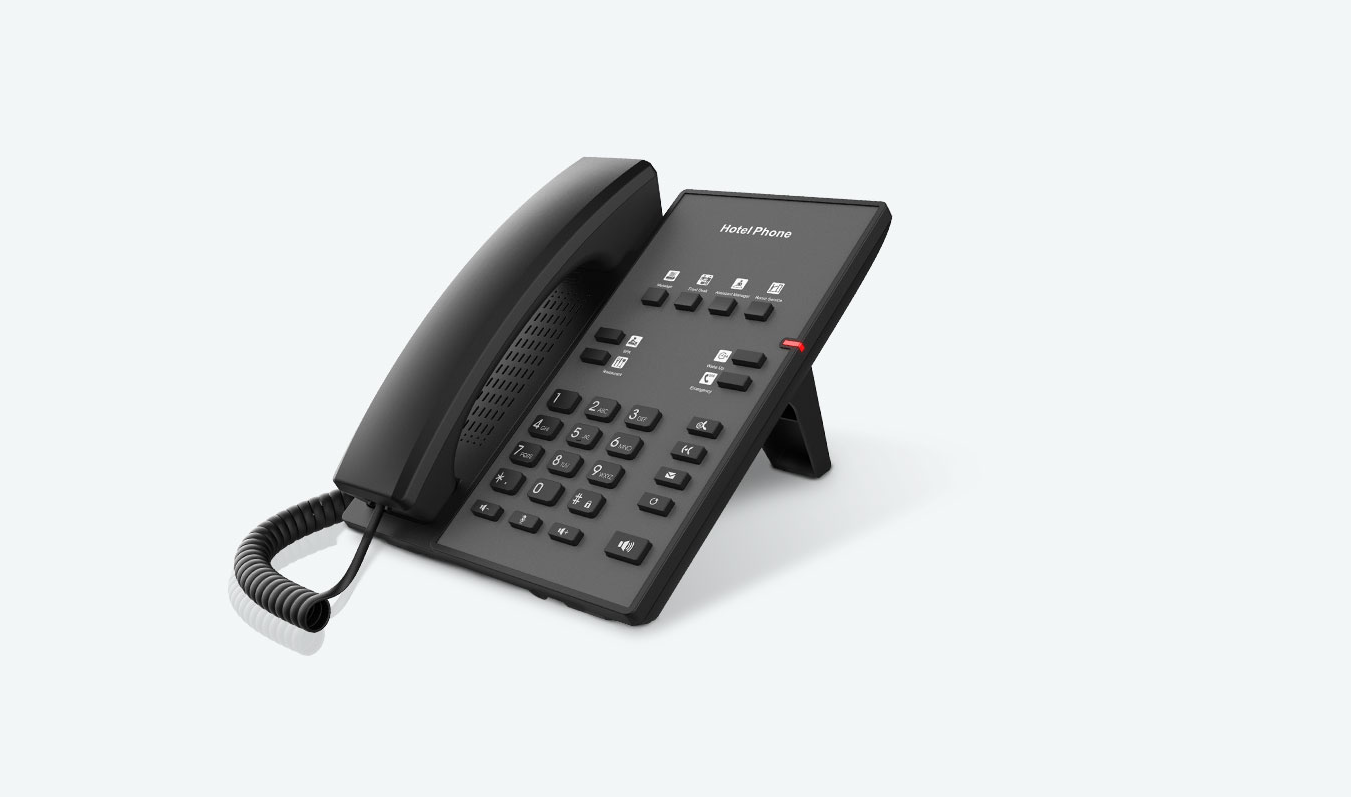

Fanvil H1-2 Wire Hotel Phone is an upgraded version of the original IP phone, featuring a brand-new power and network supply technology by using a 2-wire connection. This allows for complete reuse of old wiring, eliminating the need for costly rewiring. H1-2 Wire Hotel Phone is equipped with 8 programmable keys and supports HD voice and 2-Wire PoE power supply, meeting diverse hotel room scenarios. Its low-cost and rapid deployment enables hotel phone network upgrades, significantly enhancing operational efficiency and guest experience.
- Connect via an RJ11 interface and support 2-Wire power and network supply
- Integrated with a 2-Wire PoE switch for fast network configuration
- 8 programmable soft keys for service hotline
- Unique customized faceplate
- Support audio codec G.722 and Opus, HD voice on speakerphone and handset
- Support wall-mount installation

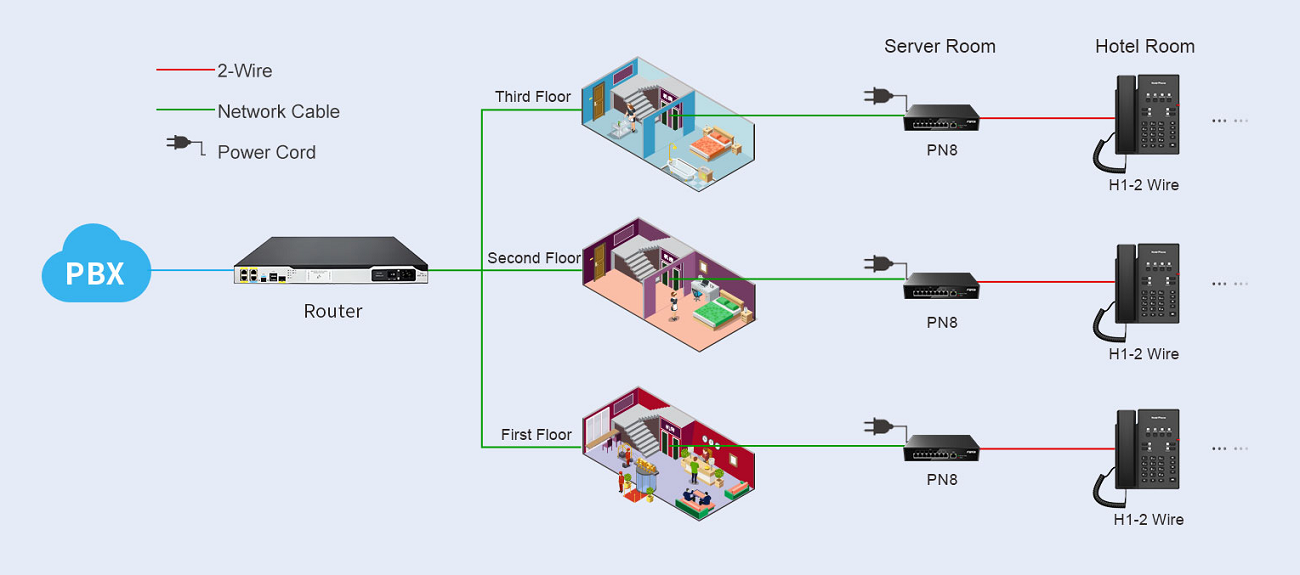

2-Wire Deployment Plug and Play
With 2-wire power supply and network connection, H1-2 Wire hotel phone makes the most of existing wires, greatly cutting down on installation time and deployment costs. It can also integrate with Fanvil 2-wire PoE switches (PN8/PN24), streamlining network configuration.
Unique Faceplate Customization, Get Clear Information
Fanvil H1-2 Wire hotel phone offers customizable faceplate colors. Users can personalize icons and hotel information through Fanvil online customization tool and preview the complete design before finalizing their choice.

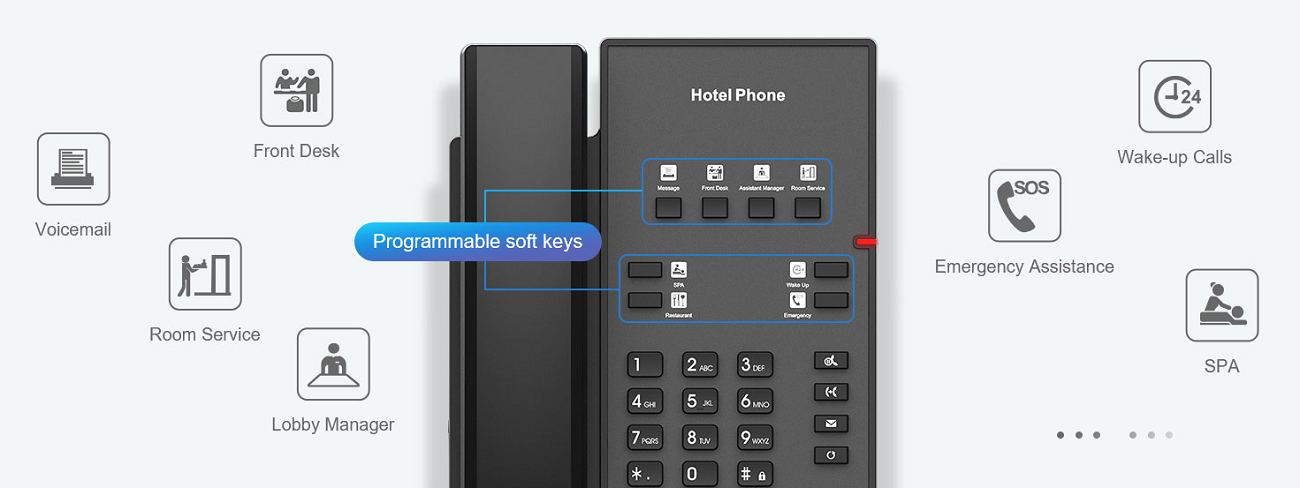

8 Programmable Soft Keys, One-click Call for Services
Fanvil H1-2 Wire hotel phone features 8 programmable soft keys for service hotlines (Voicemail, Front Desk, Lobby Manager, and Room Service, etc.) and considerate hotel services (SPA, Wake-up Calls, Dining Services, and Emergency Assistance, etc.), allowing guests to quickly access hotel services with greater ease and convenience.
Diagram
Specifications
Scenario
Hotel
System
Linux

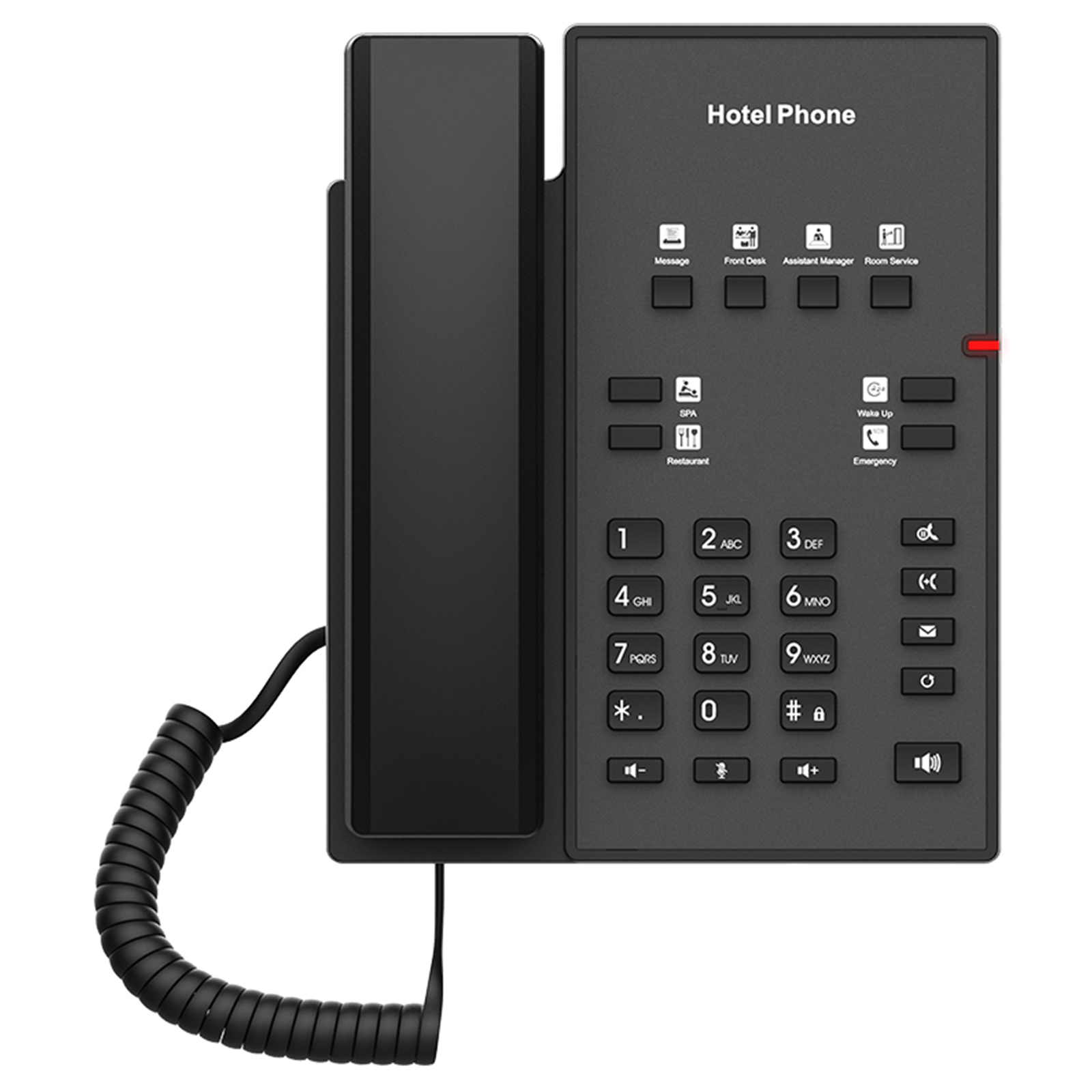

Screen/Keyboard
12 Standard Phone Digits keys
8 DSS keys
4 Function keys (Hold, Call Transfer, Redial, MWI)
3 Volume Control keys, Up/Down/Mute(with red color LED)
1 hands-free key
Body
Plastic
Color
Black
Status Light
1(Red)

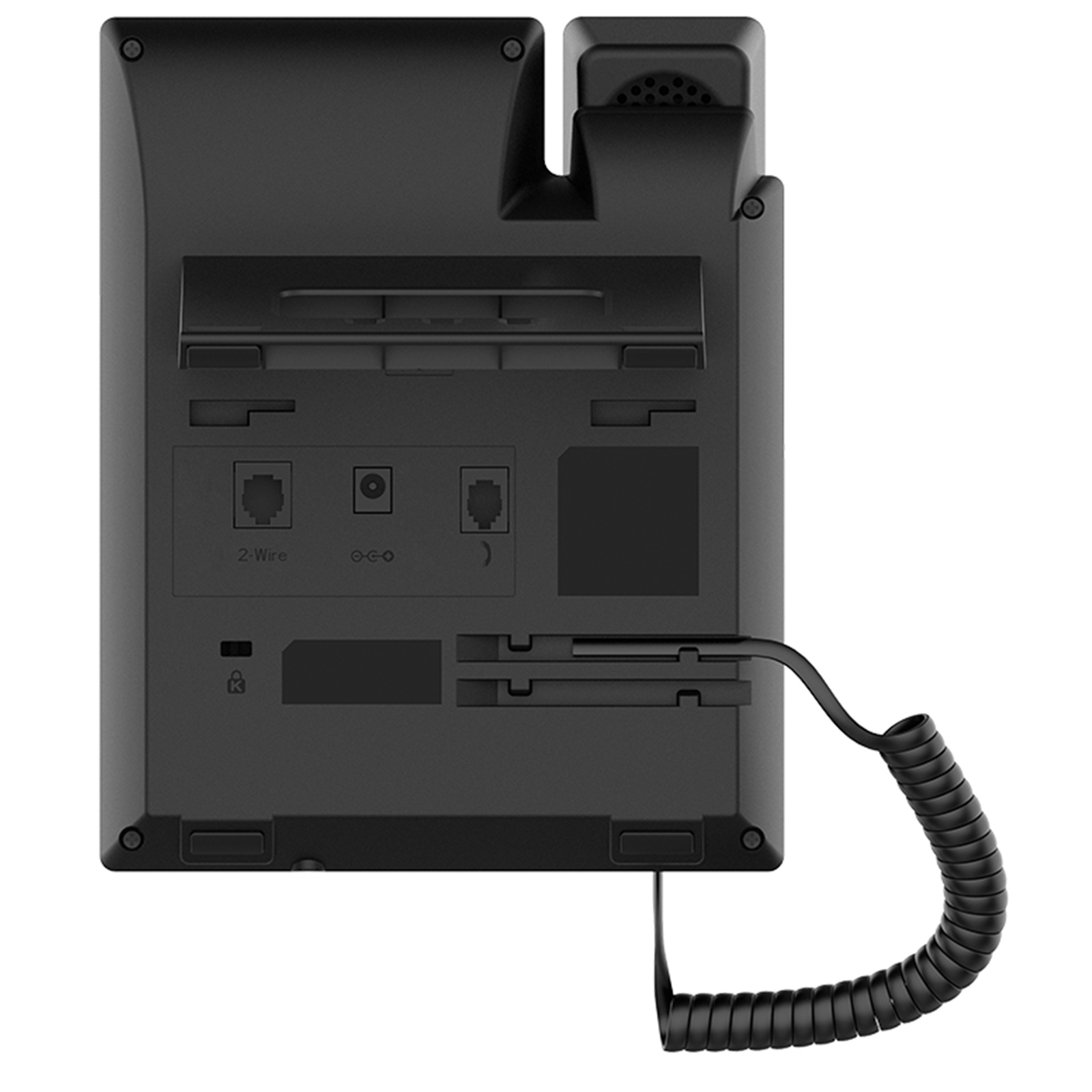

Interface
Wire interface(6P2C RJ11 interface)
Power interface
RJ9 interface(Handset x1)
Security Slot x1
Power
DC 12V/1A
2-Wire PoE Switch supply power
Working Temperature 20-? - +45?
Installation
Desktop
Wall mountable ((Need to purchase accessories separately)
Functional Capabilities
Protocols
SIP2.0 over UDP/TCP/TLS, RTP/RTCP/SRTP, STUN, DHCP, IPv6, LLDP, PPPoE, 802.1x, L2TP,
OpenVPN, SNTP, FTP/TFTP, HTTP/HTTPS, TR-069, AES128 & AES256
Video
HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
Wideband ADC/DAC 16KHz Sampling
Narrowband Codec: G.711a/u, G.723.1, G.726, iLBC
Wideband Codec: G.722, Opus
Full-duplex Acoustic Echo Canceller (AEC)
Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE)
/ Noise Reduction (NR) / Automatic Gain Control (AGC)
Packet Loss Concealment (PLC)
Dynamic Adaptive Jitter Buffer
DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO)
VQM voice quality monitoring
Network
IP Mode: IPv4/IPv6
IP Configuration: Static IP / DHCP / PPPoE
Network Access Control: 802.1x
VPN: L2TP / OpenVPN
VLAN
LLDP
QoS
RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
Phone Functions
Call logs (In/Out/Missed, 600 entries)
Blocked List/Allowed List
Voice Message Waiting Indication (VMWI)
Programmable DSS/Soft keys
Network Time Synchronization
Support Recording (Through Server)
Action URL / Active URI
uaCSTA
Call Functions
Call out / Answer / Reject
Mute / Unmute (Microphone)
Call Hold / Resume
Speed Dial
Call Forward (Always/Busy/No Answer)
Call Transfer (Attended/Unattended)
Redial
Voice Message (With server)
Hot Line
Deployment Management
Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
Web Management Portal
Web-based Packet Dump
Configuration Export / Import
Phonebook Import/Export
Firmware Upgrade
Syslog
