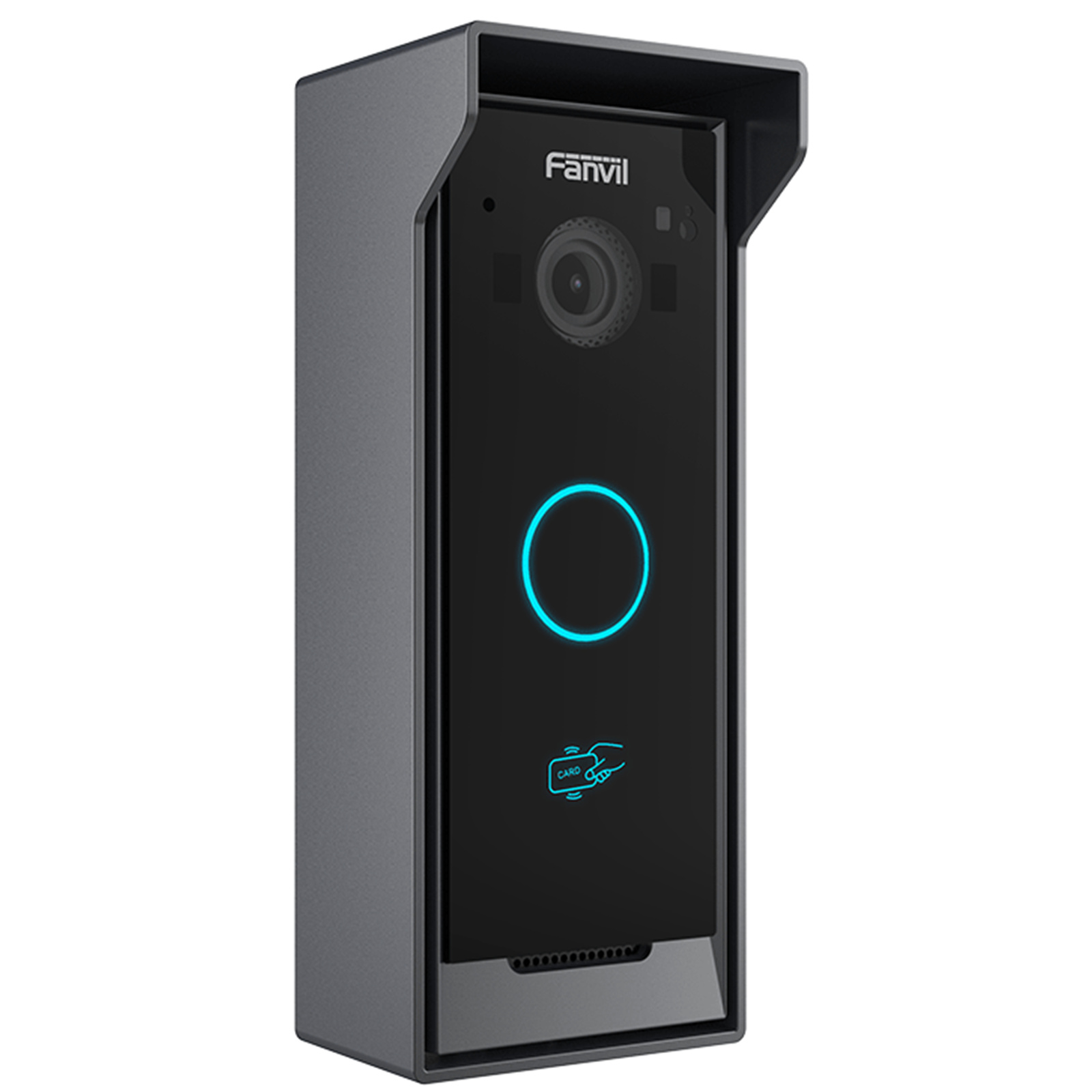

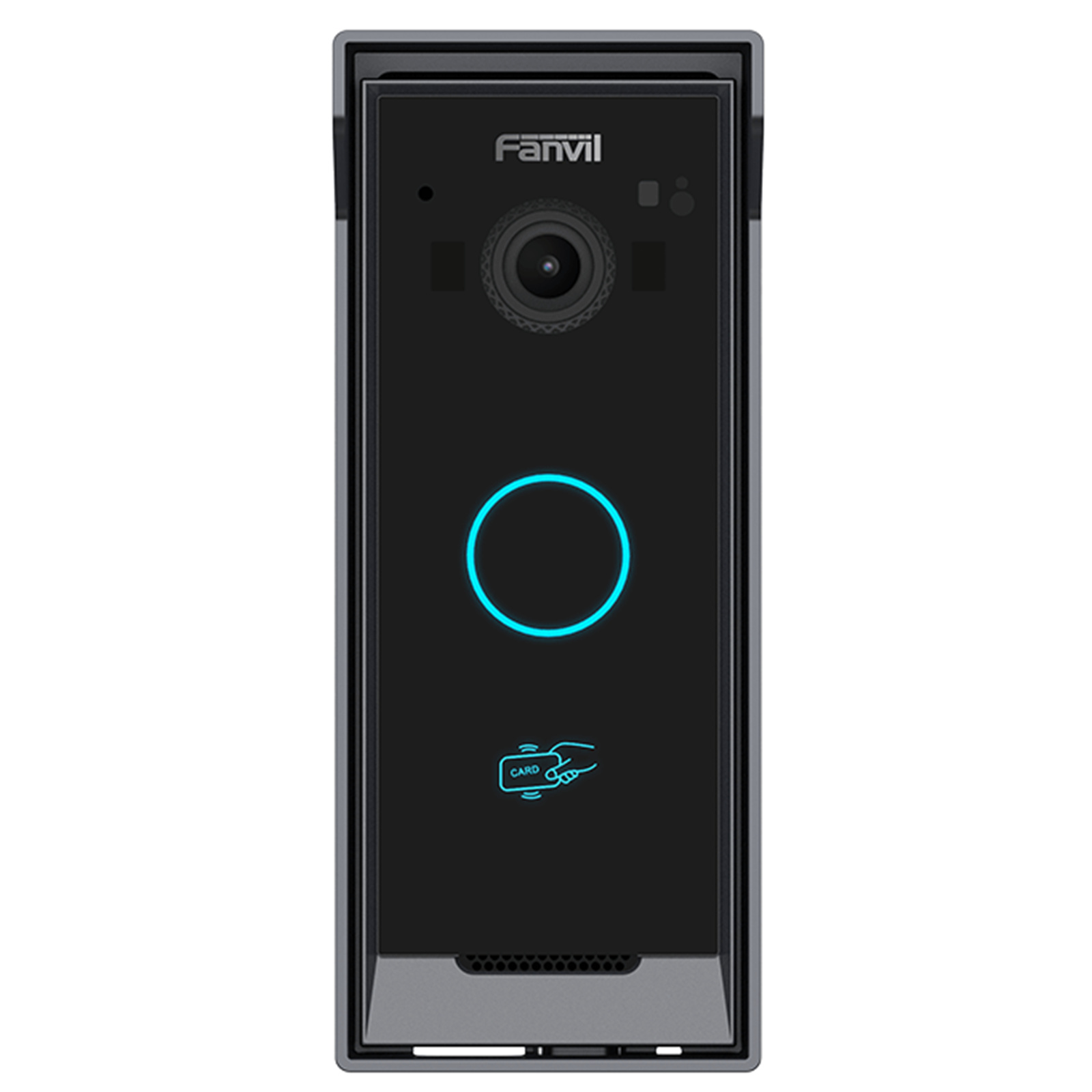

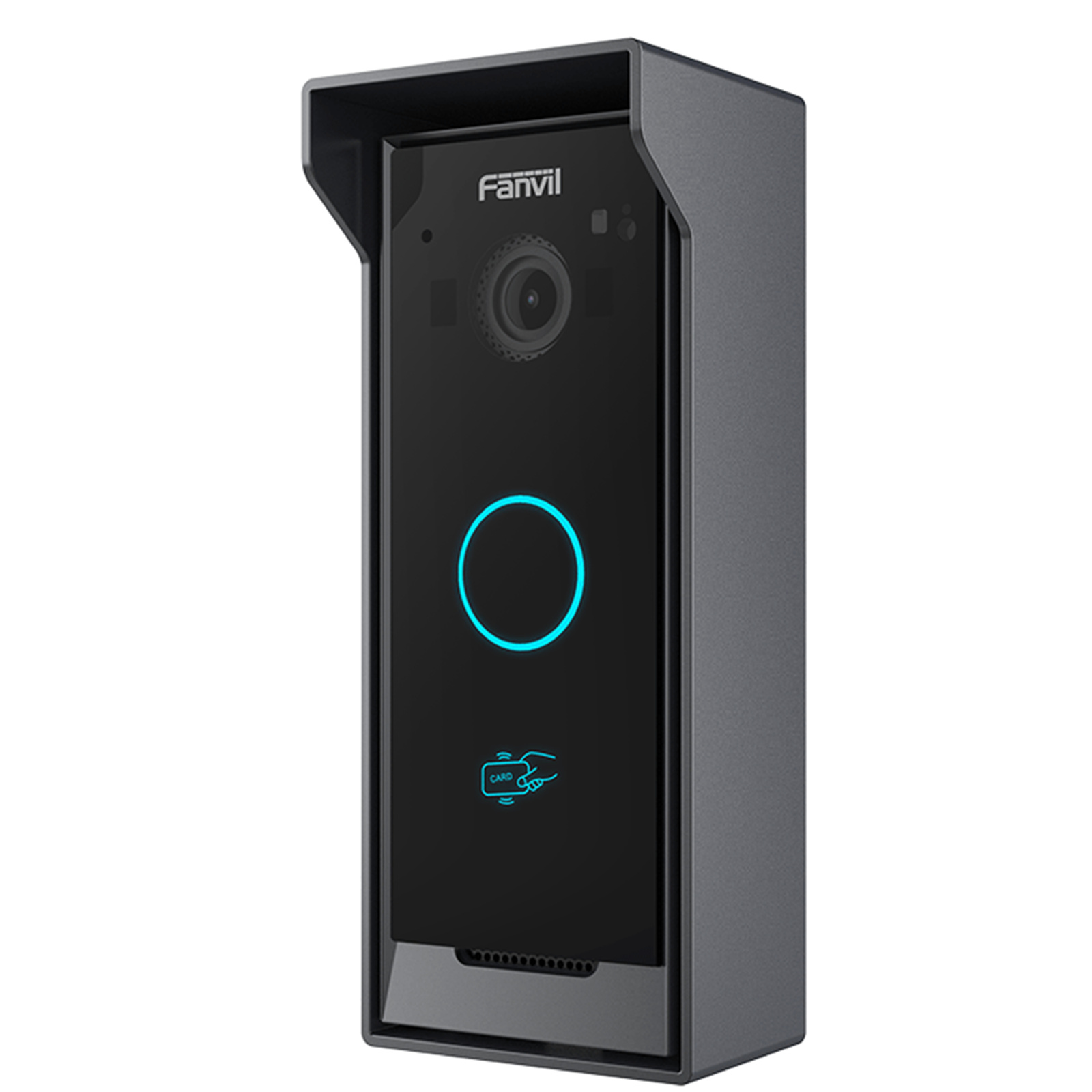

Fanvil FAN-i60 i60 access control door phone

PB Tech price
PB Tech price
$ 146 .96
 +GST
$ 169 .00
 inc GST
$146.96  +GST
$169.00

Fanvil FAN-i60 i60 access control door phone

  • Brand: Fanvil
  • MPN: FAN-i60
  • Part #: IPHFAN1179
  • UPC:
PB Tech price
$ 146 .96 $ 169 .00
 +GST  inc GST

No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 30 Sep When will I receive it?
$146.96  +GST
$169.00
  • Brand: Fanvil
  • MPN: FAN-i60
  • Part #: IPHFAN1179
  • UPC:

Colour

Black

Interface

RJ45

Microphone

Yes

Microphone Noise Cancelling

Not Specified

Noise Cancelling

Not Specified

Sound Mode

Not Specified

Wireless Technology

N/A

Features

Fanvil i60 is a compact video door phone with a speed dial button and an IP65 rating for indoor and outdoor use. It supports various door-opening methods such as BLE, IC cards, remote DTMF and indoor switches for streamlined access management and is equipped with a 2 mega-pixel camera for audio and video communication. Compatible with SIP and ONVIF, it integrates with security systems and is ideal for villas, apartments, and communities.

- High protection level of IP65, wide temperature range from -40°C to 70°C
- Support multiple access methods: BLE, IC cards, DTMF, indoor switches
- Equipped with 1 speed-dial button
- 2 mega-pixel wide-angle camera with night vision
- Compatible with ONVIF standard protocol

Compact and Convenient

i60 boasts a compact design that saves space and allows for effortless installation. It features a physical speed-dial button with a tri-color indicator, ensuring user-friendly operation even in low-light conditions.

High Protection Level

Featuring high waterproof and dustproof capabilities with a wide temperature range from -40°C to 70°C, the 160 performs well in most outdoor environments. Anti-tamper will alarm and report to the control center when the cover is unauthorized opened.

Efficient Access Control

i60 allows users to achieve access control with mobile App, BLE, IC cards and DTMF code. It provides clear video image even in darkness with an infrared night-vision camera.

Remote Door Opening with Fanvil Link App

Residents can enable Bluetooth Unlock permission in the Fanvil Link App and conveniently unlock the door by simply shaking their phones.

Specifications

Panel Type

Multi-apartment, Community, Villa

Keyboard

1 Speed-dial Button

Body

ABS+PC

Colors

Panel: black, Housing: Gunmetal

Sensor

1/2.9-inch,CMOS

Camera

2 Mpx, Support infrared

Viewing Angle

140°(FOV) 100°(Horizontal) 57°(Vertical)

Output video

H.264 (Baseline, Main Profile)

Light Sensitivity

0.1Lux (Infrared/White light fill light)

Card Storage

1,0000

Power Consumption

PoE:1.63~6.93W
Adapter: 1.51~6.16W

Power Supply

DC 12V / 1A
PoE 802.3af Class 3

Working Temperature

-40℃~+70℃

Storage temperature

-40℃~+70℃

Size of the Panel (LWH)

50*130*30mm

IP / IK Level

IP65

Installation

Wall-mounted
Rain cover

Functional Capabilities

Supported Protocols

SIP 2.0 over UDP/TCP/TLS

Lock Opening

IC Card,By DTMF Code,Remote Door Opening, BLE

Interface

Wiegand Input/Output
Short Circuit Input/Output

Supported Wiegand

26, 34 bit

Supported ONVIF Types

Profile S

Supported Standards

DTMF, IC Card, Indoor Switch, BLE

Cards

13.56 MHz

Talking Mode

Full duplex (High-definition Audio)

Additionally

Built-in relay,Motion detection,Tamper Alarm,TF Card,Open API

Manufacturer Part No:
FAN-i60
Brand:
Fanvil
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.5 kg
PB Part No:
IPHFAN1179
Product Model:
-
Warranty: 12 months *
