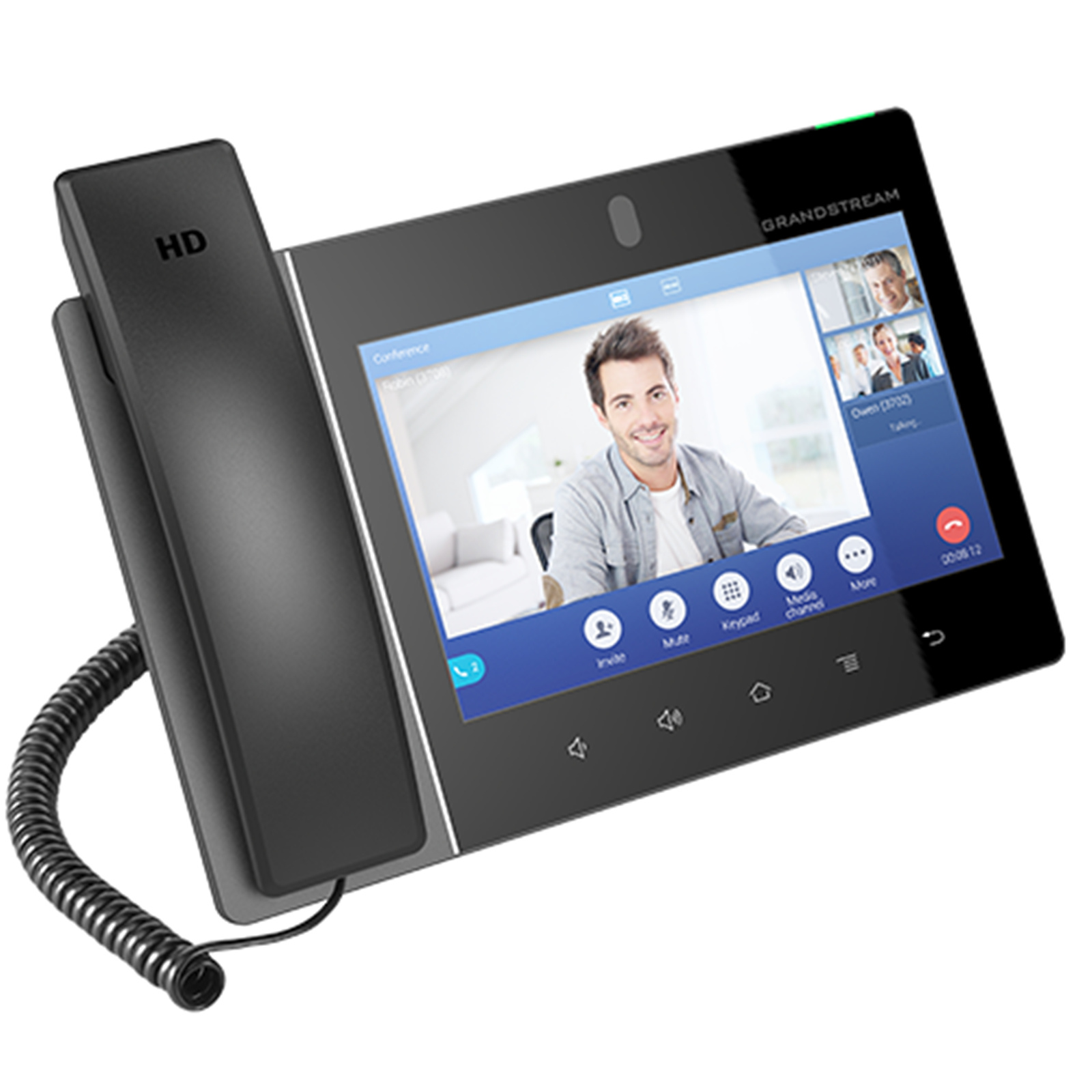

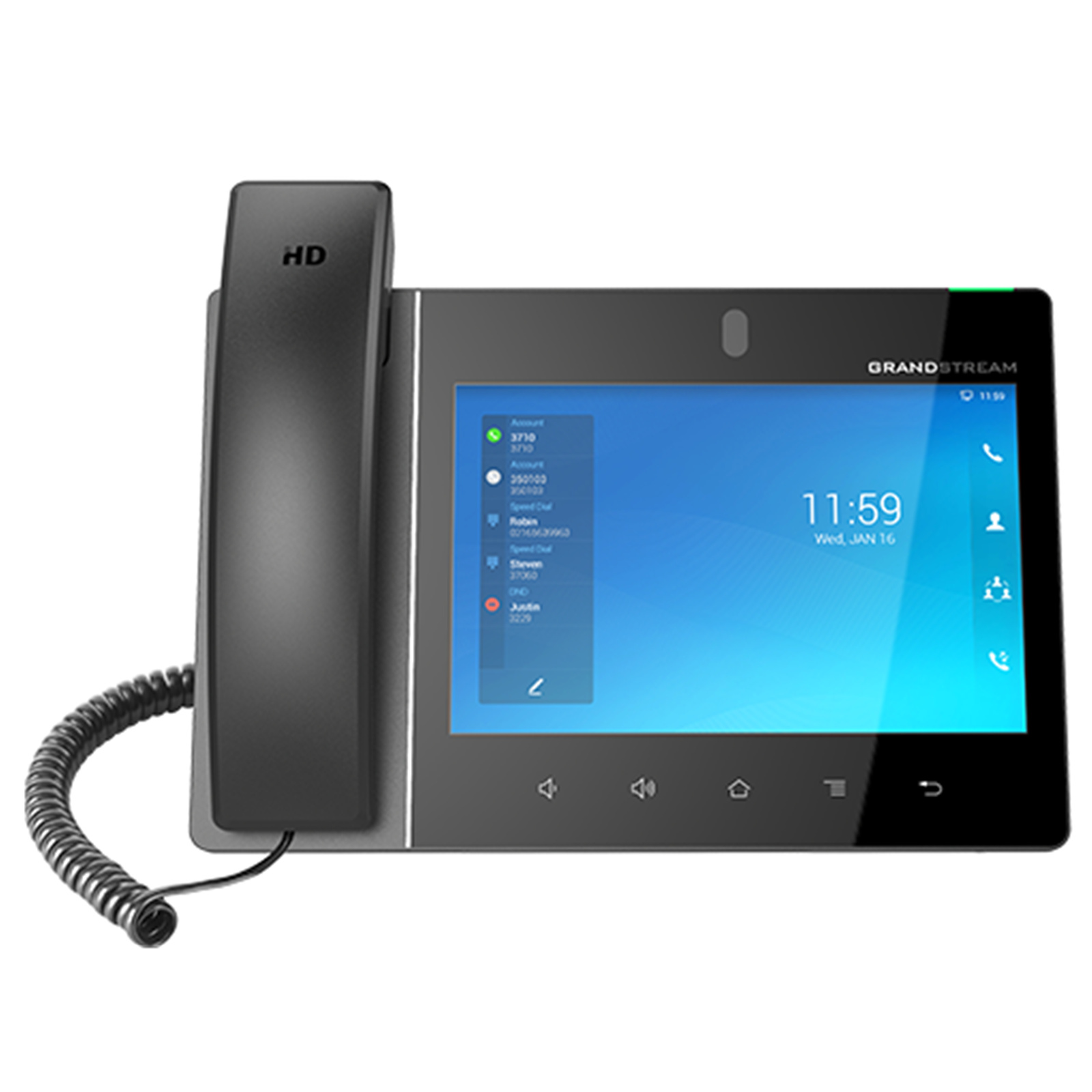

Grandstream GXV3480 8inch Smart Touchscreen Android Video Phone
Grandstream GXV3480 8inch Smart Touchscreen Android Video Phone
- Brand: Grandstream
- MPN: GXV3480
- Part #: IPHGSM1062
- UPC:
- Brand: Grandstream
- MPN: GXV3480
- Part #: IPHGSM1062
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular IP Phones





Grandstream GXV3480 8inch Smart Touchscreen Android Video Phone
- Brand: Grandstream
- MPN: GXV3480
- Part #: IPHGSM1062

Product URL: https://www.pbtech.co.nz/product/IPHGSM1062/Grandstream-GXV3480-8inch-Smart-Touchscreen-Androi
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
The Grandstream GXV3480 IP Video Phone for Android combines a 16-line IP video phone with a multi-platform video conferencing solution and the functionality of an Android tablet to offer an all-in-one communications solution. The phone features a 8" 1280x800 capacitive touch screen IPS LCD, 2 Mega pixel camera, dual microphone, dual Gigabit ports with PoE/PoE+, HD audio and HD video, integrated Wi-Fi 6 (802.11 a/b/g/n/ac/ax) & Bluetooth 5.0, rich peripheral interfaces. It also runs on Android 11 and offers instant access to hundreds of thousands of Android apps. By combining a state-of-the-art IP video phone, an advanced video conferencing solution, and the functionality of an Android tablet, the GXV3480 offers business throughout the world a powerful desktop communication and productivity solution.
- 16 Lines with up to 16 SIP accounts
- Built-in 2 megapixel camera for video calling with privacy shutter
- Runs on the Android 11 operating system
- Bluetooth 5.0 for syncing with mobile devices and connecting Bluetooth headsets
- Integrated dual-band Wi-Fi 6 (2.4GHz & 5GHz)
- Dual-mic HD speakerphone with advanced echo cancellation & excellent double-talk performance for any scenario
- 64-bit quad-core processor, 4GB RAM, and 16GB Flash
- 8" (1280 x 800) capacitive 10-point touch screen IPS LCD
- Peripherals include HDMI-in/out, USB Type-C, 3.5mm headset jack, EHS (Plantronics headsets)
- 12-way HD audio conferencing & 3-way 1080p 30fps HD video capability
Specifications
Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6, OpenVPN®
Network Interfaces
Dual switched 10/100/1000 Mbps ports with integrated PoE/PoE+
Graphic Display
8" 1280 x 800 capacitive touch screen (10 points) IPS LCD
Camera
Tiltable 2 megapixel CMOS camera with privacy shutter, 1080p 30fps
Bluetooth
Yes, integrated Bluetooth 5.0
Wi-Fi
Yes, dual-band (2.4GHz & 5GHz) with 802.11ac a/b/g/n/ac/ax 2T2R, Wi-Fi Display & Airplay
Auxiliary Ports
RJ9 headset jack (allowing EHS with Plantronics headsets), 3.5mm stereo headset with microphone, USB 3.0 Port (Type-C), HDMI-out, HDMI-in
Feature Keys
2 function touch keys VOLUME +/-, 3 dedicated Android touch keys HOME, MENU, and BACK
Voice Codecs and Capabilities
Wide-band Opus, wide-band G.722, G.711µ/a, G.729A/B, G.726-32, iLBC, in-band and out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS, Noise Shield 2.0
Video Codecs and Capabilities
H.264 BP/MP/HP, video resolution up to 1080p, frame rate up to 30 fps, bit rate up to 4Mbps, 3-way video conference (1080p @ 30fps), BFCP, people video(up to 1080p @ 30fps) + content video(up to 1080p @ 15fps), anti-flickering, and auto exposure
Telephony Features
Hold, transfer, forward (unconditional/no-answer/busy), call park/pickup, 12-way audio conference(including the host), shared-call-appearance (SCA) / bridged-line-appearance (BLA), virtual MPK, downloadable contacts (XML, LDAP, up to 2000 items), call record(local and server), call log (up to 2000 records), call waiting, auto answer, XML customization of screen, click-to-dial, flexible dial plan, hot desking, personalized music ringtones and music on hold, server redundancy & fail-over
Sample Applications
Local apps: Contacts, Call History, File Manager, Programmable Key, Settings, Browser, Clock, Voicemail, Calculator, Recorder, GS Market, etc. Support third-party Android apps, API/SDK available for advanced custom application development
Android
Runs Android 11
Applications Deployment
Supports Android 11 compliant applications to be developed, downloaded and run on the device with provisioning control
HD Audio
Yes, 2 omnidirectional microphones, HD handset and speakerphone with support for wideband audio

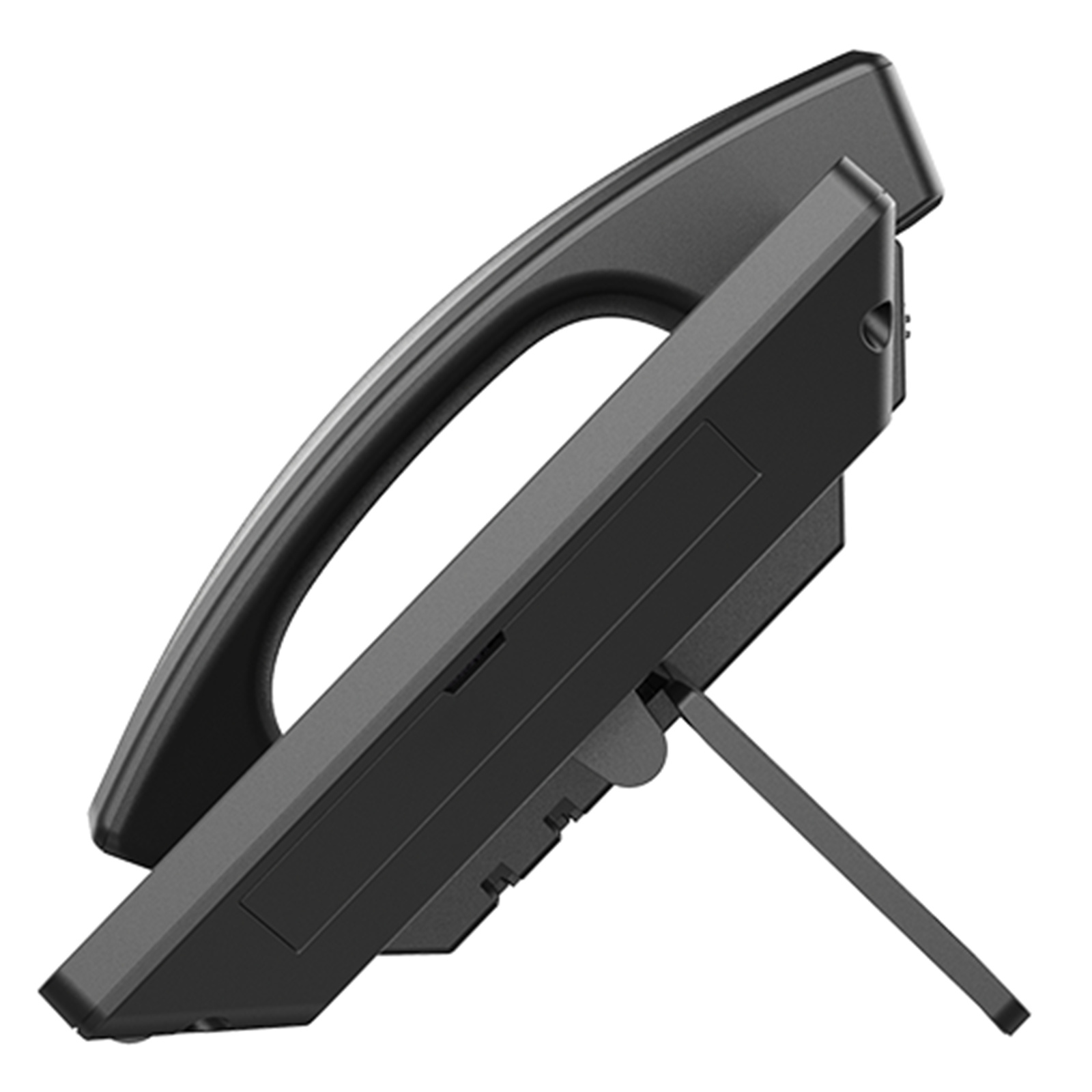

Base Stand
Integrated stand with multiple adjustable angles
QoS
Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS
Security
User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control, Kensington Security Slot (Kensington Lock) support
Upgrade/Provisioning
Firmware upgrade via TFTP / HTTP / HTTPS or local HTTP upload, mass provisioning using TR-069 or AES encrypted XML configuration file
Power & Green Energy Efficiency
Universal power adapter included: Input: 100-240VAC 50-60Hz; Output 12VDC 1.5A (18W), Integrated PoE* 802.3af Class 3, PoE+ 802.3at, Class 4 (USB enabled only when power supply or PoE+ is used)
Temperature and Humidity
Operation: 0°C to 40°C, Storage: -10°C to 60°C, Humidity: 10% to 90% Non-condensing
Package Content
GXV3380 phone, handset with cord, base stand, universal power supply, network cable, screen cleaning cloth, quick installation guide, brochure, GPL license
