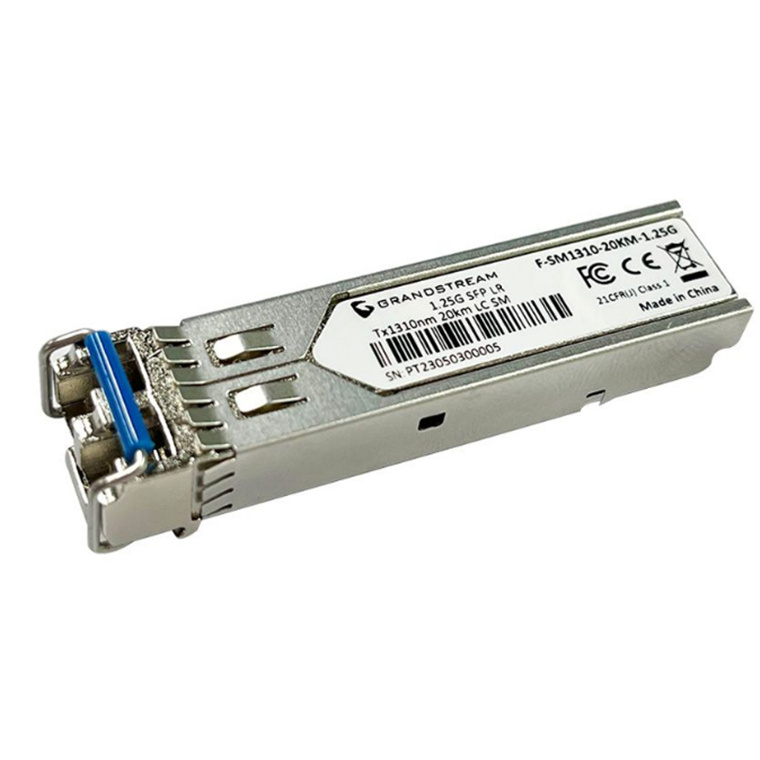

Grandstream FSM131020KM1.25G SFP Fiber Module SM 1310nm 20km 1.25Gbps
Grandstream FSM131020KM1.25G SFP Fiber Module SM 1310nm 20km 1.25Gbps
- Brand: Grandstream
- MPN: FSM131020KM1.25G
- Part #: IPHGSM1076
- UPC:
- Brand: Grandstream
- MPN: FSM131020KM1.25G
- Part #: IPHGSM1076
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Other Networking





Grandstream FSM131020KM1.25G SFP Fiber Module SM 1310nm 20km 1.25Gbps
- Brand: Grandstream
- MPN: FSM131020KM1.25G
- Part #: IPHGSM1076

Product URL: https://www.pbtech.co.nz/product/IPHGSM1076/Grandstream-FSM131020KM125G-SFP-Fiber-Module-SM-13
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
Grandstream Network offers a wide variety of fiber modules. All of them are hot-pluggable small-form factor transceiver modules integrated with the high sensitivity PIN receiver and signal conditioner for 1.25/10 Gigabit Ethernet applications. SFP modules support very low EMI and excellent ESD protection. Featuring low power consumption, these fiber modules are ideal for enterprise LAN networks and other optical links.
Specifications
Brand
Grandstream
Fiber Mode
Single-Mode Fiber
Connector Type
Duplex LC
DDM
Yes, I²C for integrated Digital Diagnostic Monitoring
Nominal Wavelength
1310nm
Data Rate
1.25Gbps SFP
Max Power Consumption
1W
Transfer Distance
20km
TX Power
-9 to -3dBm, ±3dB
RX Power
-18 to -1dBm, ±3dB
Operation Voltage
3.3V±0.3V
Environmental
Operation: 0°Cto 70°C
Storage: -40°C to 85°C
Humidity: 5% to 85%
Weight
17.10g
Standards
SFF-8472, SFP MSA, IEEE 802.3z, RoHS-6
Compliance
FCC, CE, FDA
