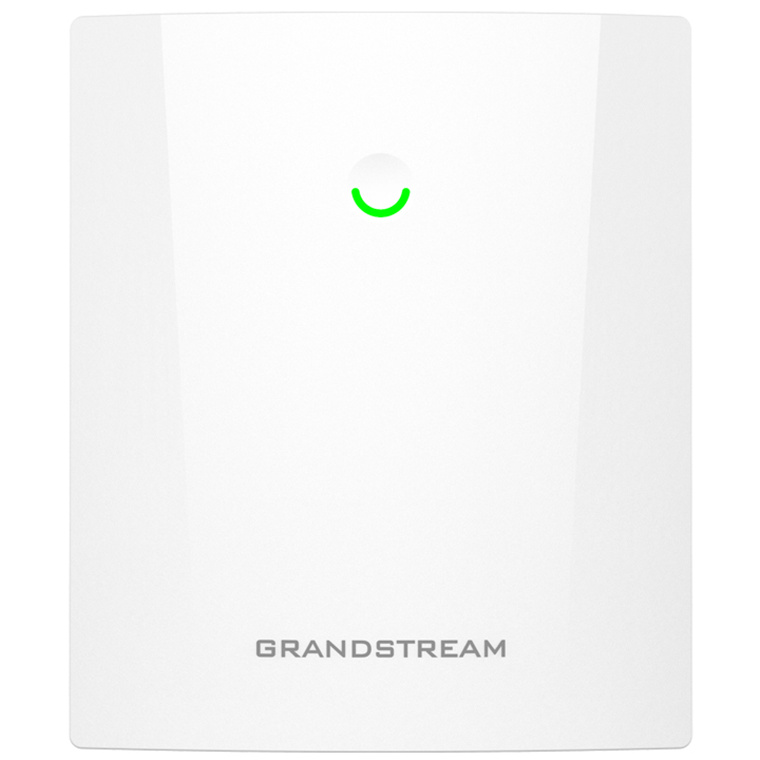

Grandstream GWN7660ELR (AX3000) Dual-Band 4-Stream Outdoor Wi-Fi 6 Access Point with 1GbE x1 (PoE 13W)

PB Tech price
PB Tech price
$ 168 .53
 +GST
$ 193 .81
 inc GST
$168.53  +GST
$193.81

Grandstream GWN7660ELR (AX3000) Dual-Band 4-Stream Outdoor Wi-Fi 6 Access Point with 1GbE x1 (PoE 13W)

PB Tech price
$ 168 .53 $ 193 .81
 +GST  inc GST
Hurry, only 4 units left!


Click & Collect: Available from 2 stores.
Select your store to check availability
Delivery: Order now and it ships today When will I receive it?
Uber Delivery: Order now and get it within 3 hours. Some areas, max $1k order. How does it work?
$168.53  +GST
$193.81

Ethernet Ports

2

USB Ports

None

WiFi Bands

Dual

Wireless Technology

WiFi 6 (802.11ax)

Wireless Transmission Speed

Not Specified

Pack Size

1-Pack

Features

The GWN7660ELR is an enterprise-grade, long-range Wi-Fi 6 access point designed to help businesses build next-generation Wi-Fi networks for high-density environments. It features a weatherproof casing, heat-resistant technology, dual-band 2×2:2 MU-MIMO with XTRA Range technology, and a sophisticated antenna design that enables support for up to 256 clients and an extended coverage range of 300 meters. With IP67-rated weatherproofing and dust-proof protection, plus an operating temperature range from -30°C to 60°C, the GWN7660ELR is built to perform reliably even in harsh outdoor conditions.

For ease of deployment and management, the GWN7660ELR includes a built-in controller accessible through the product's web user interface. It is also fully compatible with GWN.Cloud and GWN Manager, Grandstream's free cloud-based and on-premise Wi-Fi management platforms. This makes installation and ongoing network management seamless for IT teams and system integrators.

The GWN7660ELR is an excellent choice for voice-over-Wi-Fi deployments, offering seamless integration with Grandstream's Wi-Fi voice and video IP phones. It also supports advanced features like QoS, mesh networking, captive portals, Bluetooth® Low Energy (BLE) 5.2, a Gigabit Ethernet port with PoE/PoE+, and a 2.5 Gigabit SFP port with PoE/PoE+. This makes it a perfect outdoor access point for enterprises, multi-floor offices, warehouses, hospitals, schools, and more.

- 3 Gbps aggregate wireless throughput, 1 Gbps RJ45, and 2.5 Gbps SFP wireline ports
- Dual-band 2x2:2 MIMO with OFDMA technology
- Self-power adaptation upon auto-detection of PoE or PoE+
- Support 256 concurrent Wi-Fi client devices
- Up to 300-meter coverage range
- Advanced QoS to ensure real-time performance of low-latency applications
- Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
- Flexibility of 5 internal antennas
- Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management

Specifications

Brand

Grandstream

Manufacturer Part Number

GWN7660ELR

Wi-Fi Standards

IEEE 802.11 b/g/n/ac/ax

Antennas

5 individual internal antennas
2.4GHz x 2 , gain 5.5 dBi
5 GHz x 2, gain 6.0 dBi
BT gain 4.5 dBi

Wi-Fi Data Rates

5G:
IEEE 802.11ax: 7.3 Mbps to 2403 Mbps
IEEE 802.11ac: 6.5 Mbps to 1734 Mbps
IEEE 802.11n: 6.5 Mbps to 300 Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
2.4G:
IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps
IEEE 802.11n: 6.5 Mbps to 300 Mbps
IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
*Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network

Frequency Bands

2.4GHz radio: 2412 - 2484 MHz
5GHz radio: 5180 - 5825 MHz
*Not all frequency bands can be used in all regions.

Channel Bandwidth

2.4G: 20 and 40 MHz
5G: 20, 40, 80 and 160 MHz

System Security

WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/
control lockdown via digital signatures, unique security certificate and random default password per device

MU-MIMO

2×2:2 2.4GHz, 2×2:2 5GHz

Coverage Range

Up to 300 meters
*Coverage range can vary based on environment

Maximum TX Power

5G: 26dBm
2.4G: 27dBm
*Maximum power varies by country, frequency band, and MCS rate

Receiver Sensitivity

2.4G
802.11b: -96dBm @ 1Mbps, -88dBm @ 11Mbps
802.11g: -93dBm @ 6Mbps, -75dBm @ 54Mbps
802.11n 20MHz: -73dBm @ MCS7; 802.11n 40MHz:-70dBm @ MCS7
802.11ax 20MHz: -60dBm @ MCS11; 802.11ax 40MHz: -58dBm @ MCS11
5G
802.11a: -90dBm @ 6Mbps, -72dBm @ 54Mbps
802.11n: 20MHz: -71dBm @ MCS7; 802.11n 40MHz: -68dBm @ MCS7
802.11ac 20MHz: -65dBm @ MCS8; 802.11ac: 40MHz: -61dBm @ MCS9; 802.11ac 80MHz: -57dBm @ MCS9; 802.11ac 160MHz: -55dBm @ MCS9
802.11ax 20MHz: -58dBm @ MCS11; 802.11ax 40MHz: -56dBm @ MCS11; 802.11ax 80MHz: -54dBm @ MCS11
802.11ax 160MHz: -51dBm @ MCS11

SSIDs

32 SSIDs total, 16 per radio (2.4GHz & 5GHz)

Concurrent Clients

256

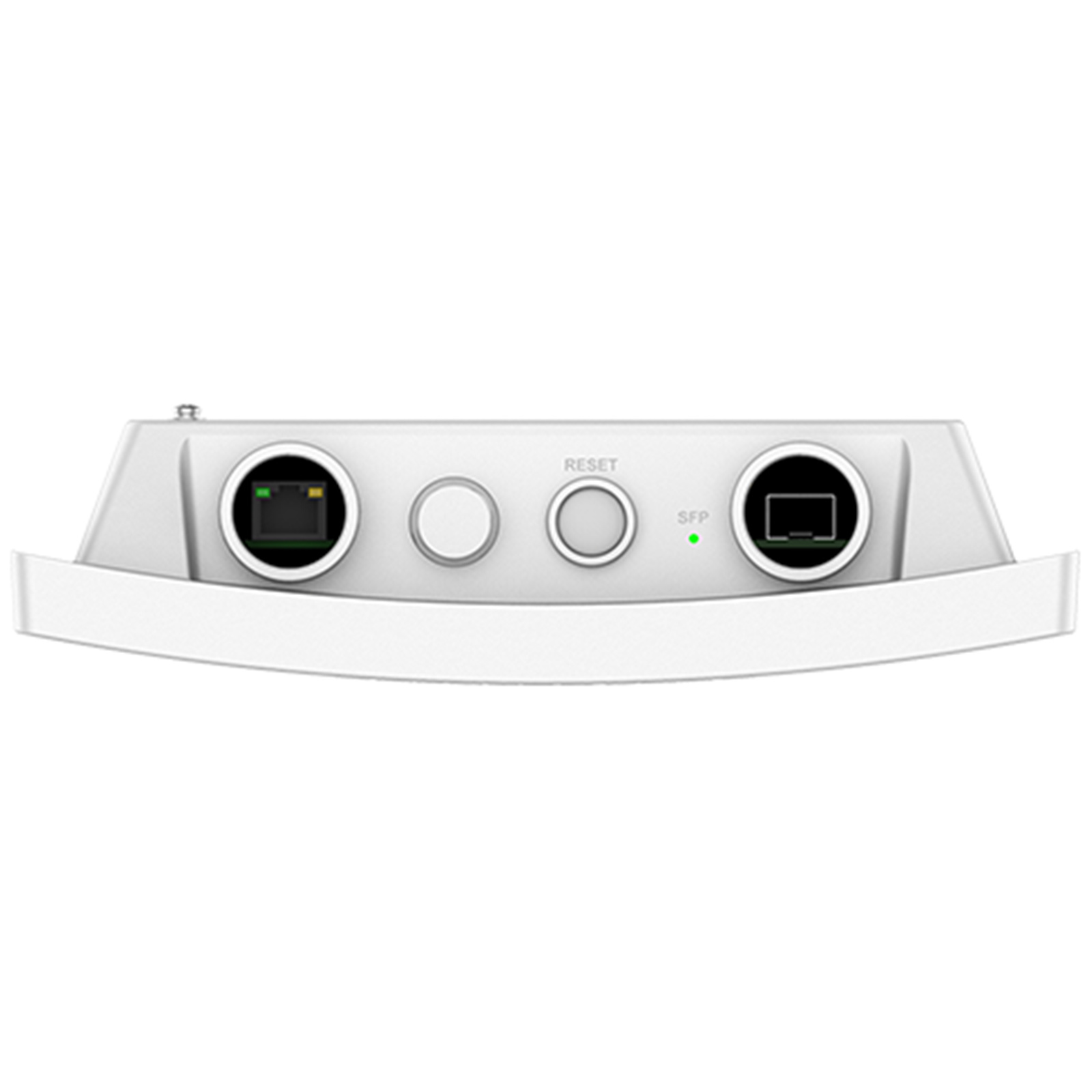

Network Interfaces

1x 1G Port and 1x 2.5G SFP Port

Bluetooth®

BLE 5.2

Auxiliary Ports

1x Reset Pinhole, 1x Kensington lock

Mounting

Wall mount or pole mount, kits included

LEDs

1 tri-color LED for device tracking and status indication; 1 single-color LED for SFP

Network Protocols

IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

QoS

802.11e/WMM, VLAN, TOS

Network Management

Embedded controller can manage up to 50 local GWN APs
GWN.Cloud offers a free cloud management platform for unlimited GWN APs
GWN Manager offers premise-based software controller for up to 3,000 GWN APs

Power and Green Energy Efficiency

PoE 802.3af/ 802.3at;
Maximum Power Consumption: 13W

Environmental

Operation:-30°C to 60°C
Storage: -30°C to 70°C
Humidity: 5% to 95% Non-condensing

Dimensions

270mm x 230mm x 57mm

Weight

1kg (including brackets)

Manufacturer Part No:
GWN7660ELR
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
2.32 kg
PB Part No:
IPHGSM1082
Product Model:
GWN7660ELR
Warranty: 12 months *
