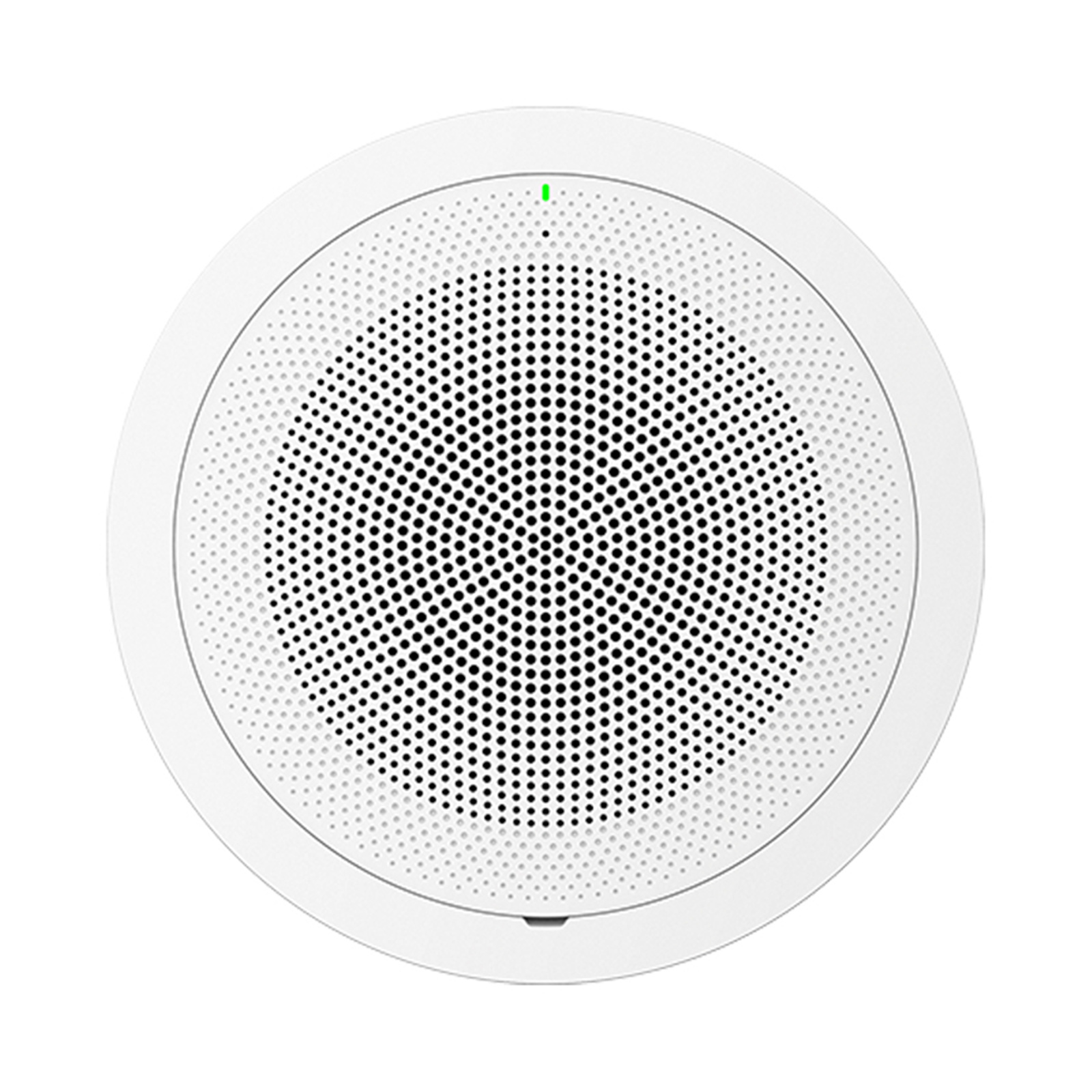

Grandstream GSC3506 SIP Intercom Speaker/Microphone 1-Way Hardware
Grandstream GSC3506 SIP Intercom Speaker/Microphone 1-Way Hardware
- Brand: Grandstream
- MPN: GSC3506
- Part #: IPHGSM397833
- UPC:
- Brand: Grandstream
- MPN: GSC3506
- Part #: IPHGSM397833
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Speakerphones





Grandstream GSC3506 SIP Intercom Speaker/Microphone 1-Way Hardware
- Brand: Grandstream
- MPN: GSC3506
- Part #: IPHGSM397833

Product URL: https://www.pbtech.co.nz/product/IPHGSM397833/Grandstream-GSC3506-SIP-Intercom-SpeakerMicrophone
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
Grandstream GSC3506 One way SIP Intercom Speaker/ No Mic 30 Watt Speaker
The Grandstream GSC3506 is a 1-way public address SIP speaker that allows offices, schools, hospitals, apartments and more to build powerful public address announcement solutions that expand security and communication. This robust SIP speaker offers crystal clear HD audio functionality with a high-fidelity 30-Watt HD speaker. The GSC3506 support built-in whitelists ,blacklists and greylists to easily block unwanted calls, SIP and multicast paging, group paging and PTT. users can easily sculpt a state-of-the-art security and PA announcement solution. Thanks to its modern industrial design and rich features, the GSC3506 is the ideal SIP speaker for any setting.
- Speaker with HD acoustic chamber
- Features SIP paging, multicast paging, call-waiting with priority override
- Full-band and wide-band audio codec support including Opus & G.722
- 1x 2-pin switch-in input port, 1x Alarm-in input port, vol+/- Key, reset, 1x network port, 1x USB port
- One 10/100Mbps network port with PoE/PoE+
Specifications
Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, RTCP-XR,HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, LLDP-MED, SIMPLE, LDAP,TR-069, 802.1x, TLS, SRTP, IPv6, OpenVPN®
Network Interfaces
One 10/100 Mbps port with integrated PoE/PoE+
Auxiliary Port
One 2-pin switch-in input port, one Alarm-in input port, vol+/- Key, reset, one network port
USB Port
USB2.0, External USB Storage
Voice Codecs and Capabilities
G.711µ/a, G.722 (wide-band), G.726-32, iLBC, Opus, G.723, G.729A/B, in-band and out-ofband DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, PLC, AJB, AGC, ANS
Telephone Features
SIP Paging, Multicast Paging,Group Paging, PTT, call-waiting with priority override
HD Audio
Yes, HD speaker with support for full-band audio
Speaker
30W high-fidelity HD speaker(coaxial); Frequency: 110Hz-20000 Hz; Sensitivity: Up to 95 dBA at 1W power at 1 meter
QoS
Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS
Security
User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control, secure boot
Multi-language
English, German, French, Spanish, Portuguese, Russian & Chinese
Upgrade/Provisioning
Firmware upgrade via TFTP / HTTP / HTTPS or local HTTP upload, mass provisioning using GDMS/TR069 or AES encrypted XML configuration file
Power & Green Energy Efficiency
Integrated PoE* 802.3af Class 3, PoE+ 802.3at Class 4
Temperature and Humidity
Operation: 0°C to 45°C Storage: -10°C to 60°C,; Humidity: 10% to 90% Non-condensing
Package Content
GSC3506, Mounting hole cut-Out template, Ceiling mount kit(optional), Quick installation guide
Physical
Unit Dimensions: 257.5mm (diameter) x 118mm (depth); Unit Weight:2.09kg , Box Weight: 2.76kg
