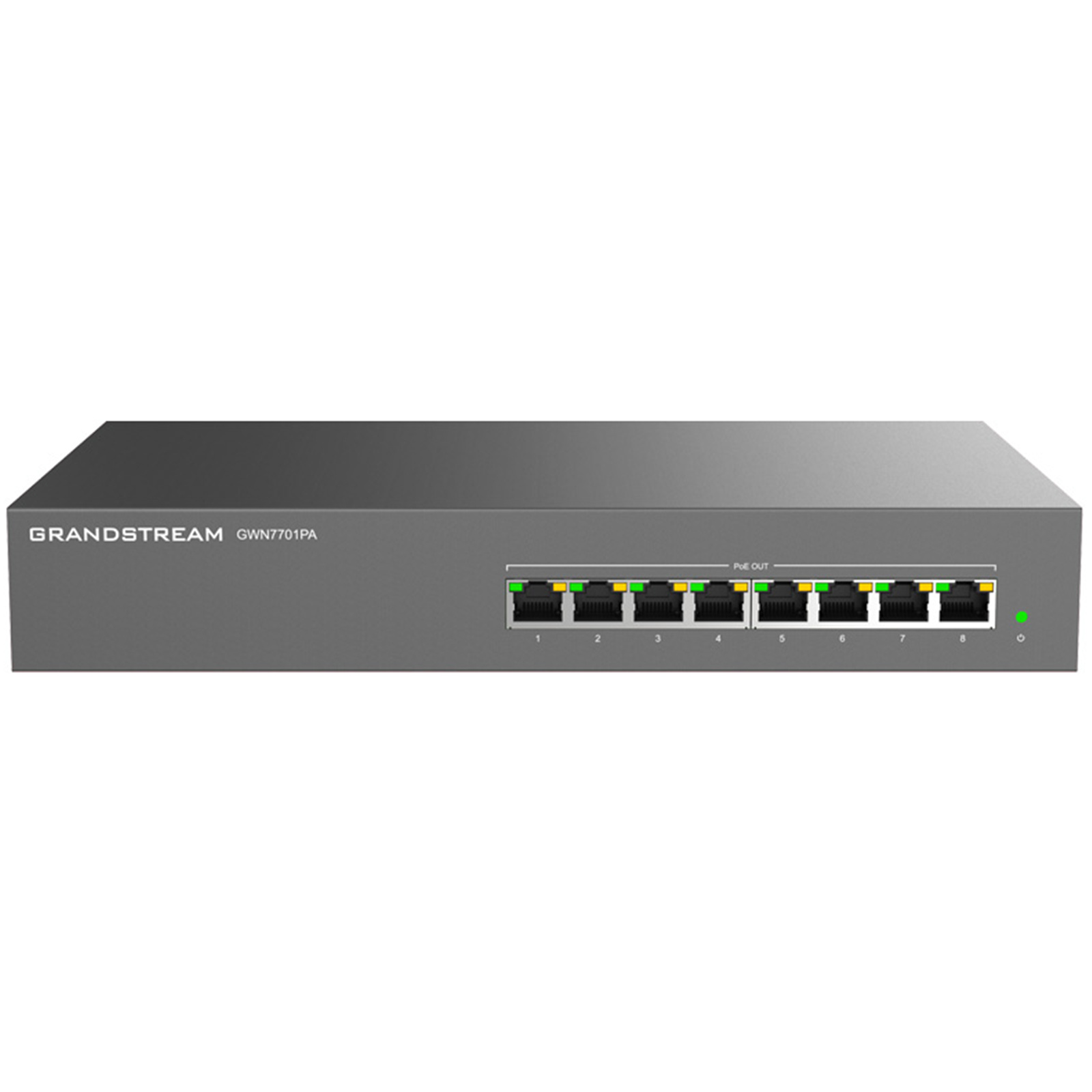

Grandstream GWN7701PA 8-Port Gigabit Unmanaged PoE Switch (145W) - 1GbE PoE+ x8
Out of stock
Grandstream GWN7701PA 8-Port Gigabit Unmanaged PoE Switch (145W) - 1GbE PoE+ x8
- Brand: Grandstream
- MPN: GWN7701PA
- Part #: IPHGSM402558
- UPC:
- Brand: Grandstream
- MPN: GWN7701PA
- Part #: IPHGSM402558
- UPC:
Product is out of stock. View similar products in-stock at PB Tech
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Switches





Grandstream GWN7701PA 8-Port Gigabit Unmanaged PoE Switch (145W) - 1GbE PoE+ x8
- Brand: Grandstream
- MPN: GWN7701PA
- Part #: IPHGSM402558

Product URL: https://www.pbtech.co.nz/product/IPHGSM402558/Grandstream-GWN7701PA-Unmanaged-8-port-8x-PoE-Giga
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
Grandstream GWN7701PA Unmanaged 8-port 8x PoE Gigabit Ethernet PoE Switch
- 8 Gigabit RJ45 ports, 8 port PoE+ output (GWN7701PA)
- Green technology reduces power consumption
- LED Indicators; Per port: Link/Activity/Speed Per device: Power
- Auto MDI/MDIX crossover for all ports
- 802.3 af/at compliant Up to 30W on each port
- Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
- Unlink clear FDB Feature
- QoS - Supports Default Strict Priority when present
Unmanaged Network Switches
The GWN7700 series are unmanaged network switches that provide a quick and cost- effective way to add highspeed Gigabit connectivity to home offices and small-to-medium sized businesses.
The Ideal Model for Every Need
Nine model options allow users to choose from 5, 8, 16, 24, or 48 Gigabit ports and 4 or 8 port PoE+ output (on PoE capable models).
Plug and Play
These unmanaged switches do not require any configuration or installation, allowing deployments to be up and running immediately.
Specifications
Gigabit Ports
8
PoE Port
8
Enclosure
Metal
Mounting
Desktop/Rack-Mount
Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Port Feature
(8) 10/100/1000Mbps RJ45 Ports, AUTO Negotiation, AUTO MDI/MDIX
Port Feature
1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex
PoE Configuration
Ports 1-8 802.3af/at compliant, 30W per port, total power budget 145W
LED Indicators
Per port: Link/Activity Green; PoE output - Yellow
Per device: Power Green
MAC Address Table
8K
Switching Capacity
16Gbps
Jumbo Frame
9KB
Advanced Features
Mac Address Auto-Learning And Auto-Aging IEEE 802.3x Flow Control, 802.1p/DSCP QoS, Unlink clear FDB Feature, IGMP
Power Adapter
Internal 100-240VAC, 50-60Hz, 150W
Max Power Consumption by Base System
6.7W @220V/50Hz (excluding PoE output power)
Environmental
Operating Temperature: 0 to 40 °C (32 to 104 °F), Operating Humidity: 10% to 90% Non-condensing
Dimensions (L x W x H)
Unit: 280 x 180 x 44mm
Weight
Unit: 1.5KG
Compliance
FCC, CE, RCM, IC, UKCA
