Grandstream GWN7001 Multi-WAN Gigabit VPN Router
The GWN7001, GWN7002, and GWN7003 are multi-WAN Gigabit VPN routers with built-in firewalls that allow businesses to build comprehensive wired, wireless, and VPN networks for one or multiple locations. They offer high-performance routing and switching capabilities, along with built-in VPN support for secure in-office and inter-office connectivity. To provide enterprise-grade security protection and ensure stable network operation, the GWN7000 series features a built-in firewall with advanced content security, filtering, threat detection, attack prevention, and more.
To maximize network reliability, the routers support traffic load balancing, failover, and bandwidth management. The GWN7001 includes 6 Gigabit Ethernet ports, while the GWN7002 and GWN7003 include 2 × 2.5 Gigabit SFP ports, 4 or 9 Gigabit Ethernet ports, and 2 PoE output ports, allowing them to power other endpoints. These routers can manage themselves and up to 150 Grandstream GWN Series Wi-Fi access points through an embedded controller located in the product's web user interface. They can also be managed via GWN.Cloud and GWN Manager, Grandstream's free cloud and on-premise network management platforms.
Additionally, the GWN routers support triple-play services, enabling Internet, IPTV, and VoIP traffic to be assigned to different VLANs with prioritized handling. By combining high-performance routing, robust VPN support, advanced security features, and easy-to-use management tools, the GWN7000 series is ideal for a wide variety of deployments, including small-to-medium businesses, retail, education, hospitality, healthcare, and more.
- 1x GbE RJ45 port with IEEE 802.3af/at PoE Input and 2x GbE RJ45 ports with 48V Passive PoE output or IEEE802.3af (GWN7002/GWN7003)
- Supports multiple Gigabit RJ45 ports and Gigabit SFP ports
- Built-in VPN support allows easy access to corporate networks for remote employees
- Multiple WAN ports with load balancing and failover to maximize connection reliability
- Rich firewall features including DDNS, port forwarding, DMZ, UPnP, Anti-Dos, traffic rules, NAT and ALG
- Supports application/protocol monitoring and traffic statistics with Deep Packet Inspection (DPI)
- Advanced QoS to ensure real-time performance of low-latency applications
- Supports application, URL,DNS, and web content filtering to block access from unsecure contents
- Embedded controller can manage itself and up to 150 GWN APs; GDMS Networking offers a free cloud management platform for unlimited routers and GWN APs
Multi-WAN Wired Routers
These Multi-WAN Gigabit VPN routers with built-in firewalls allow businesses to build comprehensive wired, wireless and VPN networks for one or many locations.

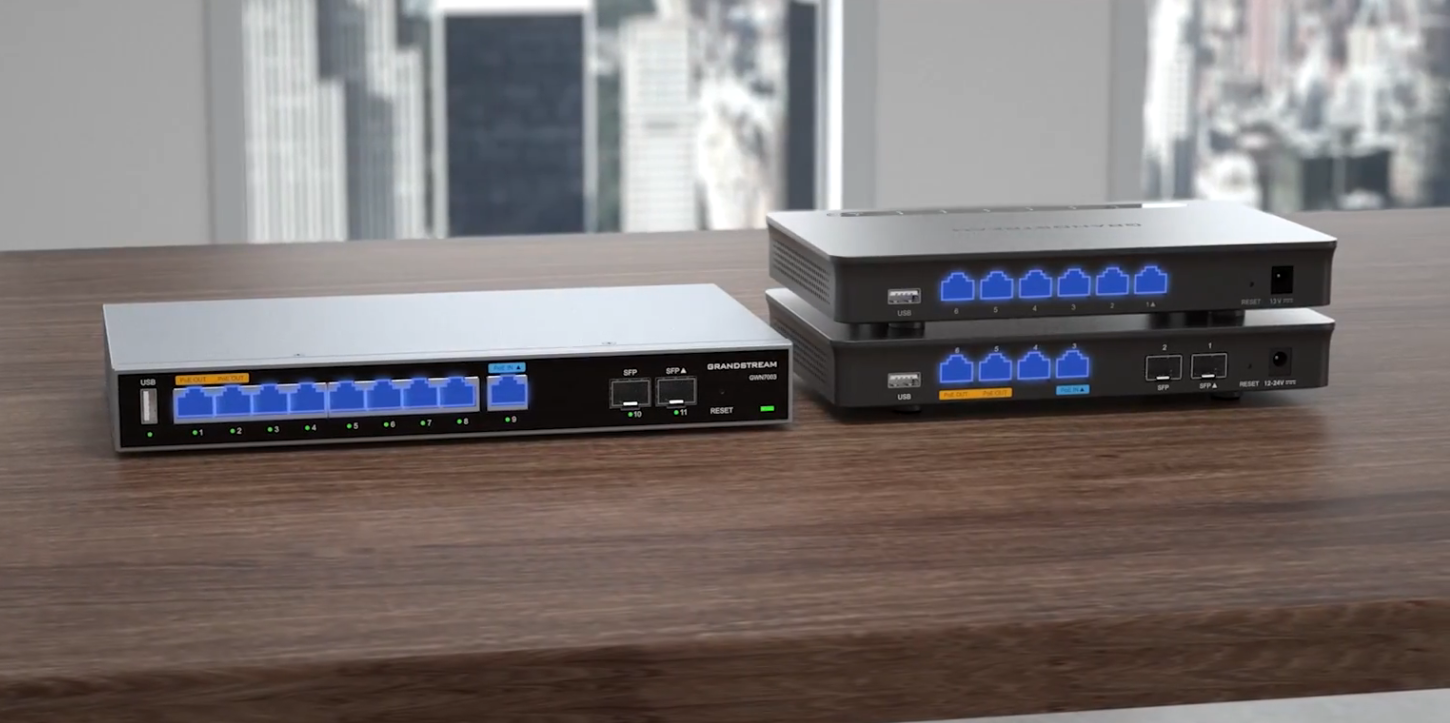

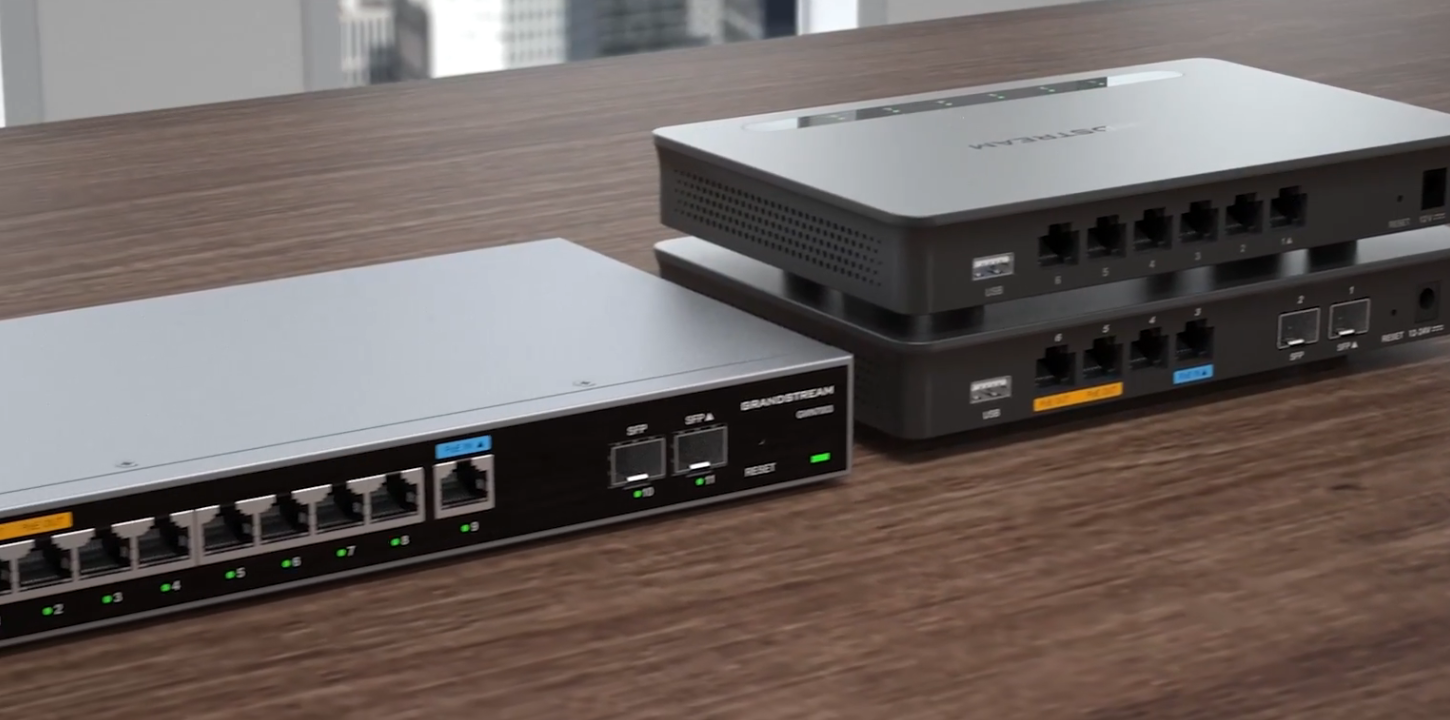

3 Model Options
Models provide 4, 6, or 9 Gigabit Ethernet ports, all WAN/LAN configurable, and 2 SFP ports (available GWN7002 and GWN7003) to support blazing-fast speeds up to 2.2Gbps.
High-Performance Routing
The GWN7000 Series provides up to 2.2Gbps, a built-in firewall, VPN support, powerful security protection, and easy-to-use network management tools.

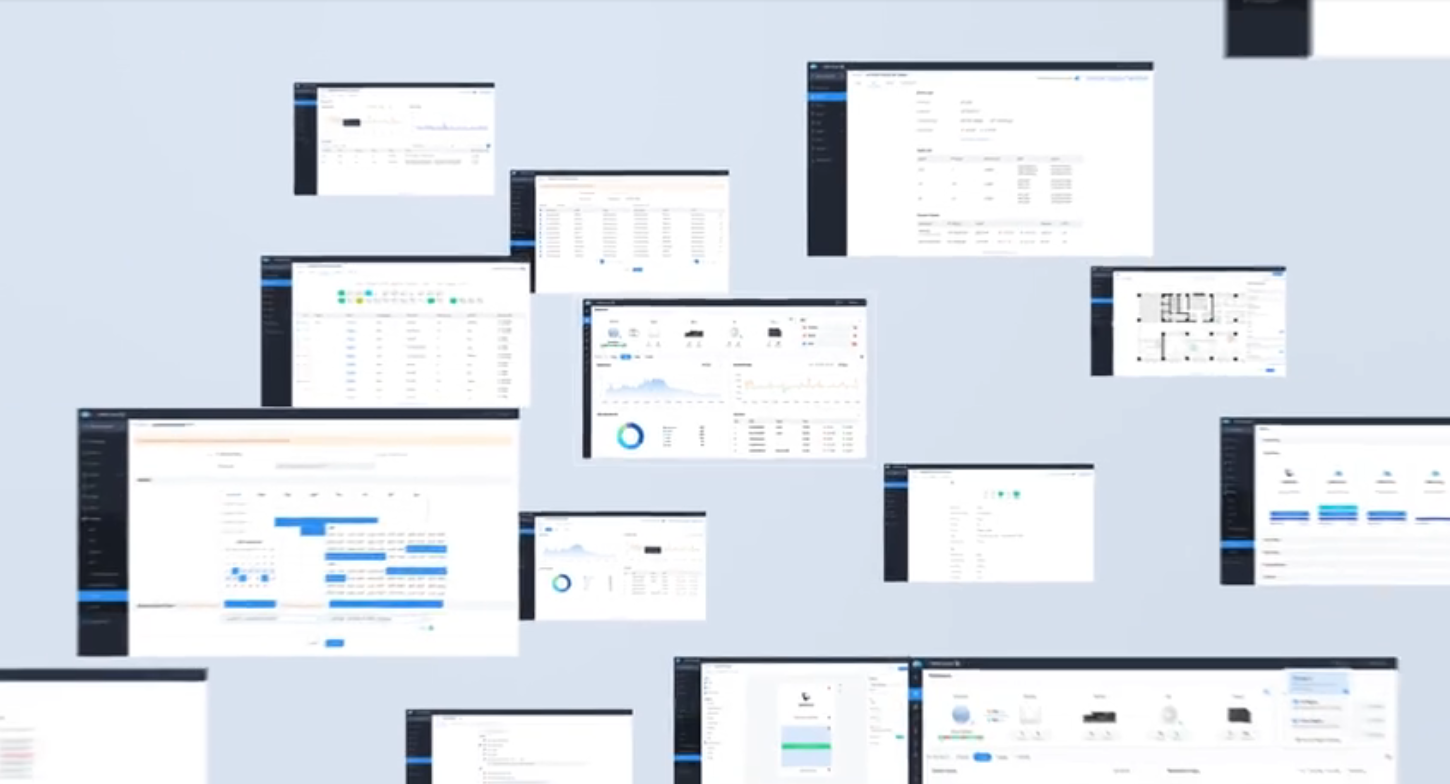

Free, Centralized Cloud Management
Deploy and manage the GWN7000 Series, and all Grandstream solutions, centrally from the cloud using the free Grandstream Device Management System (GDMS).
Build Powerful Business Networks
The GWN7000 Series is ideal for high-performance business networks as it includes a built-in QoS to provide network control and seamless performance of low-latency applications.
Specifications
Product Type
VPN Router
Brand
Grandstream
Manufacturer Part Number
GWN7001
Memory and NAT Sessions
256MB RAM, 256MB Flash, 30K NAT sessions
NAT Routing & IPSec VPN Performance
2.2Gbps NAT routing and 530Mbps IPSec VPN performance
Wi-Fi Standards
N/A
Network Interfaces

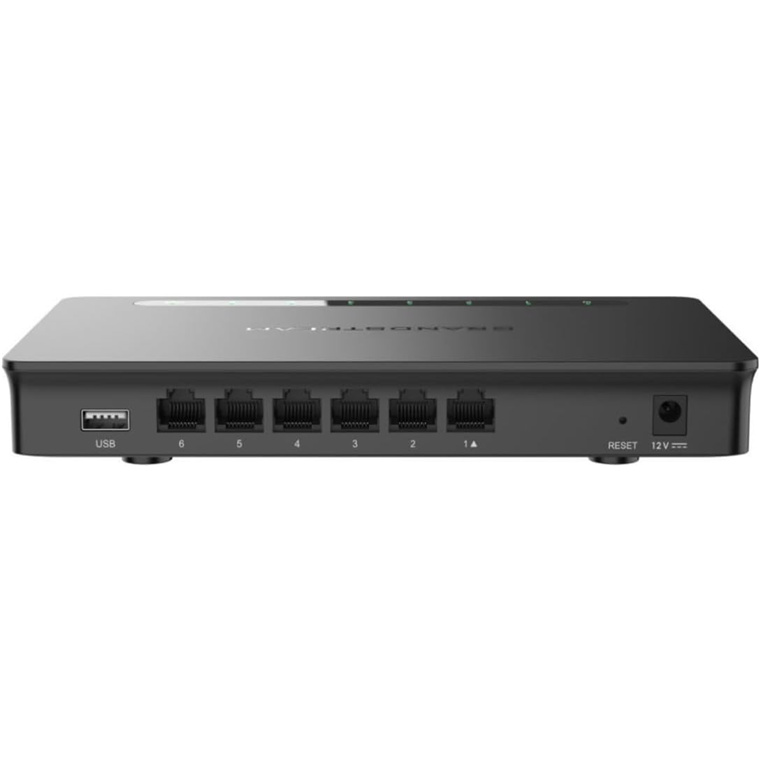

6x WAN/LAN Gigabit Ethernet ports (All ports are WAN/LAN configurable)
Network Protocols
IPv4, IPv6, IEEE802.1Q,IEEE 802.1p, IEEE802.1x, IEEE802.3, IEEE 802.3u, IEEE 802.3x,IEEE802.3ab
PoE Output
N/A
QoS
VLAN, TOS, Support multiple traffic classes, filter by port, IP address, DSCP, and policing, App Qos, VoIP Prioritization
Firewall
DDNS, Port Forwarding, DMZ, UPnP, Anti-DoS, traffic rules, NAT, ALG, TURN Service
VPN
SSL VPN Server / Client-to-Site
IPsec VPN Client-to-Site / Site-to-Site
PPTP VPN Server / Client-to-Site
L2TP Client-to-Site
WireGuard (pending)
IPSec Encryption: DES, 3DES, AES
IPSec Authentication: MD5, SHA-1, SHA2-256
IPSec Key Exchange: Main/Aggressive Mode, Pre-shared Key, DH Groups 1/2/5/14
IPSec Protocols: ESP
IPSec NAT Traversal
SSL VPN Encryption: AES, DES
SSL Authentication: MD5, SHA-1, SHA2-256, SHA2-384, SHA2-512
SSL VPN Certificate: RSA
PPTP Encryption: MPPE 40-bit, 128-bit, IPSec
PPTP/L2TP Authentication: MS-CHAPv1/2
Dimensions
210mm(L)x130mm(W)x35mm(H)
Weight
453g
