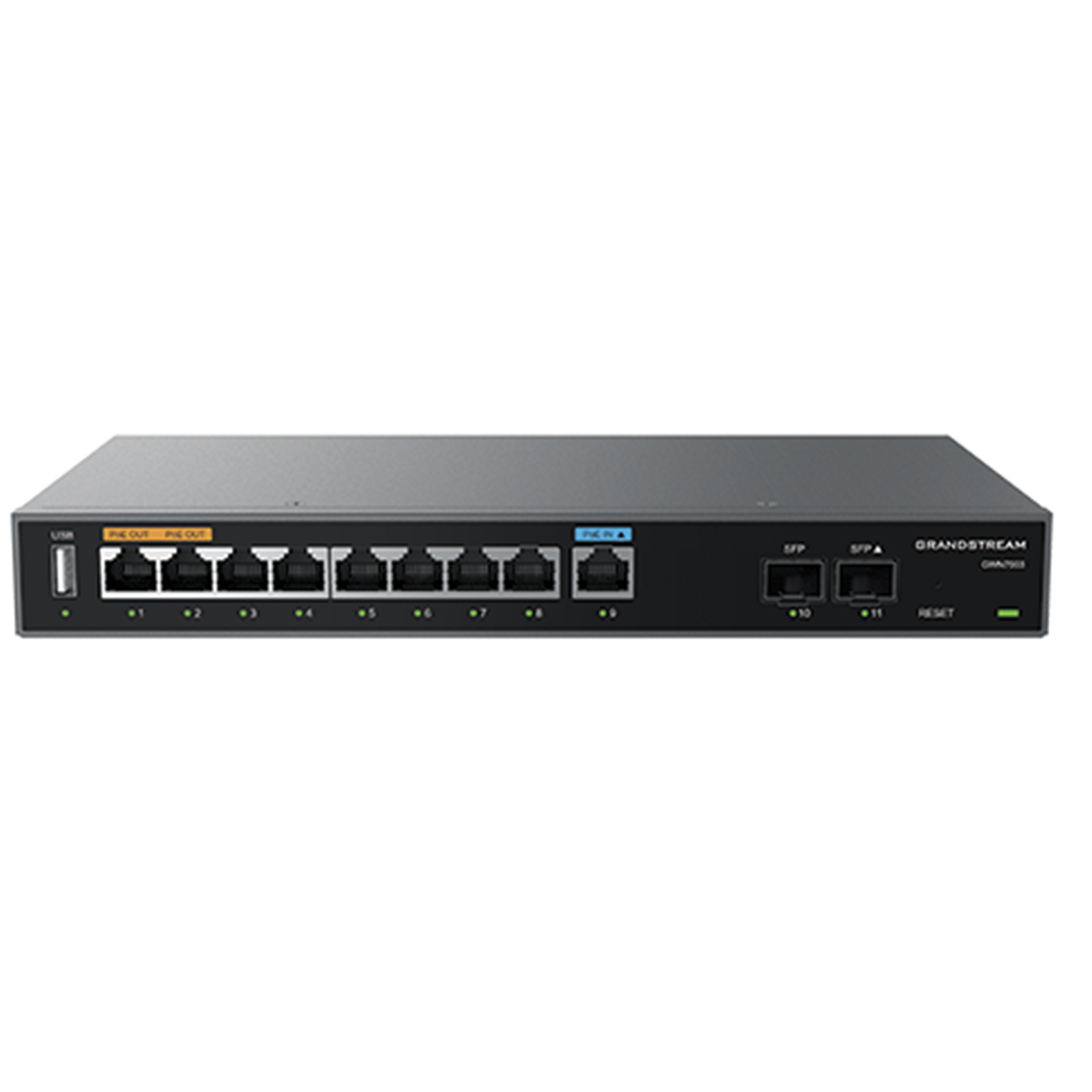

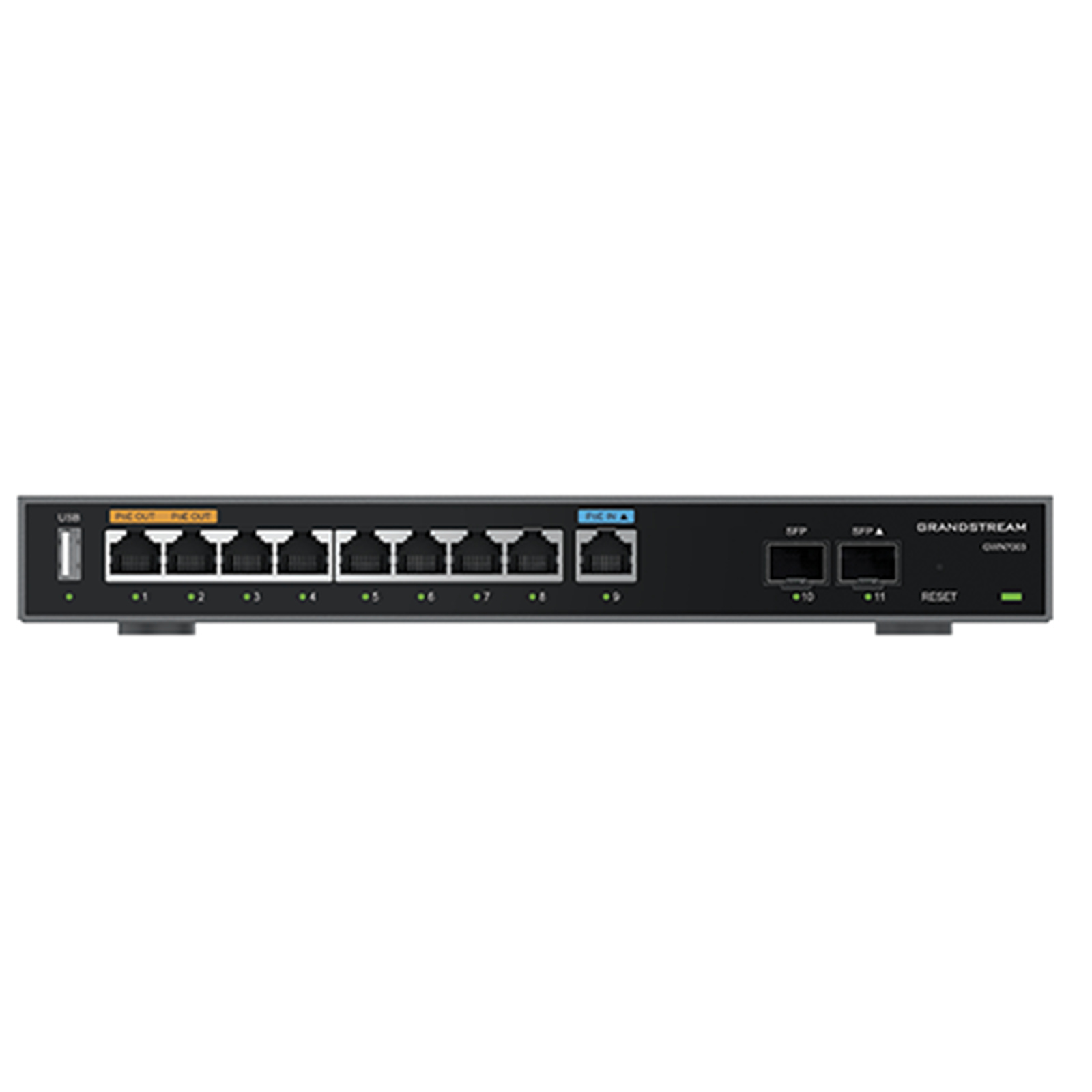

Grandstream GWN7003 Multi-WAN Gigabit VPN Router 2.5G SFP x2 / 1GbE x7 / 1GbE PoE x2
Grandstream GWN7003 Multi-WAN Gigabit VPN Router 2.5G SFP x2 / 1GbE x7 / 1GbE PoE x2
- Brand: Grandstream
- MPN: GWN7003
- Part #: IPHGSM403300
- UPC:
- Brand: Grandstream
- MPN: GWN7003
- Part #: IPHGSM403300
- UPC:
What PB Tech customers are saying about this product...
See More Reviews"Needed a Site to Site VPN so ordered two. Initial impression was this is not going to cut it, the IPSEC tunnel setup is a mess and does not work. Tried and thought will send back t ...view more"
"I have two AP Grandstream, so this Wired Router is fairly new and has two PoE port, ideal to get rid of my two injectors and get rid of the switch with 8 port as well, I bought thi ...view more"
Features
Specifications
Reviews
Do you own this product?
Lots of trouble
I hand to factory reset the router multiple times as it would run for a period of time and then have "no internet" - It got to the stage where I could not ping the router either on the default IP after a factory reset . For the periods of time it ran, it seemed to work well. But then it became a constant job of trying to keep it running - not what I wanted in a router - product returned to PB Tech for refund. I am now running on a Grandstream GWN7062 to keep the my network working with reduced WiFi coverage in areas of the house. I would like to try the GWN7001 next time and reposition my GWN7062 back to its orginal locationto get my WiFi...view more
I am so use to Cisco gear thought of trying these for a smaller client
Needed a Site to Site VPN so ordered two. Initial impression was this is not going to cut it, the IPSEC tunnel setup is a mess and does not work. Tried and thought will send back to PBTech, Last ditch effort I looked for a firmware upgrade, (the devices were only just delivered). 1.0.5.3 Firmware installed, downloaded 1.0.11.6 and installed it. Completely different software on the device. The IPSec tunnel works. Seems these devices were new to the market and many updates have been applied since stock arrived in NZ.
I am only commenting on the IPSEC side of this device, the site to site ipsec tunnel does work.
Awesome product
I have two AP Grandstream, so this Wired Router is fairly new and has two PoE port, ideal to get rid of my two injectors and get rid of the switch with 8 port as well, I bought this product after my Edgerouter died and to tidy up, set up is a breeze and friendly GUI , It is well priced and easy to get from PBtech but not available on the shelve, needs to be order but it is ok, it arrived in few days , highly recommended
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular VPN Routers
Ubiquiti UniFi (UCG-Ultra) Cloud Gateway Ultra 2.5GbE x1 / 1GbE...
Ubiquiti UniFi (UCG-Fiber) 10G Cloud Gateway Fiber (SSD Tray not...
Ubiquiti UniFi (UDR7) Dream Router 7 10G Cloud Gateway with NVR...
Ubiquiti UniFi (UDM-PRO) Dream Machine Pro 10G Cloud Gateway with...
Ubiquiti UniFi (UX7) Express 7 10G Cloud Gateway WiFi 7 Tir-Band...
Grandstream GWN7003 Multi-WAN Gigabit VPN Router 2.5G SFP x2 / 1GbE x7 / 1GbE PoE x2
- Brand: Grandstream
- MPN: GWN7003
- Part #: IPHGSM403300
Product URL: https://www.pbtech.co.nz/product/IPHGSM403300/Grandstream-GWN7003-Multi-WAN-Gigabit-VPN-Router-2?is-review=1
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 12 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
The Grandstream GWN7003 is a Multi-WAN Gigabit VPN router with built-in firewalls that allow businesses to build comprehensive wired, wireless and VPN networks for one or many locations.
It offers high-performance routing and switching power along with built-in VPN support for secure in-office and inter-office connectivity. To provide enterprise-grade security protection and ensure stable network operation, the GWN7003 features a built-in firewall with advanced content security, filtering, threat detection, attack prevention and more. To maximize network reliability, they support traffic load balancing, failover and bandwidth management capabilities.
The GWN7003 include 2 Gigabit SFP ports, 9 Gigabit ethernet ports, and 2 PoE output ports that allow them to provide power to other endpoints. These routers can manage themselves and up to 150 Grandstream GWN Series Wi-Fi APs thanks to an embedded controller located in the products' web user interface. These routers can also be managed with GWN.Cloud and GWN Manager, Grandstream's free cloud and on-premise network management tools.
By providing high-performance routing, VPN support, powerful security protection and easy-to-use network management tools, the GWN Gigabit VPN routers are ideal for a wide variety of deployments including small-to- medium businesses, retail, education, hospitality, healthcare and more.
- 1x GbE RJ45 port with IEEE 802.3af/at PoE Input and 2x GbE RJ45 ports with 48V Passive PoE output or IEEE802.3af
- Supports multiple Gigabit RJ45 ports and Gigabit SFP ports
- Built-in VPN support allows easy access to corporate networks for remote employees
- Multiple WAN ports with load balancing and failover to maximize connection reliability
- Rich firewall features including DDNS, port forwarding, DMZ, UPnP, Anti-Dos, traffic rules, NAT and ALG
- Supports application/protocol monitoring and traffic statistics with Deep Packet Inspection (DPI)
- Advanced QoS to ensure real-time performance of low-latency applications
- Supports application, URL,DNS, and web content filtering to block access from unsecure contents
- Embedded controller can manage itself and up to 150 GWN APs; GWN.Cloud offers a free cloud management platform for unlimited routers and GWN APs
- Supports TURN service with IP PBX to quickly achieve NAT traversal
Specifications
CPU
Dual ARM Cortex A53 1GHz
Memory and NAT Sessions
512MB RAM, 256MB Flash, 60K NAT sessions
Network Interfaces
2x Gigabit SFP ports and 9x Gigabit Ethernet ports (All ports are WAN/LAN configurable)
NAT Throughput
2.2Gbps
IPsec VPN Throughput
530Mbps
Auxiliary Ports
1x USB 2.0 port, 1x Reset Pinhole
Mounting
Desktop and wall mounting
LEDs
13x single-color LEDs for device tracking and status indication
Connection Type
DHCP, Static IP, PPPoE, PPTP, L2TP
Network Protocols
IPv4, IPv6, IEEE802.1Q,IEEE 802.1p, IEEE802.1x, IEEE802.3, IEEE 802.3u, IEEE 802.3x,IEEE802.3ab
QoS
VLAN, TOS
Support multiple traffic classes, filter by port, IP address, DSCP, and policing
App Qos
VoIP Prioritization
Firewall
DDNS, Port Forwarding, DMZ, UPnP, Anti-DoS, traffic rules, NAT, ALG
Security
Application/protocol monitoring and traffic statistics
Content filtering: Supports Application/URL/DNS/Web Content Filtering
Safe Search
VPN
SSL VPN Server / Client-to-Site
IPsec VPN Client-to-Site / Site-to-Site
PPTP VPN Server / Clien-to-Site
L2TP Client-to-Site
WireGuard (pending)
IPSec Encryption: DES, 3DES, AES
IPSec Authentication: MD5, SHA-1, SHA2-256
IPSec Key Exchange: Main/Aggressive Mode, Pre-shared Key, DH Groups 1/2/5/14
IPSec Protocols: ESP
IPSec NAT Traversal
SSL VPN Encryption: AES, DES
SSL Authentication: MD5, SHA-1, SHA2-256, SHA2-384, SHA2-512
SSL VPN Certificate: RSA
PPTP Encrpytion: MPPE 40-bit, 128-bit, IPSec
PPTP/L2TP Authentication: MS-CHAPv1/2
Max Concurrent VPN Tunnels
Up to 100 Tunnels
Network Management
GWN7003 embedded controller can manage itself and up to 150 GWN APs
PoE Input
Standard: IEEE 802.3af/at
PoE Output
2x PoE out ports, Passive 48V or IEEE802.3af
PoE Power Budget
24V DC 1A: 12.8W
24V DC 1.5A: 24.8W
Power & Green Energy Efficiency
Universal power adaptor included
Input: 100-240VAC 50-60Hz
Output: 24V DC 1A (24W)
Dimensions
260mm(L) x 149.35mm(W) x 35mm(H)
Weight
1096g
