Qbic TD-1060 Slim Qbic 10.1 Smart Panel PC, Full HD IPS Display
Qbic TD-1060 Slim Qbic 10.1 Smart Panel PC, Full HD IPS Display
- Brand: Qbic
- MPN: TD-1060 Slim
- Part #: IPHQBC1060
- UPC:
- Brand: Qbic
- MPN: TD-1060 Slim
- Part #: IPHQBC1060
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Business Phone Accessories





Qbic TD-1060 Slim Qbic 10.1 Smart Panel PC, Full HD IPS Display
- Brand: Qbic
- MPN: TD-1060 Slim
- Part #: IPHQBC1060

Product URL: https://www.pbtech.co.nz/product/IPHQBC1060/Qbic-TD-1060-Slim-Qbic-101-Smart-Panel-PC-Full-HD
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

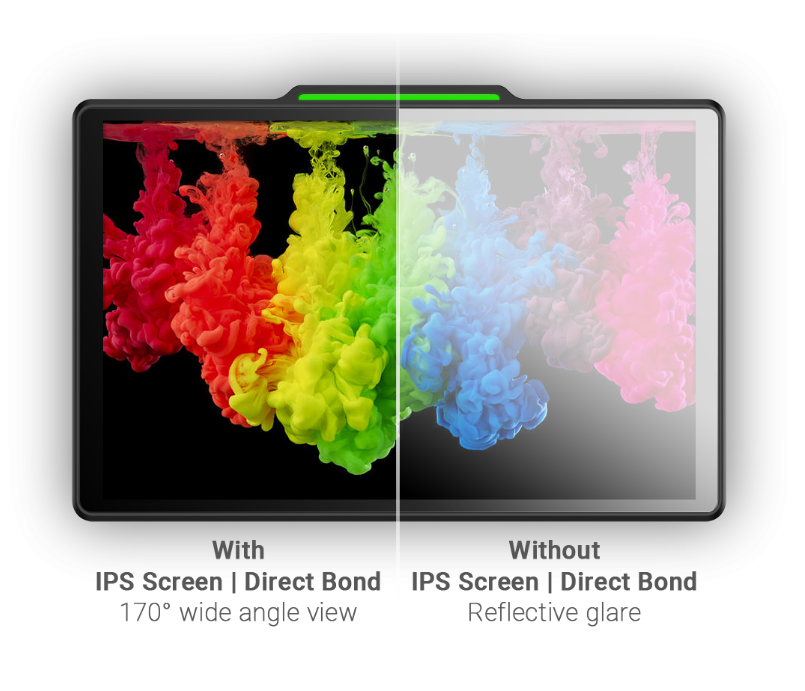

Unlock a World of Vibrant Visuals
Immerse yourself in stunning visuals with the IPS screen, designed to bring your room booking experience to life. With a wide viewing angle of 170 degrees, the display offers the perfect blend of elegance and functionality. The direct bonding technology ensures that you get vibrant and true-to-life colors, making it a treat for your eyes.
A Sleek, Small Form Factor Solution
Step into the future of room booking with our sleek and unobtrusive device. Its minimalist design and small form factor make it a perfect fit for any modern space, while its discreet mounting allows for seamless integration without compromising the room's aesthetic. Don't be fooled by its size - this little device packs a big punch when it comes to effortless room booking, all while maintaining the sophisticated vibe of your space.

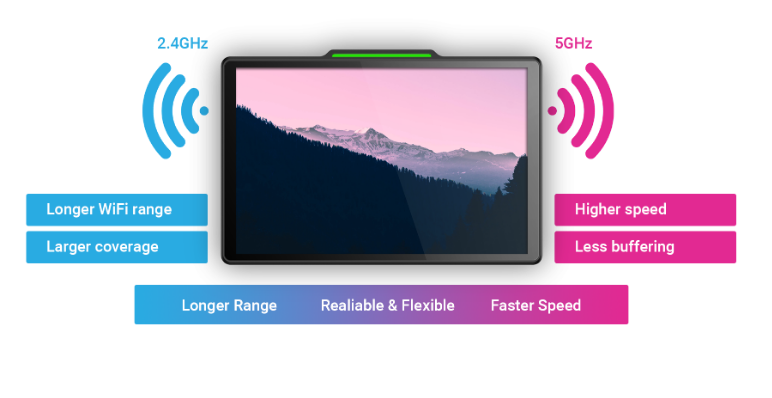

Take Your Connectivity to New Heights
With TD-1060 slim, you won't just stay connected, you'll soar. Our room booking device boasts a dual band wifi system that will transport you into a realm of high-speed internet that you've only dreamt of. Say goodbye to frustrating buffering and endless loading times with our 2.4GHz and 5GHz frequencies that provide seamless connectivity and give you the freedom to book your space, your way.

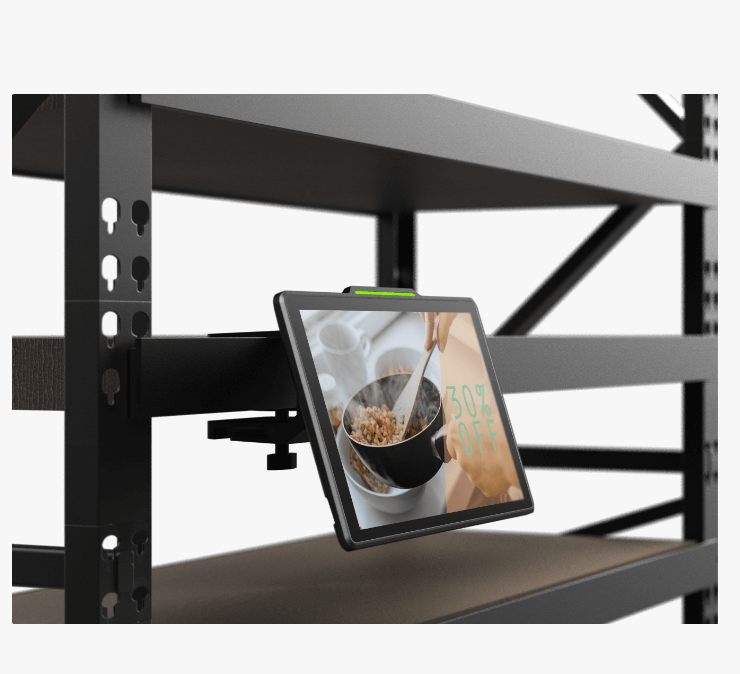

Versatile for Multiple Scenarios
The TD-1060 Slim is a versatile device that can be mounted on virtually any surface. With the added option of a multi-angle counter-top stand, you have the freedom to integrate this smart panel-PC into any setting, making it the perfect choice for room booking, concierge services, digital signage, HMI, and even central control systems. Imagine the endless possibilities for streamlining your business operations with this sleek and sophisticated device!

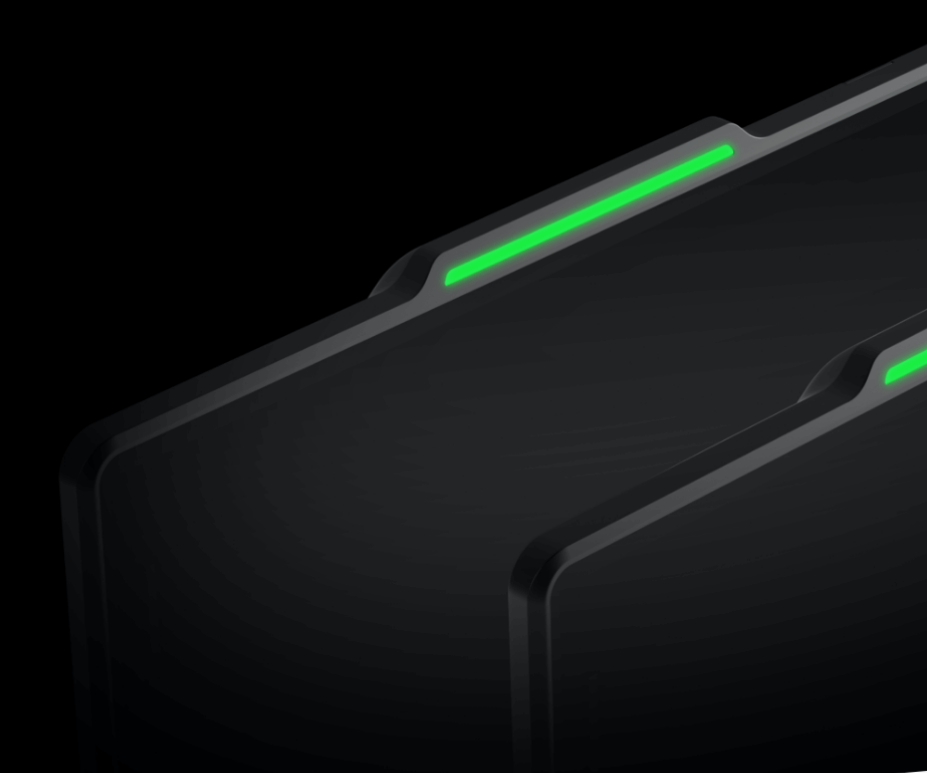

Programmable LED lights
The TD-1060 Slim is equipped with a vibrant programmable LED light bar. The true color spectrum lets you decide what colors to use and define your own status representation.
Discrete Cable Outlets
The TD-1060 Slim is designed for landscape or portrait installation with a well thought of cable management.

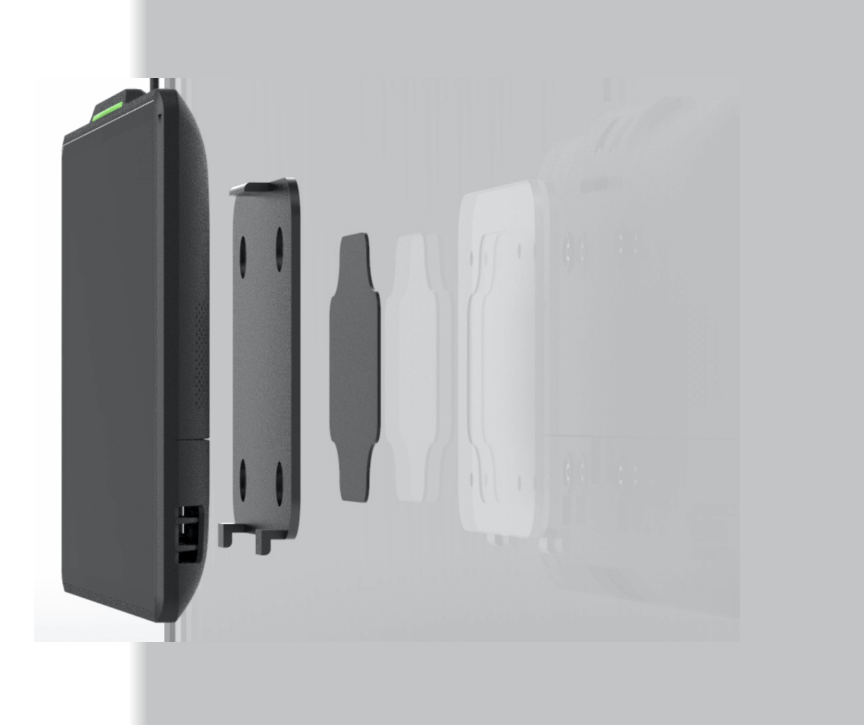

Mount to Glass
A damage-free surface mount allows a clean installation on glass surfaces that leaves no scratches or damages to the mounting surface.
Specifications
Features
Programming API
HTML5 / SMIL / Android API
PoE+
Yes
Bluetooth
Yes, BLE Beacon (Optional)
Light Bar
Front LED
System
OS
Android 12
CPU
ARM Quad-Core 1.5Ghz (64 Bit)
Memory
2GB DDR3L
Storage
16GB eMMC
Video Decoder
H.264 / H.265,VC-1, MPEG-4, VP8
Image Codecs
JPEG/BMP/GIF/PNG
Audio Codecs
MPEG/OGG/ACC
Media
Speaker
2W X 2
Display
Size (Inch)
10.1"
Display Resolution
1280 X 800 (16:10)
Brightness
350 Nits
Contrast Ratio
1000:1
Touch
Yes (Multi-Touch)
Viewing Angle (H/V)
170° / 170°
Orientation Display
Landscape / Portrait
I/O Interface
Ethernet
1 x RJ45 (10M/100M)
DC Input
Yes
USB 2.0
2 x USB2.0 type A
Audio out/microphone combo jack
1 x 3.5mm stereo (TRRS Type OMTP)
ADB
1 x Micro USB (ADB)
Storage Expansion
1 x Micro SDHC slot (Support up to 128Gb)
Reset Button
Yes
Power Button
Yes
Connectivity
WLAN
WLAN 802.11B/G/N/AC (Optional)
Power
Input Voltage (V) : DC 12V
DC 12V
Mechanical
Dimensions (WxDxH) (mm / inch)
248 x 166 x 20.8 (mm) / 9.76 x 6.54 x 0.82 (inch)
Net. Weight (Gm / Lb)
615g / 1.375Ibs
Mounting Type
Glass / Surface
Material
Plastic
Environmental
Operating Temperature (°C /°F)
0~50°C (32°F to 122°F)
Storage Temperature (package included) (°C /°F)
-20°C to 70°C (-4°F to 158°F)
Ambient Relative Humidity
10% to 90% (non-condensing)
Certification & Safety
Certification
CE / FCC / BSMI / NCC / IMDA / RoHS
