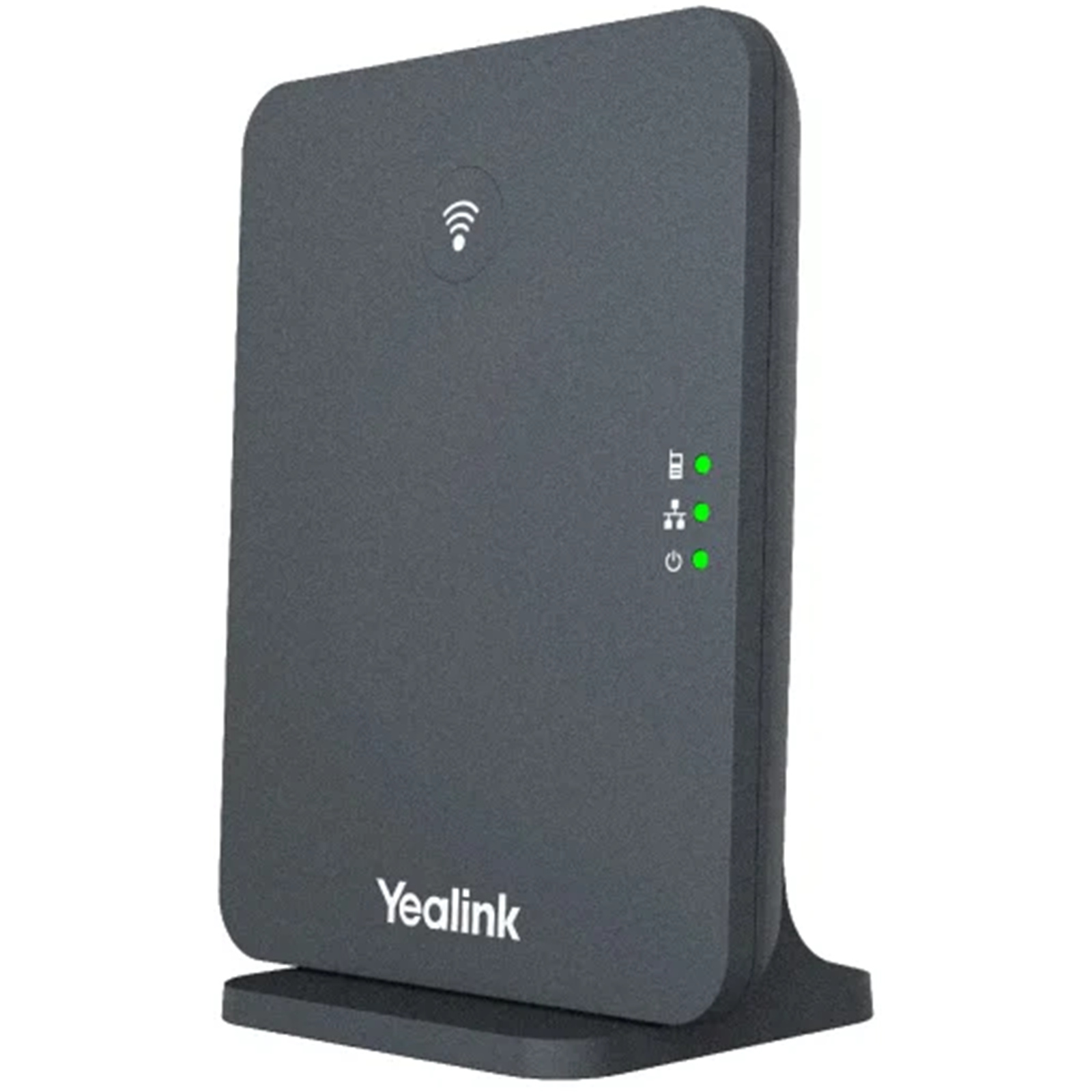

Yealink W70B DECT IP Base Station
Out of stock
- Brand: Yealink
- MPN: W70B
- Part #: IPHYLK5274427
- UPC: 841885106049
Similar in-stock products available at PB Tech right now
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular DECT Phones
Yealink W70B DECT IP Base Station
- Brand: Yealink
- MPN: W70B
- Part #: IPHYLK5274427
- UPC:841885106049
Product URL: https://www.pbtech.co.nz/product/IPHYLK5274427/Yealink-W70B-DECT-IP-Base-Station
Branch | New Stock | On Display |
---|---|---|
Albany | 0 | |
Glenfield | 0 | |
Queen Street | 0 | |
Auckland Uni | 0 | |
Newmarket | 0 | |
Westgate | 0 | |
Penrose | 0 | |
Henderson (Express) | 0 | |
St Lukes | 0 | |
Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Head Office | 0 | |
Hornby | 0 | |
Christchurch Central | 0 |
Features
Yealink W70B DECT IP Base Station
The Yealink W70B is an IP DECT base station for small and medium-sized businesses. Paring with up to a total of 10 Yealink W73H, W59R, W53H* or W56H* (due to the performance of the handset only the W73H and W59R supports no perception upgrade) DECT handsets, the W70B allows you to enjoy superb mobility and efficient flexibility as well as significantly eliminates additional wiring troubles and charges. A powerful chipset ensures a better and higher performance, this IP DECT base station not only supports up to 10 VoIP accounts and 20 simultaneous calls but also speeds up its start-up and signal connection time, provides no perception upgrade, and slashes its upgrade downtime as well.
Download data sheet: https://www.yealink.com/upfiles/products/datasheet/Yealink-W70B-Datasheet.pdf
Specifications
Phone Features
Up to 20 simultaneous calls
Up to 10 handsets
Up to 10 SIP accounts
Up to 6 repeaters per base station (RT30)
No Perception Upgrade
Paging/Intercom/Auto answer/Dial plan
Call hold/Call transfer/Call waiting
3-way conference
Switching between calls
Mute/Silence/DND
Caller ID with name and number
Anonymous call/Anonymous call rejection
Call forward: Always/Busy/No Answer
Speed dial/Voicemail/Redial
Message Waiting Indication (MWI)
Music on hold (server-based)
Local phonebook for up to 1000 entries (store in the base)
Remote phonebook/LDAP/XML phonebook
Phonebook search/import/export
Call history: All/Missed/Placed/Received
Direct IP call without SIP proxy
Reset to factory, reboot
Emergency call
Broadsoft directory, BroadSoft call log
Broadworks feature key synchronization
Shared Call Appearance (SCA)
Action URI
XML browser
Management
Auto-provision via TFTP/FTP/HTTP/HTTPS/RPS
Auto-provision with PnP
Handset upgrade: OTA (Over-The-Air)/No Perception
Configuration: browser/phone/auto-provision
Trace package and system log export
Audio Features
Full-duplex speakerphone
Hearing Aid Compatibility (HAC) compliant
FNR (Flexible Noise Reduction)/Noise Cancellation
Wideband codec: Opus, AMR-WB (optional), G.722
Narrowband codec: PCMU, PCMA, G.726, G.729, G.729A, iLBC
VAD, CNG, AGC, PLC, AJB
AEC (supported by W53H)
Support VQ-RTCPXR (RFC6035), RTCP-XR
Network Features
SIP v1 (RFC2543), v2 (RFC3261)
SNTP/NTP
VLAN (802.1Q and 802.1P)
802.1x, LLDP
STUN Client (NAT Traversal)
UDP/TCP/TLS
IP assignment: Static/DHCP
Support outbound proxy server backup
Security
Open VPN
Transport Layer Security (TLS)
HTTPS (server/client), SRTP (RFC3711)
Digest authentication
Secure configuration file via AES encryption
Support SHA256/SHA512/SHA384
Three-level configuration mode: Admin/Var/User
DECT
Frequency bands: 1880 - 1900 MHz (Europe), 1920 - 1930 MHz (US)
DECT Standards: CAT-iq2.0
Interface
1 x RJ45 10/100M Ethernet port
Power over Ethernet (IEEE 802.3af), Class 1
Physical Features
Indoor Range: 50m (in ideal conditions)
Outdoor Range: 300m (in ideal conditions)
Desktop or wall mountable
Energy-saving ECO mode/ECO Mode+
Three LED indicators on W70B:
- 1 x Registration LED
- 1 x Network Status LED
- 1 x Power Indicator LED
External Yealink AC adapter:
AC 100-240V Input and DC 5V/600mA Output
Color:Classic Grey
Base station size: 130mm x 100mm x 25.1mm
Operating humidity: 10 ~ 95%
Operating temperature: 0 ~ +40°C (+32~104°F)
Package Features
Package contents:
- W70B Base Station
- Base Stand
- Power Adapter
- Ethernet Cable
- Quick Start Guide
Qty/CNT: 10 PCS
Giftbox size: 375mm × 336mm × 187mm
Carton meas: 174mm × 180mm × 63mm
N.W: 3.612Kg
G.W: 4.146Kg
