Yealink CS10 Low-Profile 2-Way Coaxial Ceiling Loudspeaker
Yealink CS10 Low-Profile 2-Way Coaxial Ceiling Loudspeaker
- Brand: Yealink
- MPN: CS10
- Part #: IPHYLK6160596
- UPC: 841885120793
- Brand: Yealink
- MPN: CS10
- Part #: IPHYLK6160596
- UPC: 841885120793
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular VC Peripherals





Yealink CS10 Low-Profile 2-Way Coaxial Ceiling Loudspeaker
- Brand: Yealink
- MPN: CS10
- Part #: IPHYLK6160596
- UPC:841885120793

Product URL: https://www.pbtech.co.nz/product/IPHYLK6160596/Yealink-SkySound-CS10-Low-Profile-2-Way-Coaxial-Ce
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 2 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
Practical and Aesthetic Integration

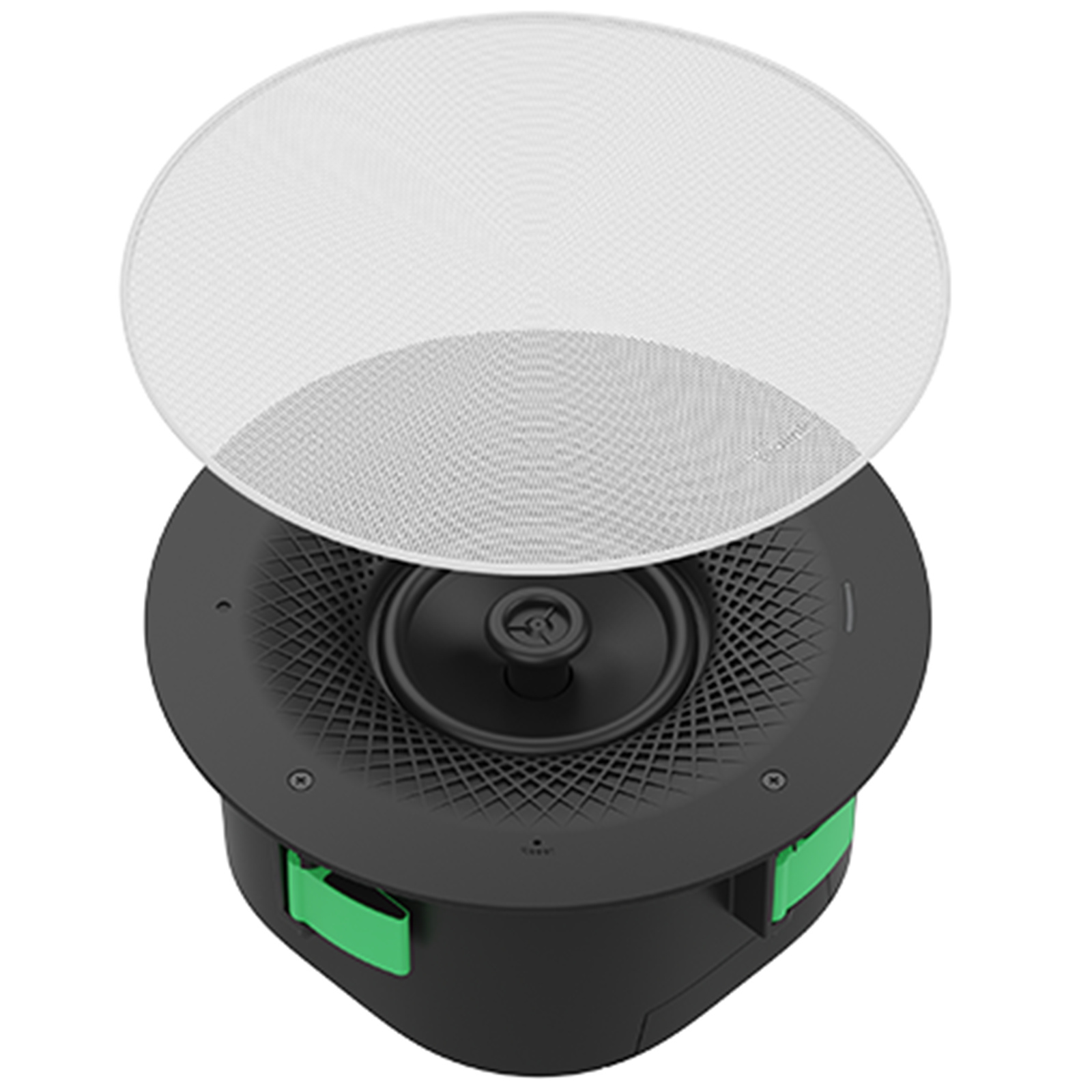

The Yealink CS10, available in black and white, features a low-profile (120mm depth) 2-way coaxial design and a removable magnetic suction mesh cover*. The CS10 blends high-quality audio with an elegant, minimalist design, making it a perfect match for contemporary conference rooms.
Specially Designed for Conference Space
The CS10 boasts impressive acoustic parameters, which ensures an unparalleled level of sonic excellence, while its EQ calibration is specifically tailored to accentuate the utmost quality of human vocals. It seamlessly combines active speaker functionality with an integrated DAC and PoE technology, allowing for swift digital signal processing from the network for a hassle-free setup and minimal latency.
Video Conferencing Perfected
CS10 was tuned the sound profile for video conference first. It emphasized the mid-range of frequency response that improves sound performance in human voice.
Versatile Adaptability

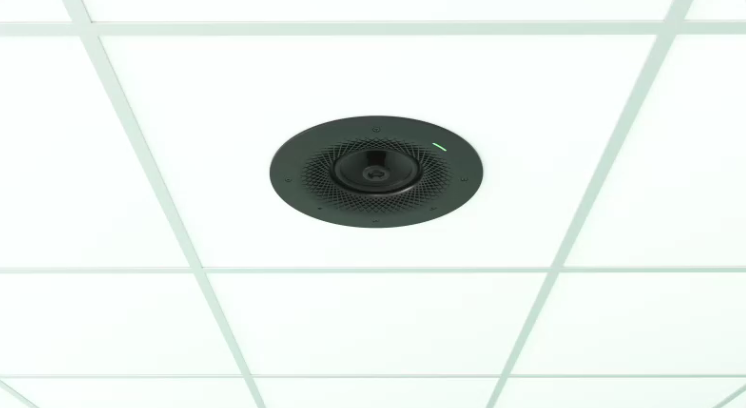

Yealink CS10 provides flexible indoor installation solutions, ensuring compatibility with various ceiling types.
Specifications
Package Content
CS10 Speaker
White Mesh Cover (Black Optional)
Quick Start Guide
Assembly Fixing Bracket
Dust Cover
Deployment Instruction Template
Bracing Bridge
Dust Cover Screw × 6 (M3 × 4CMHOZN3)
Audio Specifications
Frequency Response (-6dB)
100-20kHz
Maximum SPL
Continuous: 99dB @20W 1m
Sensitivity: 88dB@1m 1W
Speaker Specification
LF
5.7 inch (145 mm) woofer
HF
1.1 inch (28 mm) tweeter
Nominal Impedance
8O
Nominal Coverage Angle
120
Product Specifications
Size
- ?294 × H125.8mm (with cover mesh)
- ?287.2 × H125mm (without cover mesh)
Weight
- 2808g (without cover mesh);
- 207g (Cover mesh)
Product Color
white/black
Cover Mesh Color
white/black
Product Materials
- Cover Mesh: PC/ABS Welded SPCC
- Main Body Shell: PA (Polyamide) with 15% GF
- Bottom Shell: aluminum alloy
- Cover Plate: PC/ABS and SGCC
Physical Specifications
Operating Temperature
0-50°C
Storage Temperature
0-50°C
Operating Humidity
5%~90%
Rated Power
24W (20W typical power)
Power Supply
PoE+ (IEEE 802.3at class 4)
Interface
1 × RJ-45
